DORMER B630N8 HSS Reamers

Description

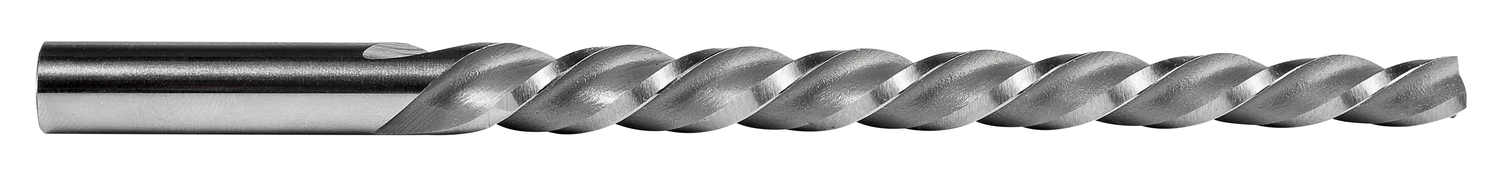

Taper pin machine reamer with left hand fast spiral flutes and a cylindrical shank, large end diameter 0.5050″ with an overall length of 7.3/16″, a flute length of 5.3/16″ and 0.3971 small end diameter, manufactured in accordance to ANSI B94.2-1983(R1988) standards for reaming tapered pin holes with a 1:48 taper into which standard number 8 taper pins (per ASA B5.20-1958) will fit, HSS with bright finish for machining free machining and plain carbon steel, grey and malleable cast-iron, wrought and cast aluminium and copper or copper alloys

Additional information

Weight	0.4356 kg
Dimensions
barcode
Additional Information	Description: Value EAN number: 3603607003947 Product number (SAP): 86040917 Ordering code ANSI: B630N8 Product name: B630N8 Nominal diameter: 8 Gross weight – grams: 120 Connection diameter – fractional inch (DCON MS): 7/16 Connection diameter – millimeter (DCON MS): 11.11 mm Cutting diameter – inch (DC): 0.3971 inch Cutting diameter – millimeter (DC): 10.09 mm Length chip flute – millimeter (LCF): 131.76 mm Flute count (NOF): 3 Overall length – fractional inch (OAL): 7.3/16 Overall length – millimeter (OAL): 182.56 mm ISO: B630N8 Cutting edge length – fractional inch (L): 5.3/16
