DORMER B64013/16 HSS Reamers

Product Code: B64013/16

$512.12$465.56 Ex. GST

Product Code: B64013/16 SKU B64013/16 Categories , ,
DORMER B64013/16 HSS Reamers

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

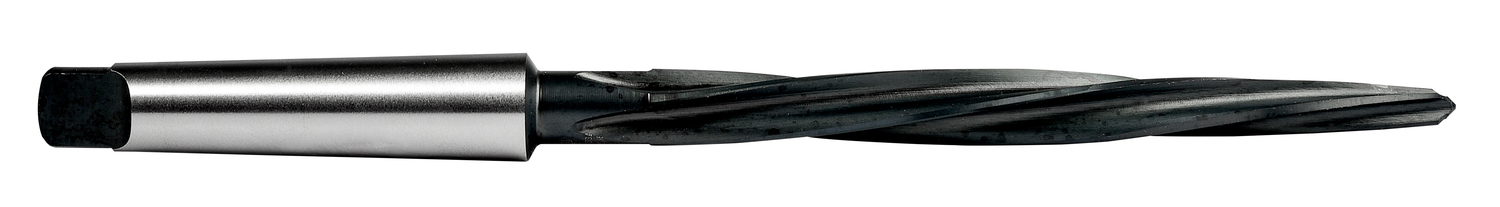

Bridge reamer with left hand slow spiral flutes and a Morse taper shank, nominal diameter 13/16″ with an overall length of 12″ and a flute length of 7.3/8″, manufactured in accordance to ANSI B94.2-1983(R1988) standards for reaming precise holes, HSS with bright finish for machining free machining, plain carbon and alloy steel, grey and malleable cast-iron, wrought and cast aluminium and copper or copper alloys

Additional information

Weight 0.4972 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 3603607003657
Product number (SAP): 86040888
Ordering code ANSI: B64013/16
Product name: B64013/16
Nominal diameter: 13/16
Gross weight – grams: 566
Connection size code machine side (CZC MS): 3
Cutting diameter maximum – fractional inch (DCX): 13/16
Cutting diameter minimum – fractional inch (DCN): 1/2
Length chip flute – millimeter (LCF): 187.33 mm
Flute count (NOF): 5
Overall length – fractional inch (OAL): 12"
Overall length – millimeter (OAL): 304.8 mm
ISO: B64013/16
Cutting edge length – fractional inch (L): 7.3/8

Brand

DORMER
