DORMER B6403/4 HSS Reamers

Description

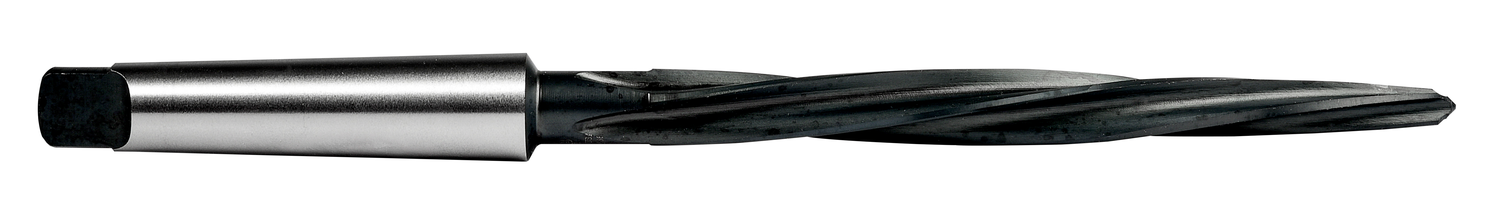

Bridge reamer with left hand slow spiral flutes and a Morse taper shank, nominal diameter 3/4″ with an overall length of 12″ and a flute length of 7.3/8″, manufactured in accordance to ANSI B94.2-1983(R1988) standards for reaming precise holes, HSS with bright finish for machining free machining, plain carbon and alloy steel, grey and malleable cast-iron, wrought and cast aluminium and copper or copper alloys

Additional information

Weight	0.4829 kg
Dimensions
barcode
Additional Information	Description: Value EAN number: 3603607003640 Product number (SAP): 86040887 Ordering code ANSI: B6403/4 Product name: B6403/4 Nominal diameter: 3/4 Gross weight – grams: 582.1 Connection size code machine side (CZC MS): 3 Cutting diameter maximum – fractional inch (DCX): 3/4 Cutting diameter minimum – fractional inch (DCN): 7/16 Length chip flute – millimeter (LCF): 187.33 mm Flute count (NOF): 5 Overall length – fractional inch (OAL): 12" Overall length – millimeter (OAL): 304.8 mm ISO: B6403/4 Cutting edge length – fractional inch (L): 7.3/8
