DORMER B6407/16 HSS Reamers

Description

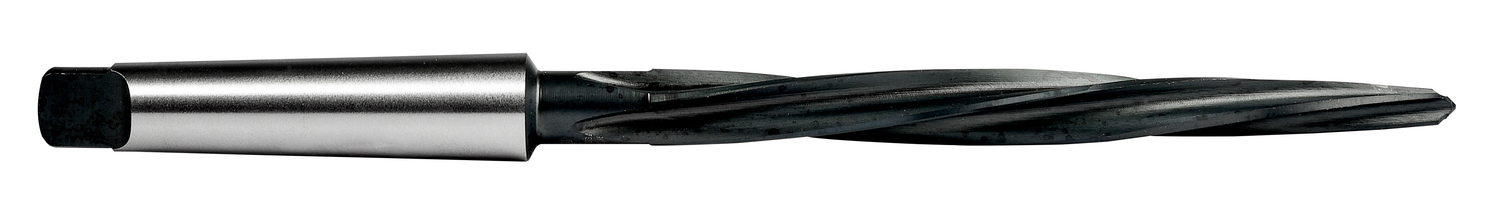

Bridge reamer with left hand slow spiral flutes and a Morse taper shank, nominal diameter 7/16″ with an overall length of 8.1/4″ and a flute length of 4.3/8″, manufactured in accordance to ANSI B94.2-1983(R1988) standards for reaming precise holes, HSS with bright finish for machining free machining, plain carbon and alloy steel, grey and malleable cast-iron, wrought and cast aluminium and copper or copper alloys

Additional information

Weight	0.308 kg
Dimensions
barcode
Additional Information	Description: Value EAN number: 3603607003596 Product number (SAP): 86040882 Ordering code ANSI: B6407/16 Product name: B6407/16 Nominal diameter: 7/16 Gross weight – grams: 182.2 Connection size code machine side (CZC MS): 2 Cutting diameter maximum – fractional inch (DCX): 7/16 Cutting diameter minimum – fractional inch (DCN): 1/4 Length chip flute – millimeter (LCF): 111.13 mm Flute count (NOF): 5 Overall length – fractional inch (OAL): 8.1/4 Overall length – millimeter (OAL): 209.55 mm ISO: B6407/16 Cutting edge length – fractional inch (L): 4.3/8
