DORMER B6501/8 HSS Reamers

Description

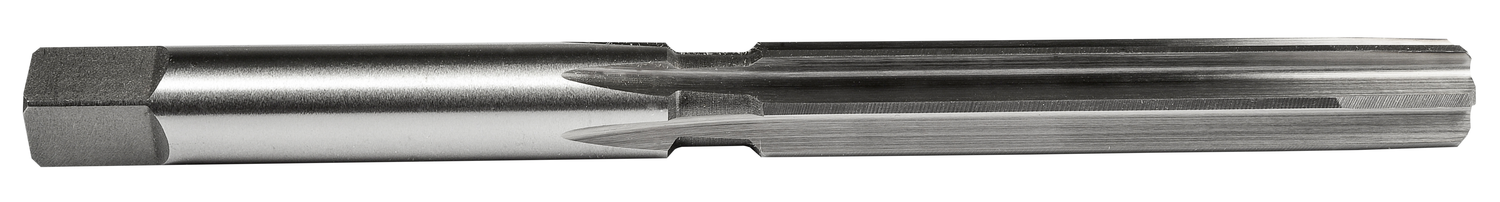

Hand reamer with straight flutes and a square drive, diameter 0.1250″ (1/8″) with an overall length of 3″ and a flute length of 1.1/2″, manufactured in accordance to ANSI B94.2-1983(R1988) standards for reaming precise holes, HSS with bright finish for machining free machining and plain carbon steel, grey and malleable cast-iron, wrought and cast aluminium and copper or copper alloys

Additional information

Weight	0.2123 kg
Dimensions
barcode
Additional Information	Description: Value EAN number: 3603607001387 Product number (SAP): 86040661 Ordering code ANSI: B6501/8 Product name: B6501/8 Gross weight – grams: 6 Connection diameter – millimeter (DCON MS): 3.18 mm Cutting diameter – fractional inch (DC): 1/8 Cutting diameter – inch (DC): 0.125 inch Cutting diameter – millimeter (DC): 3.18 mm Length chip flute – millimeter (LCF): 38.1 mm Flute count (NOF): 6 Overall length – fractional inch (OAL): 3" Overall length – millimeter (OAL): 76.2 mm ISO: B6501/8 Cutting edge length – fractional inch (L): 1.1/2

Need Technical Advice?

Description

Additional information

Brand

DORMER
