DORMER B6503/16 HSS Reamers

Description

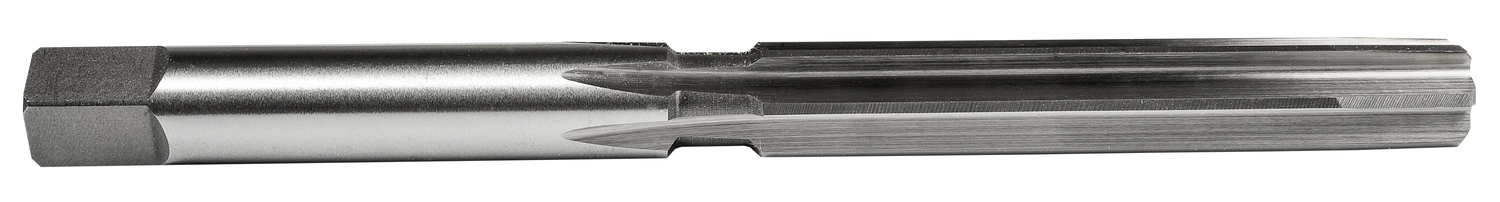

Hand reamer with straight flutes and a square drive, diameter 0.1875″ (3/16″) with an overall length of 3.1/2″ and a flute length of 1.3/4″, manufactured in accordance to ANSI B94.2-1983(R1988) standards for reaming precise holes, HSS with bright finish for machining free machining and plain carbon steel, grey and malleable cast-iron, wrought and cast aluminium and copper or copper alloys

Additional information

Weight	0.2123 kg
Dimensions
barcode
Additional Information	Description: Value EAN number: 3603607001394 Product number (SAP): 86040662 Ordering code ANSI: B6503/16 Product name: B6503/16 Gross weight – grams: 12 Connection diameter – millimeter (DCON MS): 4.76 mm Cutting diameter – fractional inch (DC): 3/16 Cutting diameter – inch (DC): 0.1875 inch Cutting diameter – millimeter (DC): 4.76 mm Length chip flute – millimeter (LCF): 44.45 mm Flute count (NOF): 6 Overall length – fractional inch (OAL): 3.1/2 Overall length – millimeter (OAL): 88.9 mm ISO: B6503/16 Cutting edge length – fractional inch (L): 1.3/4

Need Technical Advice?

Description

Additional information

Brand

DORMER
