DORMER B6507/16 HSS Reamers

Description

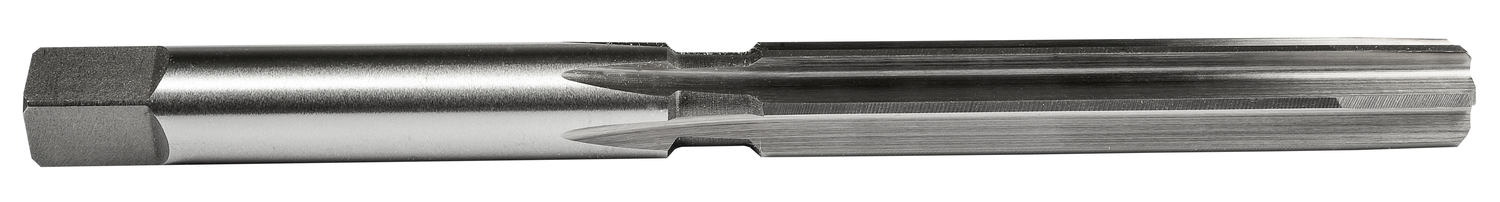

Hand reamer with straight flutes and a square drive, diameter 0.4375″ (7/16″) with an overall length of 5.1/2″ and a flute length of 2.3/4″, manufactured in accordance to ANSI B94.2-1983(R1988) standards for reaming precise holes, HSS with bright finish for machining free machining and plain carbon steel, grey and malleable cast-iron, wrought and cast aluminium and copper or copper alloys

Additional information

Weight	0.3135 kg
Dimensions
barcode
Additional Information	Description: Value EAN number: 3603607001431 Product number (SAP): 86040666 Ordering code ANSI: B6507/16 Product name: B6507/16 Gross weight – grams: 83 Connection diameter – millimeter (DCON MS): 11.11 mm Cutting diameter – fractional inch (DC): 7/16 Cutting diameter – inch (DC): 0.4375 inch Cutting diameter – millimeter (DC): 11.11 mm Length chip flute – millimeter (LCF): 69.85 mm Flute count (NOF): 6 Overall length – fractional inch (OAL): 5.1/2 Overall length – millimeter (OAL): 139.7 mm ISO: B6507/16 Cutting edge length – fractional inch (L): 2.3/4

Need Technical Advice?

Description

Additional information

Brand

DORMER
