DORMER B6507/8 HSS Reamers

Description

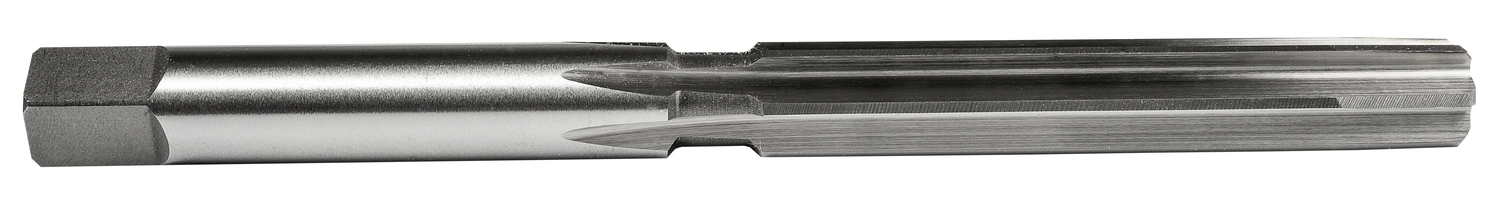

Hand reamer with straight flutes and a square drive, diameter 0.8750″ (7/8″) with an overall length of 9.3/4″ and a flute length of 4.7/8″, manufactured in accordance to ANSI B94.2-1983(R1988) standards for reaming precise holes, HSS with bright finish for machining free machining and plain carbon steel, grey and malleable cast-iron, wrought and cast aluminium and copper or copper alloys

Additional information

Weight	0.6072 kg
Dimensions
barcode
Additional Information	Description: Value EAN number: 3603607001486 Product number (SAP): 86040671 Ordering code ANSI: B6507/8 Product name: B6507/8 Gross weight – grams: 603 Connection diameter – millimeter (DCON MS): 22.23 mm Cutting diameter – fractional inch (DC): 7/8 Cutting diameter – inch (DC): 0.875 inch Cutting diameter – millimeter (DC): 22.23 mm Length chip flute – millimeter (LCF): 123.83 mm Flute count (NOF): 8 Overall length – fractional inch (OAL): 9.3/4 Overall length – millimeter (OAL): 247.65 mm ISO: B6507/8 Cutting edge length – fractional inch (L): 4.7/8

Need Technical Advice?

Description

Additional information

Brand

DORMER
