DORMER B6509/16 HSS Reamers

Description

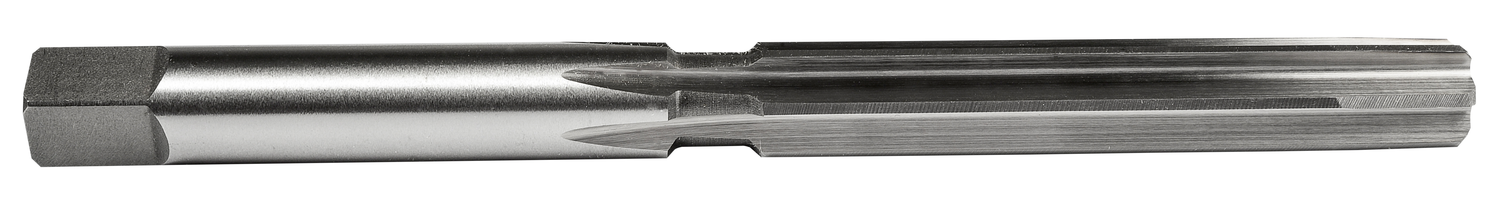

Hand reamer with straight flutes and a square drive, diameter 0.5625″ (9/16″) with an overall length of 6.1/2″ and a flute length of 3.1/4″, manufactured in accordance to ANSI B94.2-1983(R1988) standards for reaming precise holes, HSS with bright finish for machining free machining and plain carbon steel, grey and malleable cast-iron, wrought and cast aluminium and copper or copper alloys

Additional information

Weight	0.3971 kg
Dimensions
barcode
Additional Information	Description: Value EAN number: 3603607001455 Product number (SAP): 86040668 Ordering code ANSI: B6509/16 Product name: B6509/16 Gross weight – grams: 174 Connection diameter – millimeter (DCON MS): 14.29 mm Cutting diameter – fractional inch (DC): 9/16 Cutting diameter – inch (DC): 0.5625 inch Cutting diameter – millimeter (DC): 14.29 mm Length chip flute – millimeter (LCF): 82.55 mm Flute count (NOF): 8 Overall length – fractional inch (OAL): 6.1/2 Overall length – millimeter (OAL): 165.1 mm ISO: B6509/16 Cutting edge length – fractional inch (L): 3.1/4
