DORMER B670N2 HSS Reamers

Product Code: B670N2

$192.61$175.10 Ex. GST

Product Code: B670N2 SKU B670N2 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

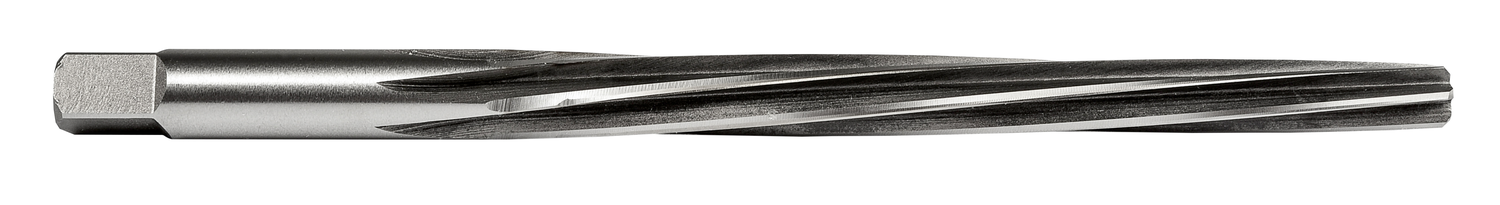

Taper pin hand reamer with left hand slow spiral flutes and a square drive, large end diameter 0.2010″ with an overall length of 3.3/16″, a flute length of 1.15/16″ and 0.1600 small end diameter, manufactured in accordance to ANSI B94.2-1983(R1988) standards for reaming tapered pin holes with a 1:48 taper into which standard number 2 taper pins (per ASA B5.20-1958) will fit, HSS with bright finish for machining free machining and plain carbon steel, grey and malleable cast-iron, wrought and cast aluminium and copper or copper alloys

Additional information

Weight 0.187 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 3603607003992
Product number (SAP): 86040922
Ordering code ANSI: B670N2
Product name: B670N2
Nominal diameter: 2
Gross weight – grams: 11.7
Connection diameter – fractional inch (DCON MS): 13/64
Connection diameter – millimeter (DCON MS): 5.16 mm
Cutting diameter – inch (DC): 0.16 inch
Cutting diameter – millimeter (DC): 4.06 mm
Length chip flute – millimeter (LCF): 49.21 mm
Flute count (NOF): 6
Overall length – fractional inch (OAL): 3.3/16
Overall length – millimeter (OAL): 80.96 mm
ISO: B670N2
Cutting edge length – fractional inch (L): 1.15/16

Brand

DORMER
