DORMER B670N8 HSS Reamers

Product Code: B670N8

$421.48$383.16 Ex. GST

Product Code: B670N8 SKU B670N8 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

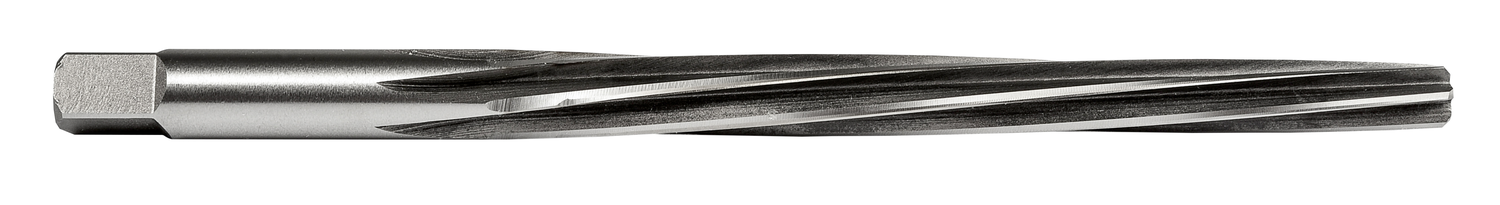

Taper pin hand reamer with left hand slow spiral flutes and a square drive, large end diameter 0.5050″ with an overall length of 7.3/16″, a flute length of 5.3/16″ and 0.3971 small end diameter, manufactured in accordance to ANSI B94.2-1983(R1988) standards for reaming tapered pin holes with a 1:48 taper into which standard number 8 taper pins (per ASA B5.20-1958) will fit, HSS with bright finish for machining free machining and plain carbon steel, grey and malleable cast-iron, wrought and cast aluminium and copper or copper alloys

Additional information

Weight 0.4092 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 3603607004050
Product number (SAP): 86040928
Ordering code ANSI: B670N8
Product name: B670N8
Nominal diameter: 8
Gross weight – grams: 95
Connection diameter – fractional inch (DCON MS): 7/16
Connection diameter – millimeter (DCON MS): 11.11 mm
Cutting diameter – inch (DC): 0.3971 inch
Cutting diameter – millimeter (DC): 10.09 mm
Length chip flute – millimeter (LCF): 131.76 mm
Flute count (NOF): 6
Overall length – fractional inch (OAL): 7.3/16
Overall length – millimeter (OAL): 182.56 mm
ISO: B670N8
Cutting edge length – fractional inch (L): 5.3/16

Brand

DORMER
