DORMER B6801/8 HSS Reamers

Product Code: B6801/8

$266.26$242.05 Ex. GST

Product Code: B6801/8 SKU B6801/8 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

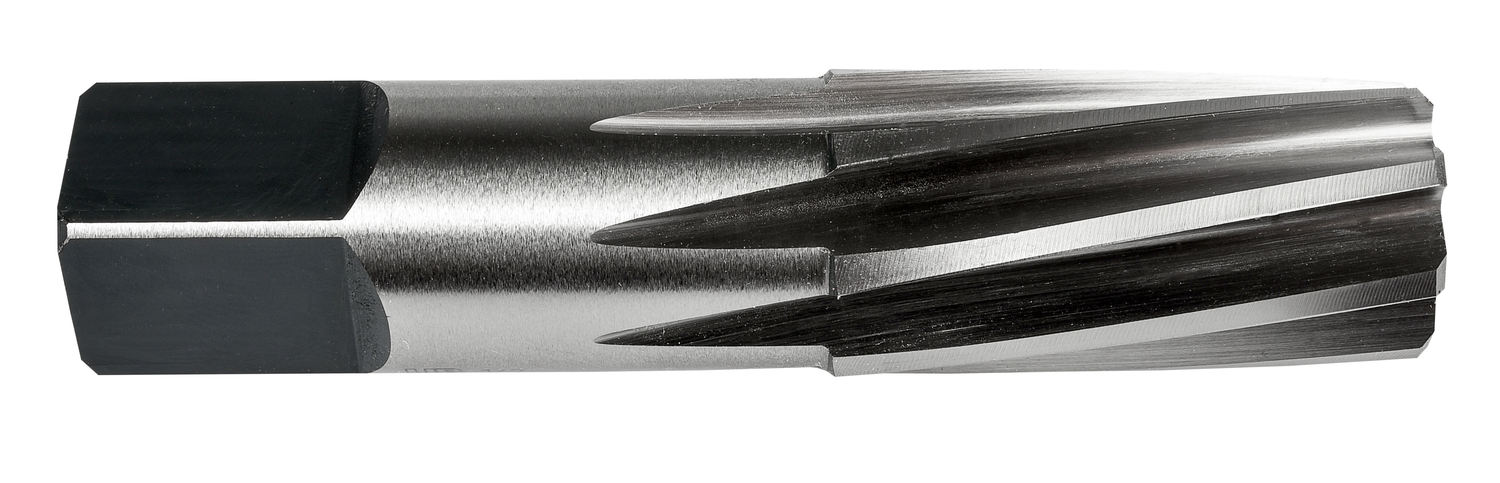

Taper pipe hand reamer with left hand slow spiral flutes and a square drive, large end diameter 0.3620″ with an overall length of 2.1/8″, a flute length of 3/4″ and 0.3160 small end diameter, manufactured in accordance to ANSI B94.2-1983(R1988) standards for reaming holes with a 1:16 taper to be tapped with 1/8″ NPT taps, HSS with bright finish for machining free machining and plain carbon steel, grey and malleable cast-iron, wrought and cast aluminium and copper or copper alloys

Additional information

Weight 0.2585 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 3603607004081
Product number (SAP): 86040931
Ordering code ANSI: B6801/8
Product name: B6801/8
Nominal diameter: 1/8
Gross weight – grams: 34
Connection diameter – millimeter (DCON MS): 11.11 mm
Cutting diameter – inch (DC): 0.316 inch
Cutting diameter – millimeter (DC): 8.03 mm
Length chip flute – millimeter (LCF): 19.05 mm
Flute count (NOF): 6
Overall length – fractional inch (OAL): 2.1/8
Overall length – millimeter (OAL): 53.98 mm
ISO: B6801/8
Cutting edge length – fractional inch (L): 3/4

Brand

DORMER
