DORMER B6801 HSS Reamers

Product Code: B6801

$891.67$810.61 Ex. GST

Product Code: B6801 SKU B6801 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

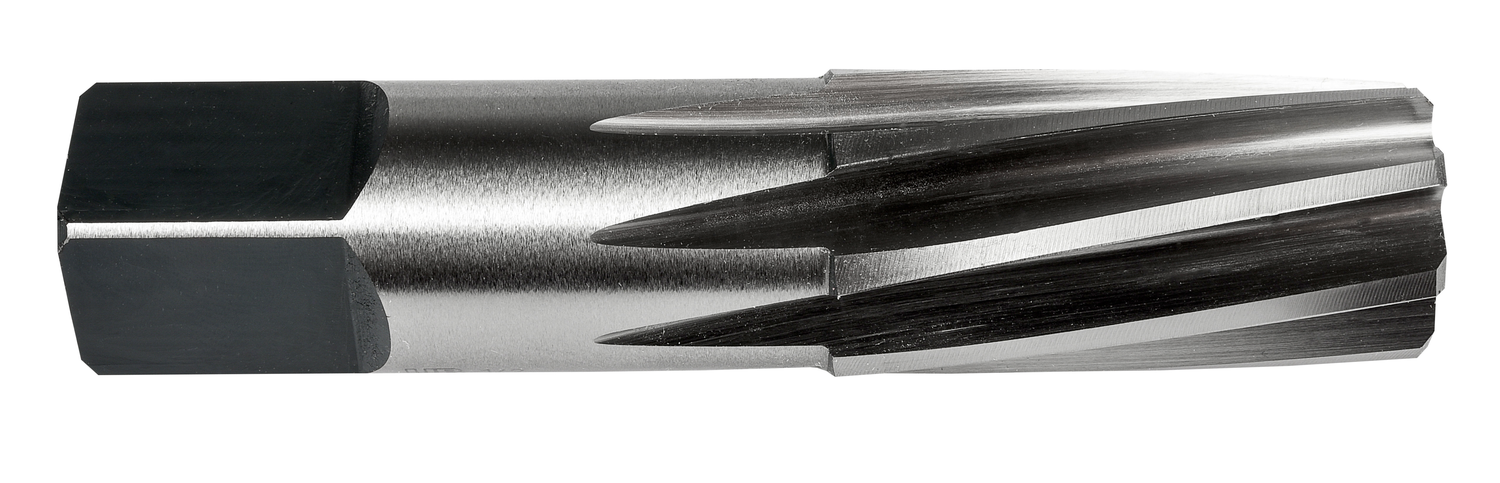

Taper pipe hand reamer with left hand slow spiral flutes and a square drive, large end diameter 1.2120″ with an overall length of 3.3/4″, a flute length of 1.3/4″ and 1.1030 small end diameter, manufactured in accordance to ANSI B94.2-1983(R1988) standards for reaming holes with a 1:16 taper to be tapped with 1″ NPT taps, HSS with bright finish for machining free machining and plain carbon steel, grey and malleable cast-iron, wrought and cast aluminium and copper or copper alloys

Additional information

Weight 0.8657 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 3603607004135
Product number (SAP): 86040936
Ordering code ANSI: B6801
Product name: B6801
Nominal diameter: 1"
Gross weight – grams: 429
Connection diameter – millimeter (DCON MS): 28.58 mm
Cutting diameter – inch (DC): 1.103 inch
Cutting diameter – millimeter (DC): 28.02 mm
Length chip flute – millimeter (LCF): 44.45 mm
Flute count (NOF): 10
Overall length – fractional inch (OAL): 3.3/4
Overall length – millimeter (OAL): 95.25 mm
ISO: B6801
Connection diameter – fractional inch (DCON MS): 1.2120
Cutting diameter – fractional inch (DC): 1.1030
Cutting edge length – fractional inch (L): 1.3/4

Brand

DORMER
