DORMER B6803/4 HSS Reamers

Product Code: B6803/4

$606.16$551.05 Ex. GST

Product Code: B6803/4 SKU B6803/4 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

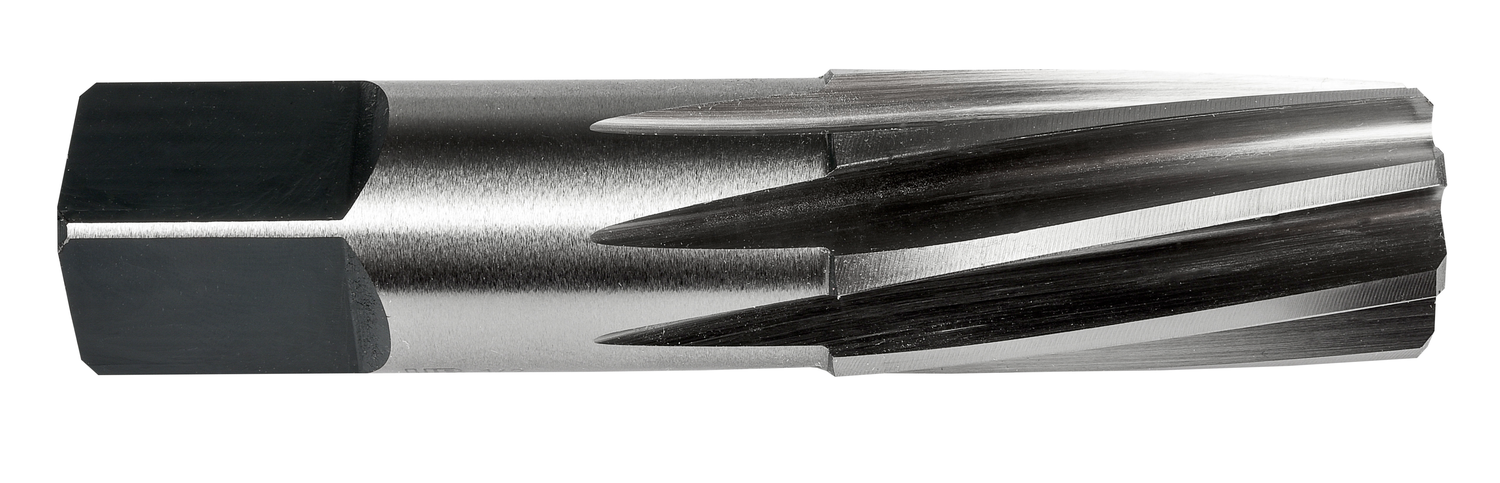

Taper pipe hand reamer with left hand slow spiral flutes and a square drive, large end diameter 0.9620″ with an overall length of 3.1/4″, a flute length of 1.3/8″ and 0.8760 small end diameter, manufactured in accordance to ANSI B94.2-1983(R1988) standards for reaming holes with a 1:16 taper to be tapped with 3/4″ NPT taps, HSS with bright finish for machining free machining and plain carbon steel, grey and malleable cast-iron, wrought and cast aluminium and copper or copper alloys

Additional information

Weight 0.5885 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 3603607004128
Product number (SAP): 86040935
Ordering code ANSI: B6803/4
Product name: B6803/4
Nominal diameter: 3/4
Gross weight – grams: 219
Connection diameter – millimeter (DCON MS): 23.02 mm
Cutting diameter – inch (DC): 0.876 inch
Cutting diameter – millimeter (DC): 22.25 mm
Length chip flute – millimeter (LCF): 34.93 mm
Flute count (NOF): 10
Overall length – fractional inch (OAL): 3.1/4
Overall length – millimeter (OAL): 82.55 mm
ISO: B6803/4
Cutting edge length – fractional inch (L): 1.3/8

Brand

DORMER
