DORMER B6803/8 HSS Reamers

Product Code: B6803/8

$339.90$309.00 Ex. GST

Product Code: B6803/8 SKU B6803/8 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

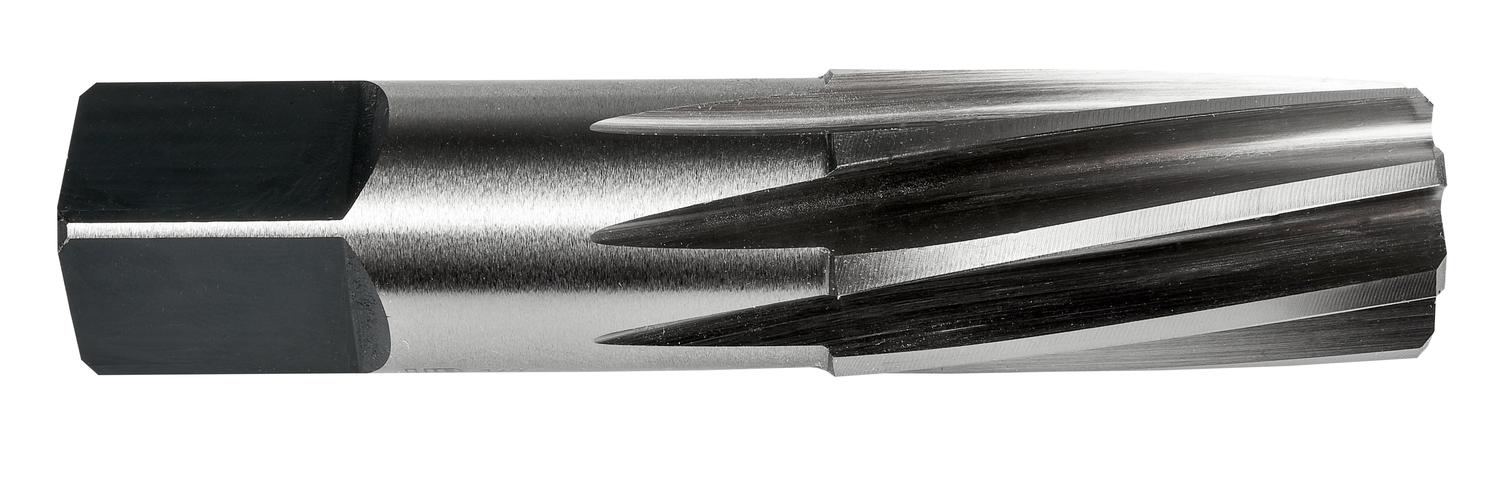

Taper pipe hand reamer with left hand slow spiral flutes and a square drive, large end diameter 0.6060″ with an overall length of 2.9/16″, a flute length of 1.1/16″ and 0.5400 small end diameter, manufactured in accordance to ANSI B94.2-1983(R1988) standards for reaming holes with a 1:16 taper to be tapped with 3/8″ NPT taps, HSS with bright finish for machining free machining and plain carbon steel, grey and malleable cast-iron, wrought and cast aluminium and copper or copper alloys

Additional information

Weight 0.33 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 3603607004104
Product number (SAP): 86040933
Ordering code ANSI: B6803/8
Product name: B6803/8
Nominal diameter: 3/8
Gross weight – grams: 90
Connection diameter – millimeter (DCON MS): 17.78 mm
Cutting diameter – inch (DC): 0.54 inch
Cutting diameter – millimeter (DC): 13.72 mm
Length chip flute – millimeter (LCF): 26.99 mm
Flute count (NOF): 8
Overall length – fractional inch (OAL): 2.9/16
Overall length – millimeter (OAL): 65.09 mm
ISO: B6803/8
Cutting edge length – fractional inch (L): 1.1/16
