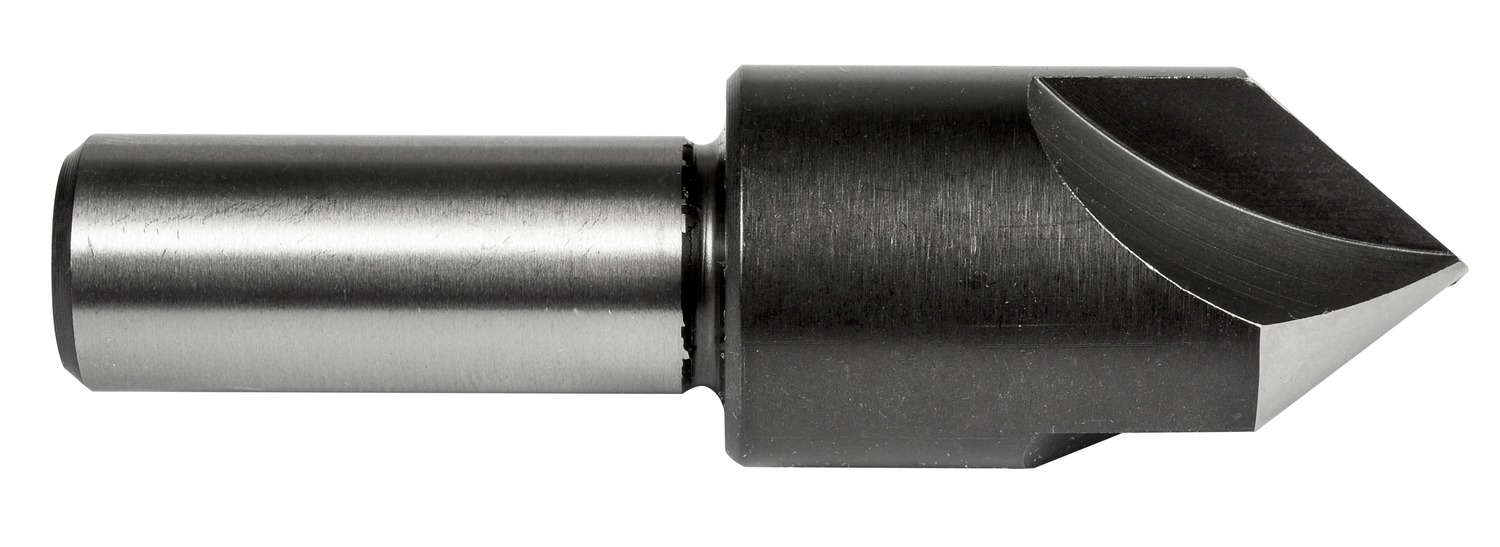

DORMER B6901/4X60 HSS Reamers

Description

Center Reamer with 3-flutes, 60° countersink angle, maximum diameter 1/4″ with an overall length of 1.1/2″ and a head length of 3/4″ and 3/16″ straight shank, manufactured in accordance to ANSI B94.2-1983(R1988) standards for finish reaming countersunk holes, HSS with standard bright finish for machining free machining and plain carbon steel, wrought and copper or copper alloys

Additional information

Weight	0.0622 kg
Dimensions
barcode
Additional Information	Description: Value EAN number: 3603607004142 Product number (SAP): 86040937 Ordering code ANSI: B6901/4X60 Product name: B6901/4X60 Gross weight – grams: 10 Connection diameter – fractional inch (DCON MS): 3/16 Connection diameter – millimeter (DCON MS): 4.76 mm Cutting diameter – fractional inch (DC): 1/4 Cutting diameter – inch (DC): 0.25 inch Cutting diameter – millimeter (DC): 6.35 mm Flute count (NOF): 3 Overall length – fractional inch (OAL): 1.1/2 Overall length – millimeter (OAL): 38.1 mm ISO: B6901/4X60 Functional length – fractional inch (LF): 3/4
