DORMER B6903/4X82 HSS Reamers

Product Code: B6903/4X82

$185.81$168.92 Ex. GST

Product Code: B6903/4X82 SKU B6903/4X82 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

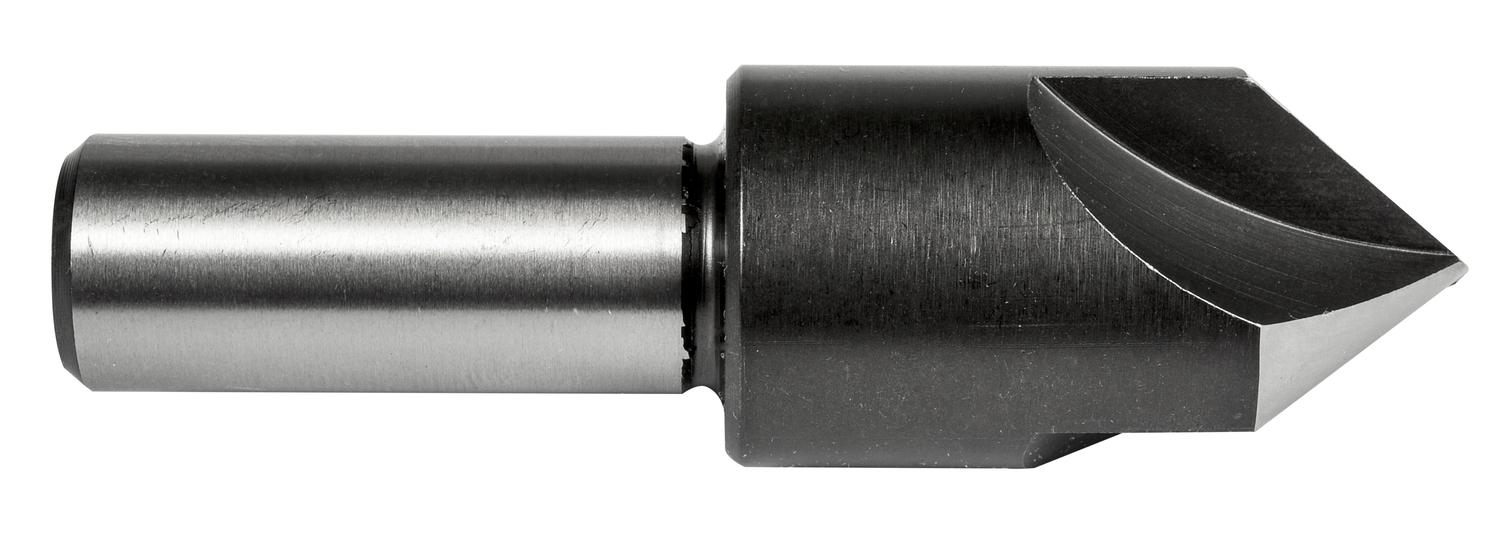

Center Reamer with 3-flutes, 82° countersink angle, maximum diameter 3/4″ with an overall length of 2.5/8″ and a head length of 1.1/4″ and 1/2″ straight shank, manufactured in accordance to ANSI B94.2-1983(R1988) standards to finish ream a conical seat for US standard flat-head screws, HSS with standard bright finish for machining free machining and plain carbon steel, wrought and copper or copper alloys

Additional information

Weight 0.1804 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 3603607004319
Product number (SAP): 86040954
Ordering code ANSI: B6903/4X82
Product name: B6903/4X82
Gross weight – grams: 95
Connection diameter – fractional inch (DCON MS): 1/2
Connection diameter – millimeter (DCON MS): 12.7 mm
Cutting diameter – fractional inch (DC): 3/4
Cutting diameter – inch (DC): 0.75 inch
Cutting diameter – millimeter (DC): 19.05 mm
Flute count (NOF): 3
Overall length – fractional inch (OAL): 2.5/8
Overall length – millimeter (OAL): 66.68 mm
ISO: B6903/4X82
Functional length – fractional inch (LF): 1.1/4

Brand

DORMER
