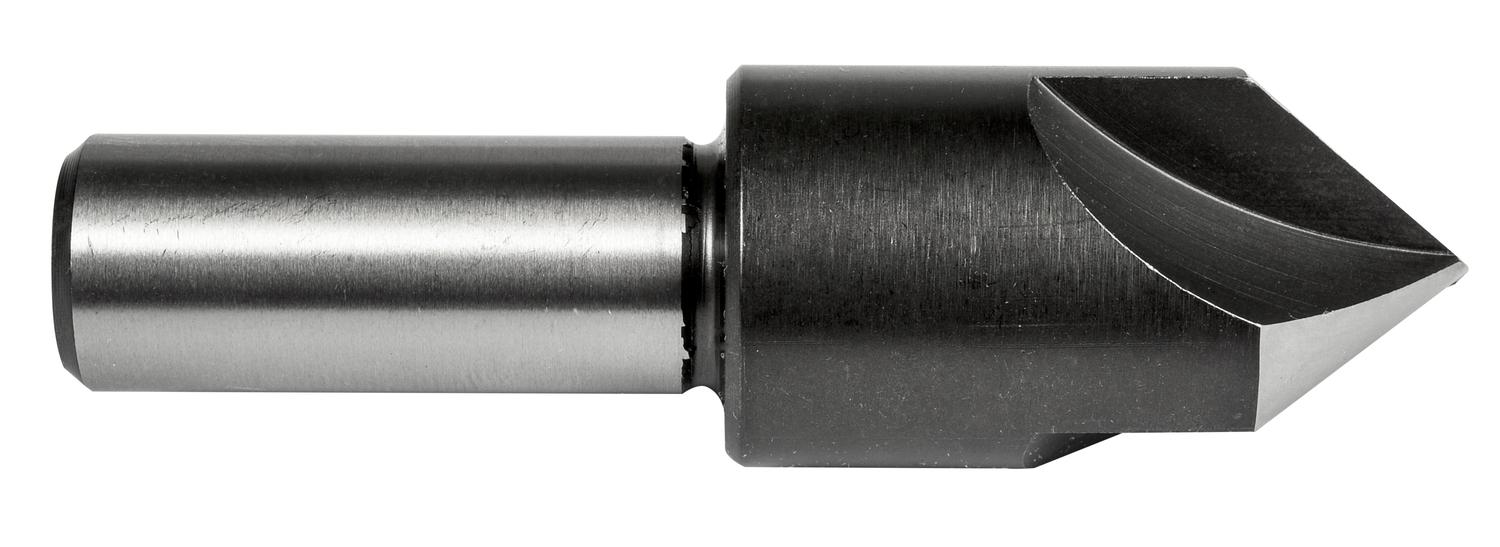

DORMER B6903/8X82 HSS Reamers

Description

Center Reamer with 3-flutes, 82° countersink angle, maximum diameter 3/8″ with an overall length of 1.3/4″ and a head length of 7/8″ and 1/4″ straight shank, manufactured in accordance to ANSI B94.2-1983(R1988) standards to finish ream a conical seat for US standard flat-head screws, HSS with standard bright finish for machining free machining and plain carbon steel, wrought and copper or copper alloys

Additional information

Weight	0.0732 kg
Dimensions
barcode
Additional Information	Description: Value EAN number: 3603607004197 Product number (SAP): 86040942 Ordering code ANSI: B6903/8X82 Product name: B6903/8X82 Gross weight – grams: 18.1 Connection diameter – fractional inch (DCON MS): 1/4 Connection diameter – millimeter (DCON MS): 6.35 mm Cutting diameter – fractional inch (DC): 3/8 Cutting diameter – inch (DC): 0.375 inch Cutting diameter – millimeter (DC): 9.53 mm Flute count (NOF): 3 Overall length – fractional inch (OAL): 1.3/4 Overall length – millimeter (OAL): 44.45 mm ISO: B6903/8X82 Functional length – fractional inch (LF): 7/8

Need Technical Advice?

Description

Additional information

Brand

DORMER
