DORMER B6905/8X100 HSS Reamers

Product Code: B6905/8X100

$140.49$127.72 Ex. GST

Product Code: B6905/8X100 SKU B6905/8X100 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

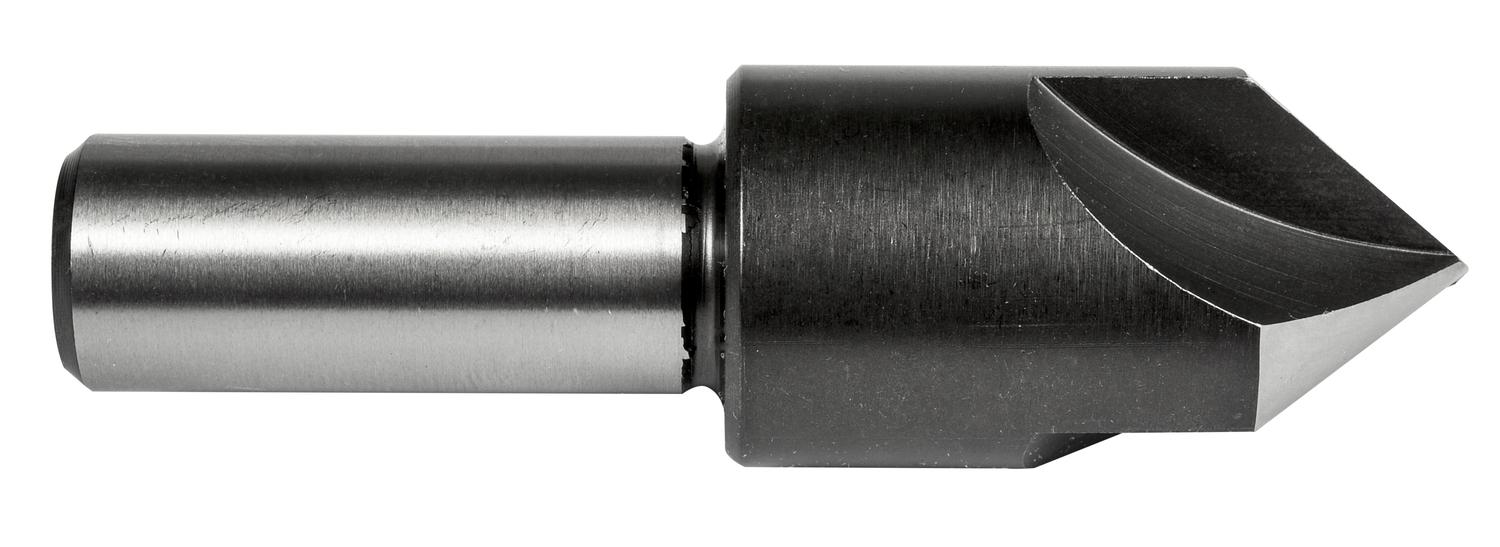

Center Reamer with 3-flutes, 100° countersink angle, maximum diameter 5/8″ with an overall length of 2.1/4″ and a head length of 1″ and 3/8″ straight shank, manufactured in accordance to ANSI B94.2-1983(R1988) standards to finish ream a conical seat for BS standard flat-head screws and aviation fasteners, HSS with standard bright finish for machining free machining and plain carbon steel, wrought and copper or copper alloys

Additional information

Weight 0.1364 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 3603607004296
Product number (SAP): 86040952
Ordering code ANSI: B6905/8X100
Product name: B6905/8X100
Gross weight – grams: 58
Connection diameter – fractional inch (DCON MS): 3/8
Connection diameter – millimeter (DCON MS): 9.53 mm
Cutting diameter – fractional inch (DC): 5/8
Cutting diameter – inch (DC): 0.625 inch
Cutting diameter – millimeter (DC): 15.88 mm
Flute count (NOF): 3
Overall length – fractional inch (OAL): 2.1/4
Overall length – millimeter (OAL): 57.15 mm
ISO: B6905/8X100
Functional length – fractional inch (LF): 1"

Brand

DORMER
