DORMER B6905/8X90 HSS Reamers

Product Code: B6905/8X90

$140.49$127.72 Ex. GST

Product Code: B6905/8X90 SKU B6905/8X90 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

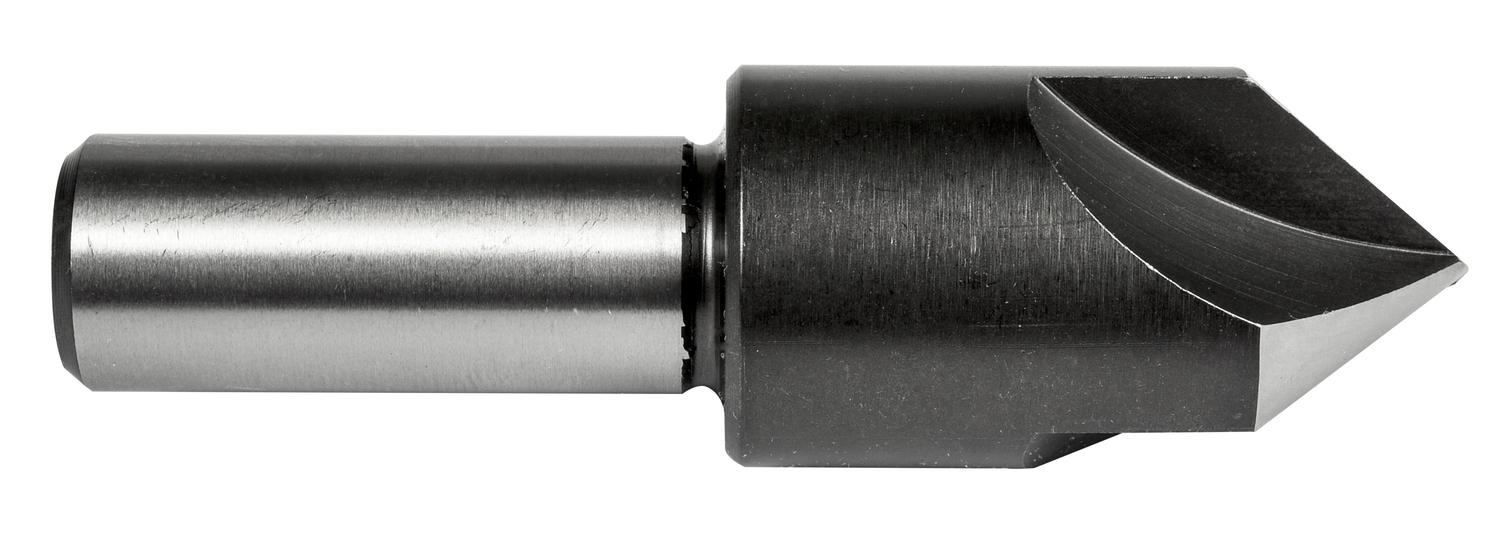

Center Reamer with 3-flutes, 90° countersink angle, maximum diameter 5/8″ with an overall length of 2.1/4″ and a head length of 1″ and 3/8″ straight shank, manufactured in accordance to ANSI B94.2-1983(R1988) standards to finish ream a conical seat for ISO Metric flat-head screws, HSS with standard bright finish for machining free machining and plain carbon steel, wrought and copper or copper alloys

Additional information

Weight 0.1364 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 3603607004289
Product number (SAP): 86040951
Ordering code ANSI: B6905/8X90
Product name: B6905/8X90
Gross weight – grams: 60
Connection diameter – fractional inch (DCON MS): 3/8
Connection diameter – millimeter (DCON MS): 9.53 mm
Cutting diameter – fractional inch (DC): 5/8
Cutting diameter – inch (DC): 0.625 inch
Cutting diameter – millimeter (DC): 15.88 mm
Flute count (NOF): 3
Overall length – fractional inch (OAL): 2.1/4
Overall length – millimeter (OAL): 57.15 mm
ISO: B6905/8X90
Functional length – fractional inch (LF): 1"

Brand

DORMER
