DORMER B9011/4 HSS Reamers

Product Code: B9011/4

$84.41$76.74 Ex. GST

Product Code: B9011/4 SKU B9011/4 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

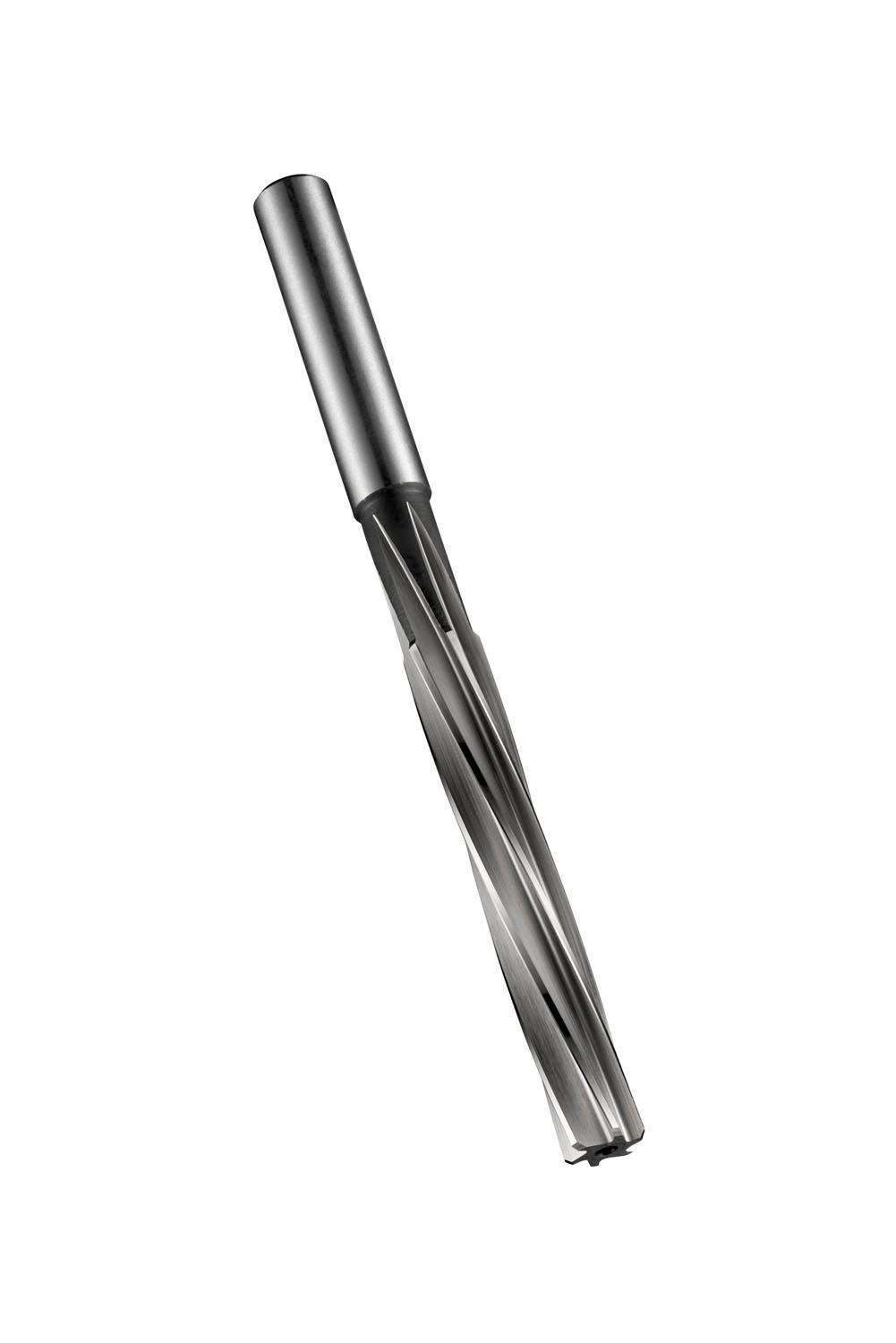

Machine reamer with left hand slow spiral flutes and a cylindrical shank, diameter 6.35mm (1/4″) with an overall length of 100mm and a flute length of 50mm, according to BS 328 standard for reaming precise holes within H7 tolerance, cobalt based HSS-E with bright-steam tempered finish for machining free machining, plain carbon and alloy steel, grey and malleable cast-iron, wrought and cast aluminium and copper or copper alloys

Additional information

Weight 0.0820 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760181003
Product number (SAP): 86013163
Ordering code ANSI: B9011/4
Gross weight – grams: 25
Cutting diameter – fractional inch (DC): 1/4
Cutting diameter – millimeter (DC): 6.35 mm
Overall length – millimeter (OAL): 100 mm
Length chip flute – millimeter (LCF): 50 mm
Flute count (NOF): 6
Connection diameter – millimeter (DCON MS): 6.35 mm
ISO: B9011/4

Brand

DORMER
