DORMER B9011/8 HSS Reamers

Product Code: B9011/8

$79.88$72.62 Ex. GST

Product Code: B9011/8 SKU B9011/8 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

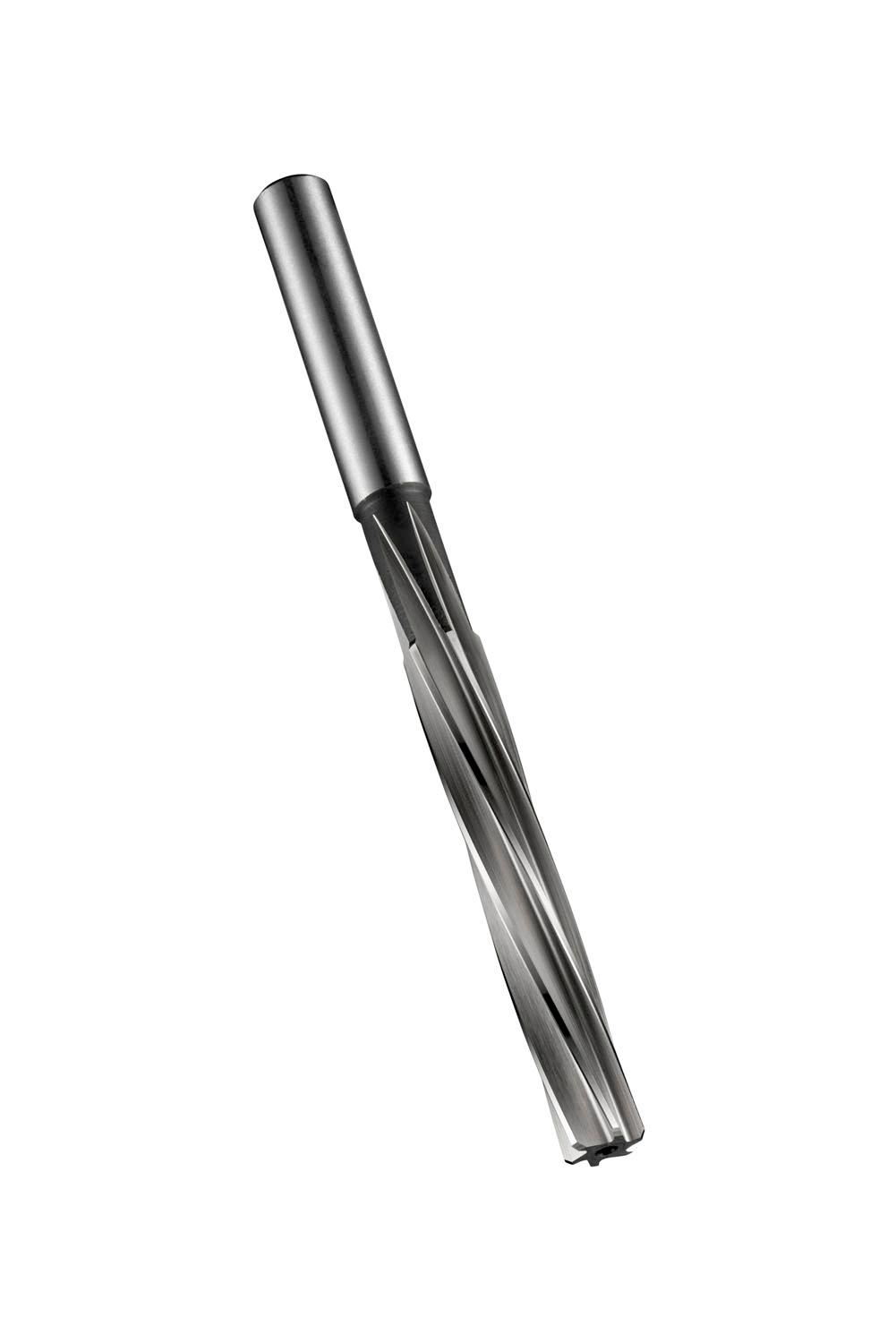

Machine reamer with left hand slow spiral flutes and a cylindrical shank, diameter 3.18mm (1/8″) with an overall length of 66mm and a flute length of 33mm, according to BS 328 standard for reaming precise holes within H7 tolerance, cobalt based HSS-E with bright-steam tempered finish for machining free machining, plain carbon and alloy steel, grey and malleable cast-iron, wrought and cast aluminium and copper or copper alloys

Additional information

Weight 0.0776 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760180860
Product number (SAP): 86013164
Ordering code ANSI: B9011/8
Gross weight – grams: 5.8
Cutting diameter – fractional inch (DC): 1/8
Cutting diameter – millimeter (DC): 3.18 mm
Overall length – millimeter (OAL): 66 mm
Length chip flute – millimeter (LCF): 33 mm
Flute count (NOF): 4
Connection diameter – millimeter (DCON MS): 3.18 mm
ISO: B9011/8

Brand

DORMER
