DORMER B9013/32 HSS Reamers

Product Code: B9013/32

$118.97$108.15 Ex. GST

Product Code: B9013/32 SKU B9013/32 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

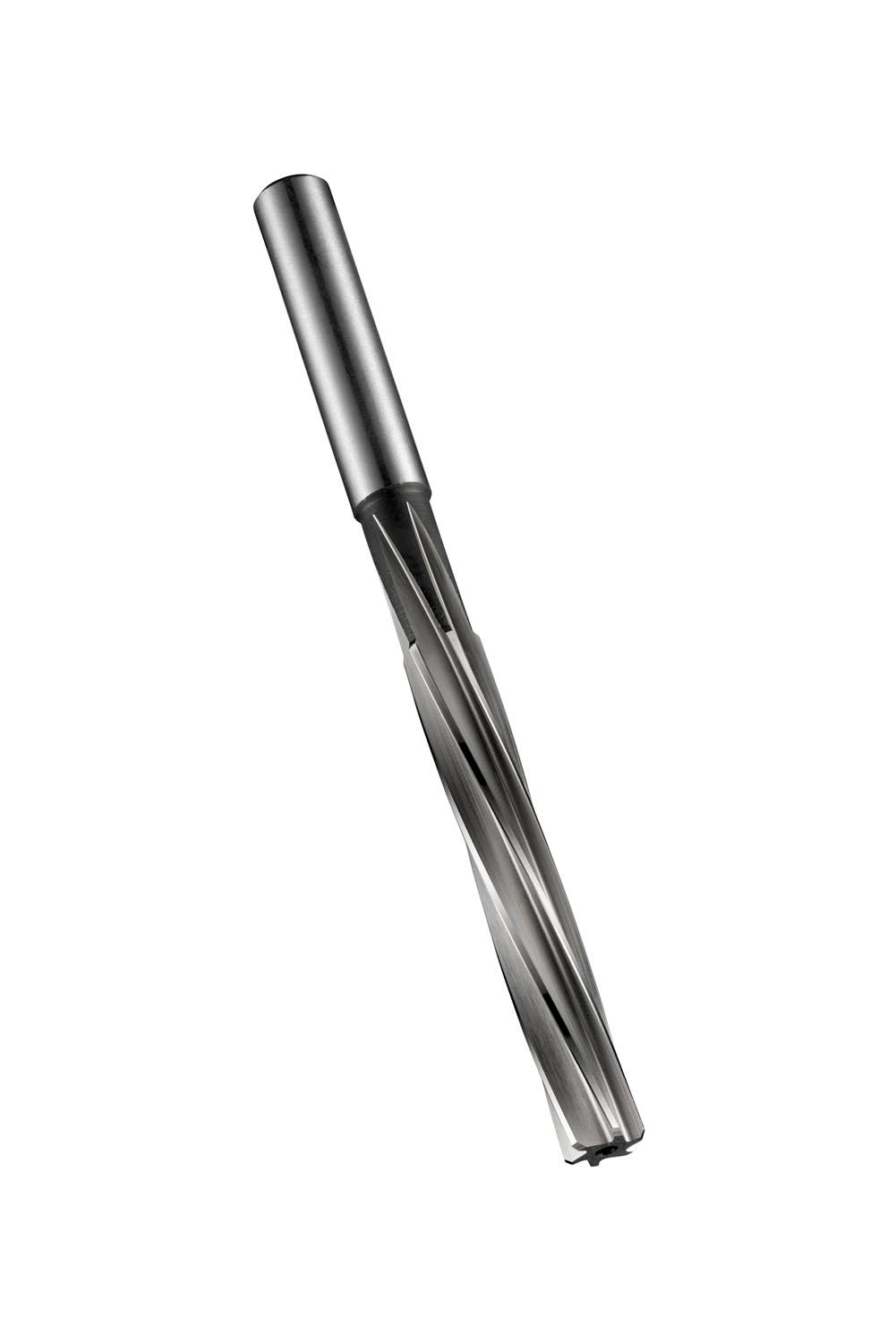

Machine reamer with left hand slow spiral flutes and a cylindrical shank, diameter 2.38mm (3/32″) with an overall length of 58mm and a flute length of 29mm, according to BS 328 standard for reaming precise holes within H7 tolerance, cobalt based HSS-E with bright-steam tempered finish for machining free machining, plain carbon and alloy steel, grey and malleable cast-iron, wrought and cast aluminium and copper or copper alloys

Additional information

Weight 0.1155 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760180839
Product number (SAP): 86013178
Ordering code ANSI: B9013/32
Gross weight – grams: 4.4
Cutting diameter – fractional inch (DC): 3/32
Cutting diameter – millimeter (DC): 2.38 mm
Overall length – millimeter (OAL): 58 mm
Length chip flute – millimeter (LCF): 29 mm
Flute count (NOF): 4
Connection diameter – millimeter (DCON MS): 2.38 mm
ISO: B9013/32

Brand

DORMER
