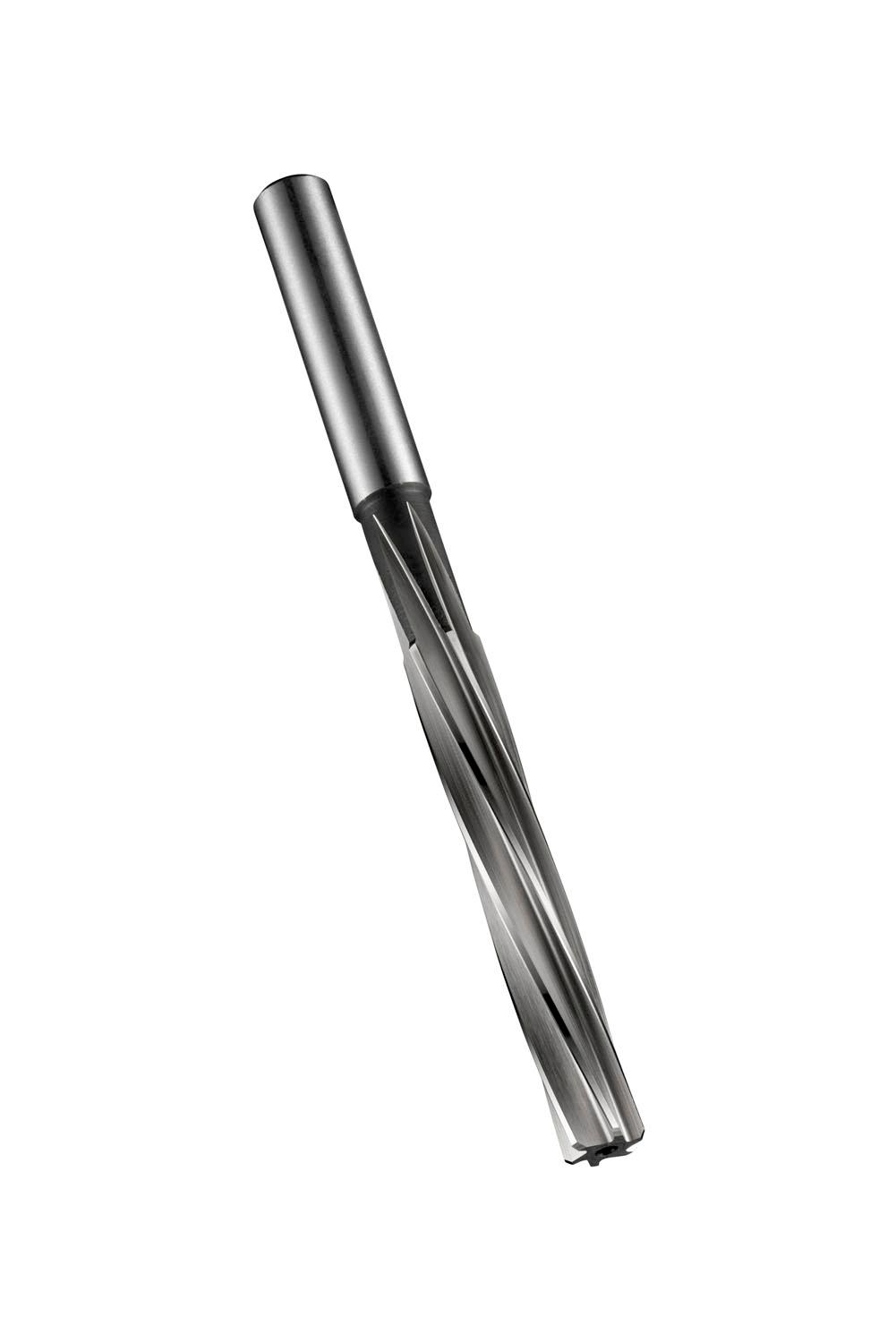

DORMER B9013/8 HSS Reamers

Product Code: B9013/8

$113.30$103.00 Ex. GST

Product Code: B9013/8 SKU B9013/8 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Machine reamer with left hand slow spiral flutes and a cylindrical shank, diameter 9.52mm (3/8″) with an overall length of 133mm and a flute length of 66mm, according to BS 328 standard for reaming precise holes within H7 tolerance, cobalt based HSS-E with bright-steam tempered finish for machining free machining, plain carbon and alloy steel, grey and malleable cast-iron, wrought and cast aluminium and copper or copper alloys

Additional information

Weight 0.1100 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760181072
Product number (SAP): 86013179
Ordering code ANSI: B9013/8
Gross weight – grams: 60.1
Cutting diameter – fractional inch (DC): 3/8
Cutting diameter – millimeter (DC): 9.52 mm
Overall length – millimeter (OAL): 133 mm
Length chip flute – millimeter (LCF): 66 mm
Flute count (NOF): 6
Connection diameter – millimeter (DCON MS): 9.52 mm
ISO: B9013/8

Brand

DORMER
