DORMER B9015/32 HSS Reamers

Product Code: B9015/32

$93.48$84.98 Ex. GST

Product Code: B9015/32 SKU B9015/32 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

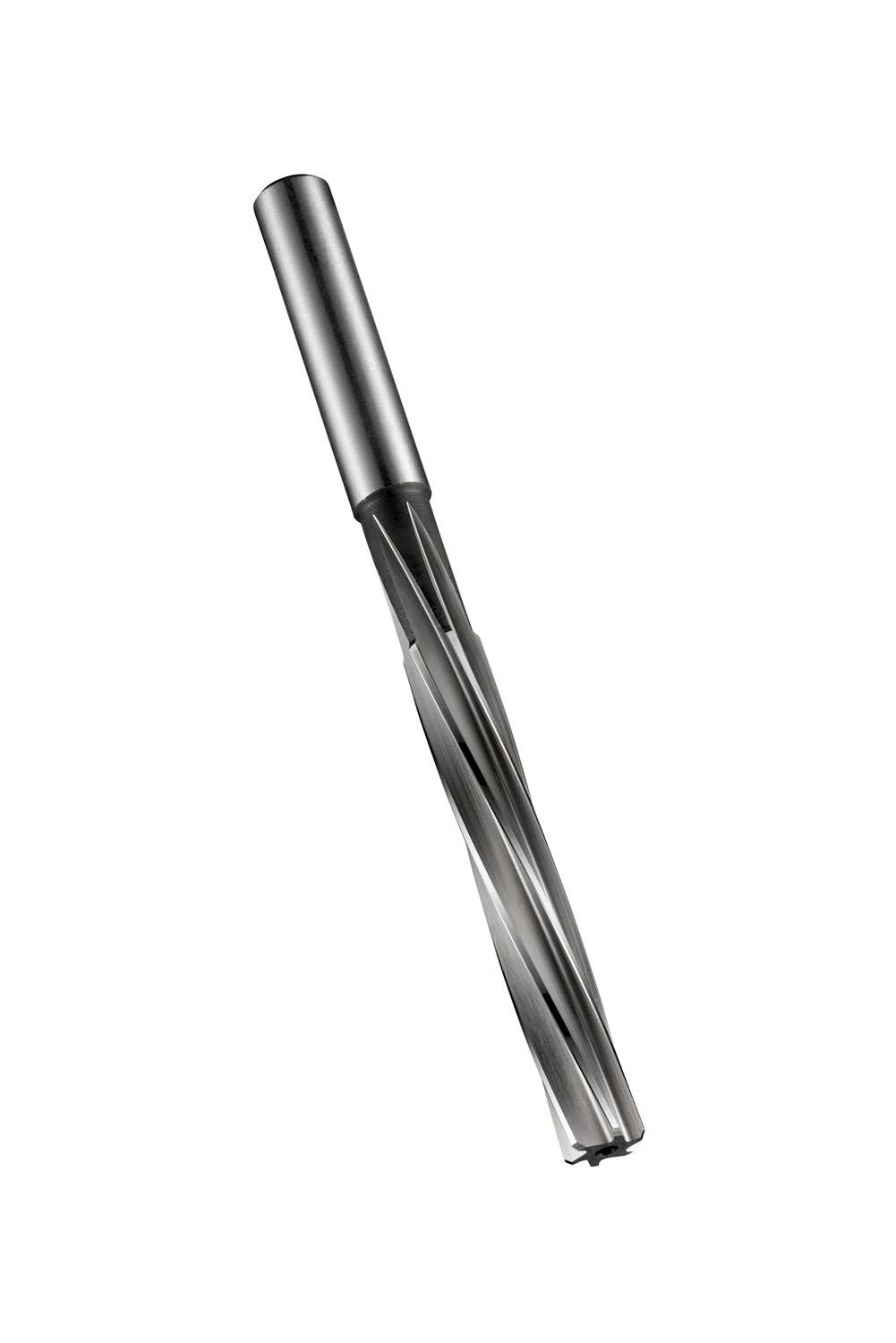

Machine reamer with left hand slow spiral flutes and a cylindrical shank, diameter 3.97mm (5/32″) with an overall length of 76mm and a flute length of 38mm, according to BS 328 standard for reaming precise holes within H7 tolerance, cobalt based HSS-E with bright-steam tempered finish for machining free machining, plain carbon and alloy steel, grey and malleable cast-iron, wrought and cast aluminium and copper or copper alloys

Additional information

Weight 0.0908 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760180891
Product number (SAP): 86013185
Ordering code ANSI: B9015/32
Gross weight – grams: 8.3
Cutting diameter – fractional inch (DC): 5/32
Cutting diameter – millimeter (DC): 3.97 mm
Overall length – millimeter (OAL): 76 mm
Length chip flute – millimeter (LCF): 38 mm
Flute count (NOF): 6
Connection diameter – millimeter (DCON MS): 3.97 mm
ISO: B9015/32

Brand

DORMER
