DORMER B9017/16 HSS Reamers

Product Code: B9017/16

$156.35$142.14 Ex. GST

Product Code: B9017/16 SKU B9017/16 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

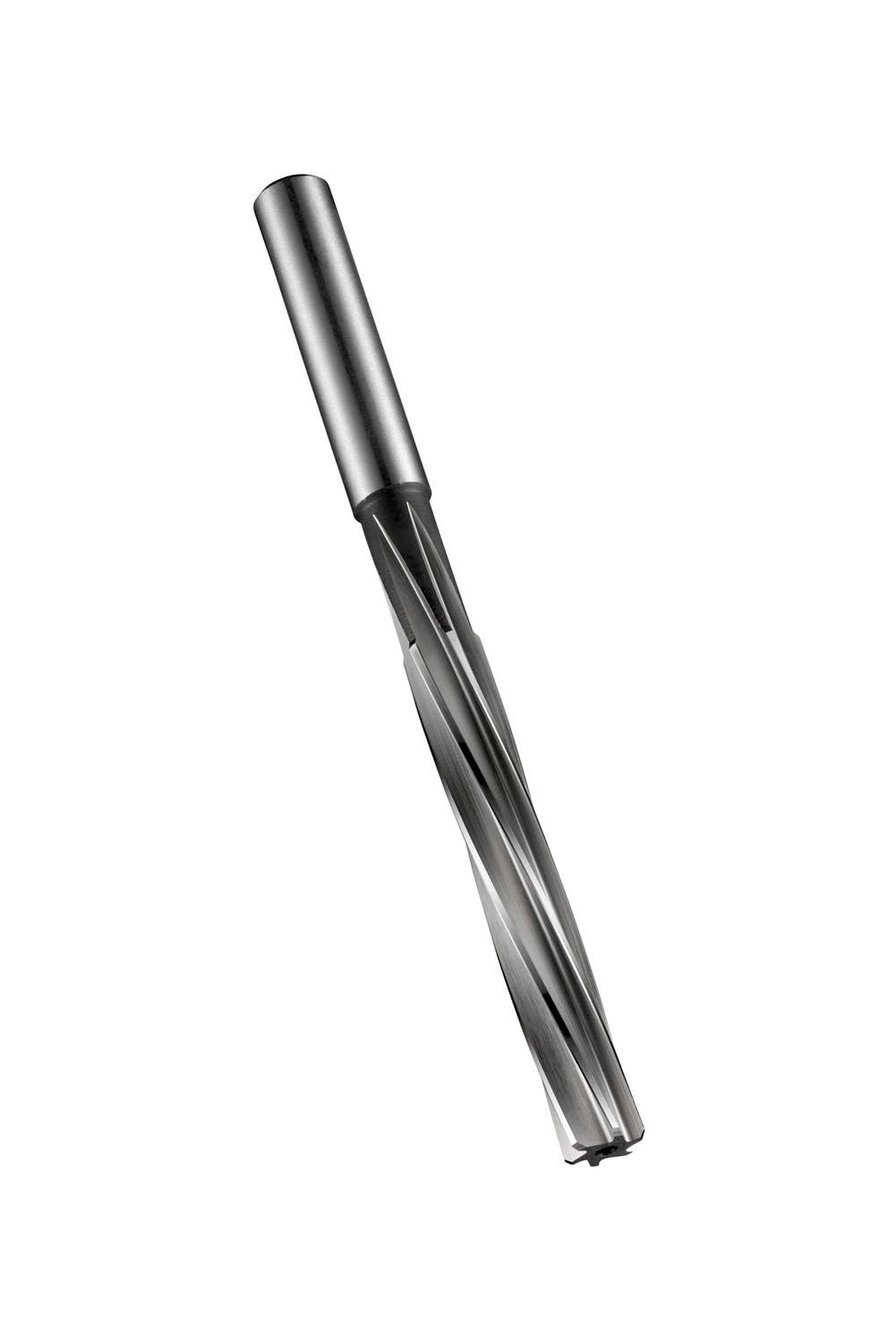

Machine reamer with left hand slow spiral flutes and a cylindrical shank, diameter 11.11mm (7/16″) with an overall length of 142mm and a flute length of 71mm, according to BS 328 standard for reaming precise holes within H7 tolerance, cobalt based HSS-E with bright-steam tempered finish for machining free machining, plain carbon and alloy steel, grey and malleable cast-iron, wrought and cast aluminium and copper or copper alloys

Additional information

Weight 0.1518 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760181119
Product number (SAP): 86013188
Ordering code ANSI: B9017/16
Gross weight – grams: 86.5
Cutting diameter – fractional inch (DC): 7/16
Cutting diameter – millimeter (DC): 11.11 mm
Overall length – millimeter (OAL): 142 mm
Length chip flute – millimeter (LCF): 71 mm
Flute count (NOF): 6
Connection diameter – millimeter (DCON MS): 11.11 mm
ISO: B9017/16

Brand

DORMER
