DORMER B9019/32 HSS Reamers

Product Code: B9019/32

$118.97$108.15 Ex. GST

Product Code: B9019/32 SKU B9019/32 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

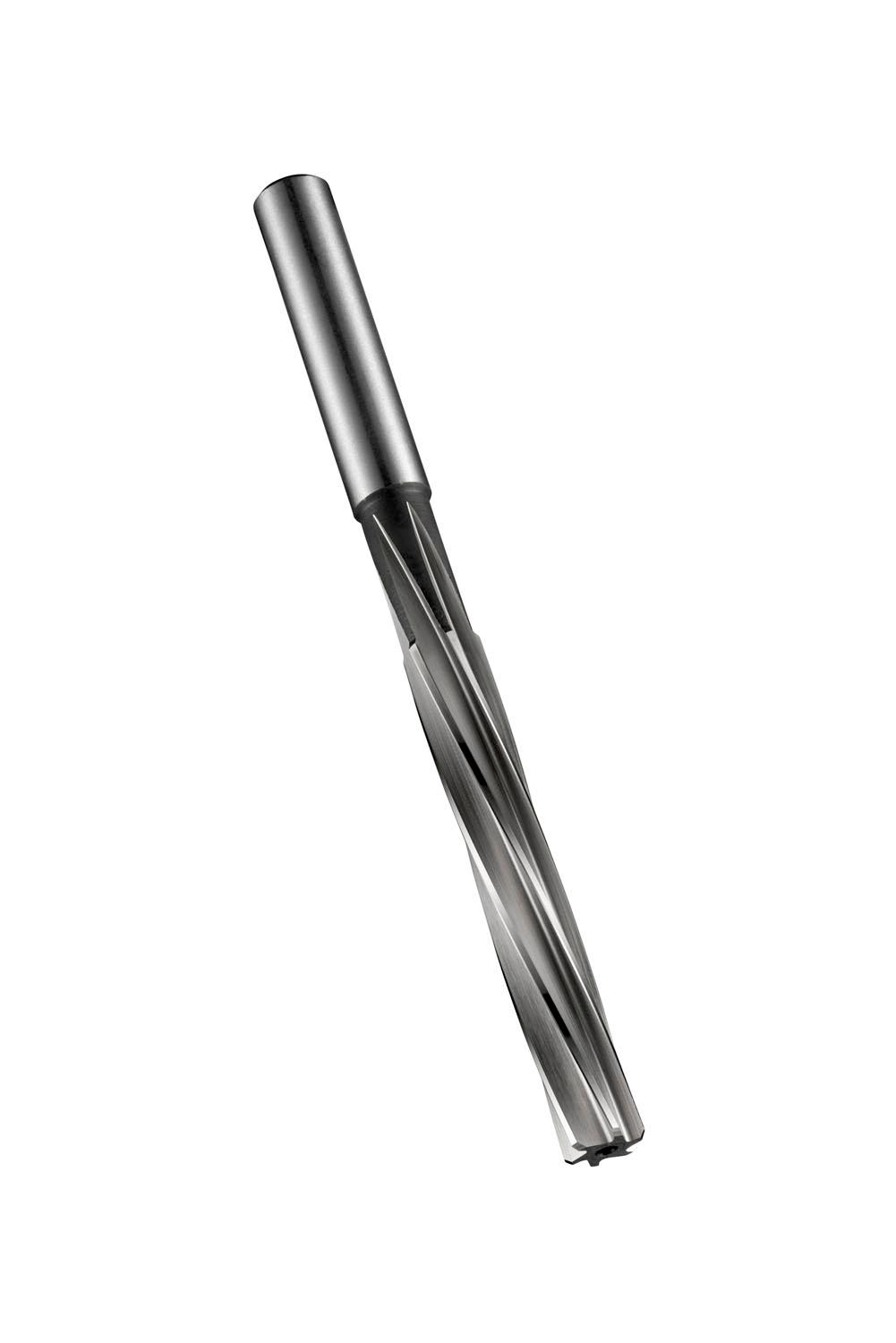

Machine reamer with left hand slow spiral flutes and a cylindrical shank, diameter 7.14mm (9/32″) with an overall length of 107mm and a flute length of 54mm, according to BS 328 standard for reaming precise holes within H7 tolerance, cobalt based HSS-E with bright-steam tempered finish for machining free machining, plain carbon and alloy steel, grey and malleable cast-iron, wrought and cast aluminium and copper or copper alloys

Additional information

Weight 0.1155 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760181027
Product number (SAP): 86013192
Ordering code ANSI: B9019/32
Gross weight – grams: 32.5
Cutting diameter – fractional inch (DC): 9/32
Cutting diameter – millimeter (DC): 7.14 mm
Overall length – millimeter (OAL): 107 mm
Length chip flute – millimeter (LCF): 54 mm
Flute count (NOF): 6
Connection diameter – millimeter (DCON MS): 7.14 mm
ISO: B9019/32

Brand

DORMER
