DORMER B9032.5 HSS Reamers

Product Code: B9032.5

$124.63$113.30 Ex. GST

Product Code: B9032.5 SKU B9032.5 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

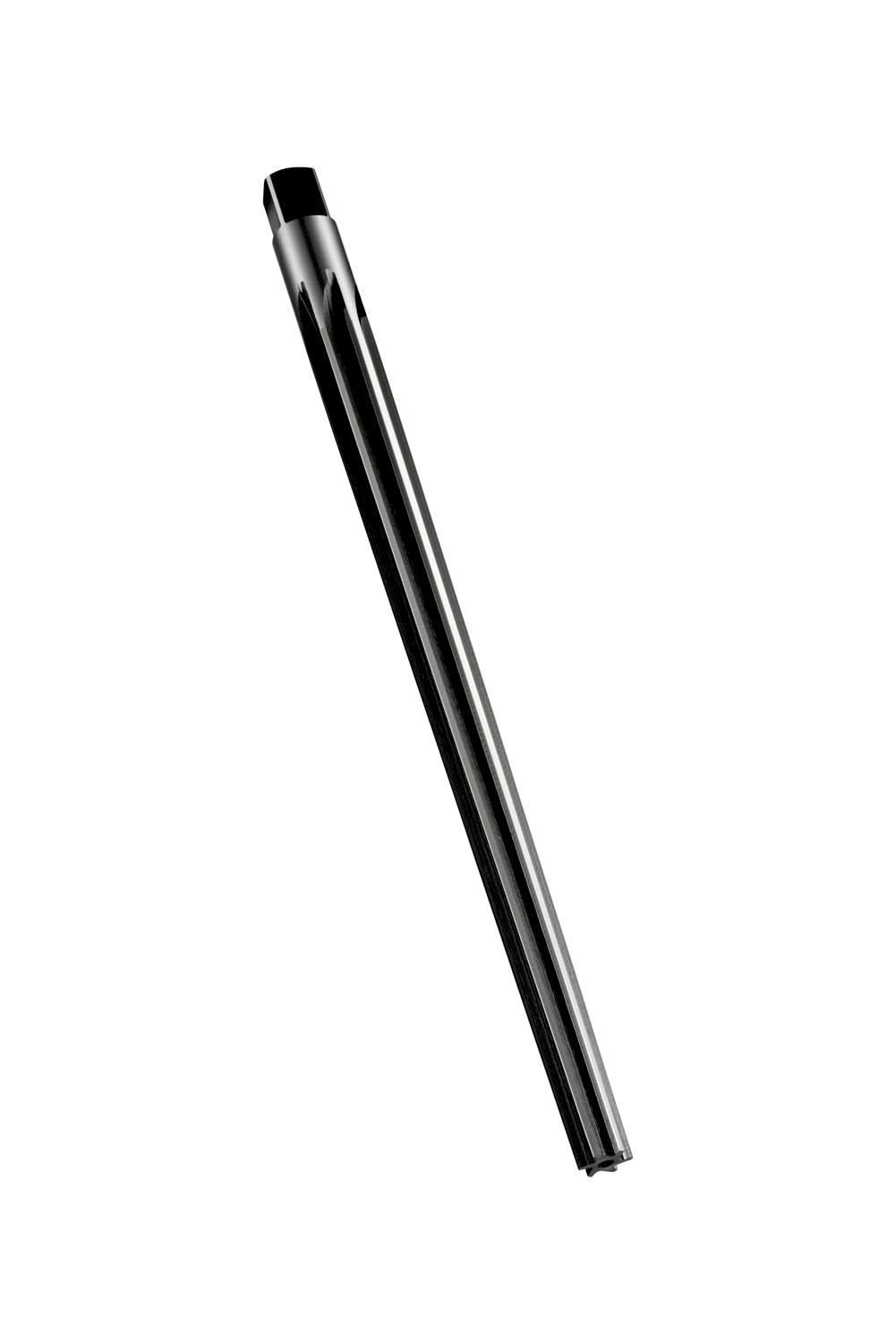

Taper pin hand reamer with straight flutes and a square drive, small end diameter 2.40mm with an overall length of 68mm, a flute length of 48mm and 3.36mm large end diameter, according to DIN 9 standard for reaming pin holes with a 1:50 taper into which 2.50mm taper pins will fit, HSS with bright-steam tempered finish for machining free machining, plain carbon and alloy steel, malleable cast-iron, wrought and cast aluminium and copper or copper alloys

Additional information

Weight 0.1210 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760182512
Product number (SAP): 86013201
Ordering code ANSI: B9032.5
Gross weight – grams: 5.6
Nominal diameter: 2.5
Cutting diameter step – millimeter: 2.4 mm
Cutting diameter second cutting step – millimeters (DC_2): 3.36 mm
Overall length – millimeter (OAL): 68 mm
Length chip flute – millimeter (LCF): 48 mm
Flute count (NOF): 4
Clamping width – millimeter (WSC): 2.8 mm
Connection diameter – millimeter (DCON MS): 3.36 mm
ISO: B9032.5

Brand

DORMER
