DORMER B9034.0 HSS Reamers

Product Code: B9034.0

$118.97$108.15 Ex. GST

Product Code: B9034.0 SKU B9034.0 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

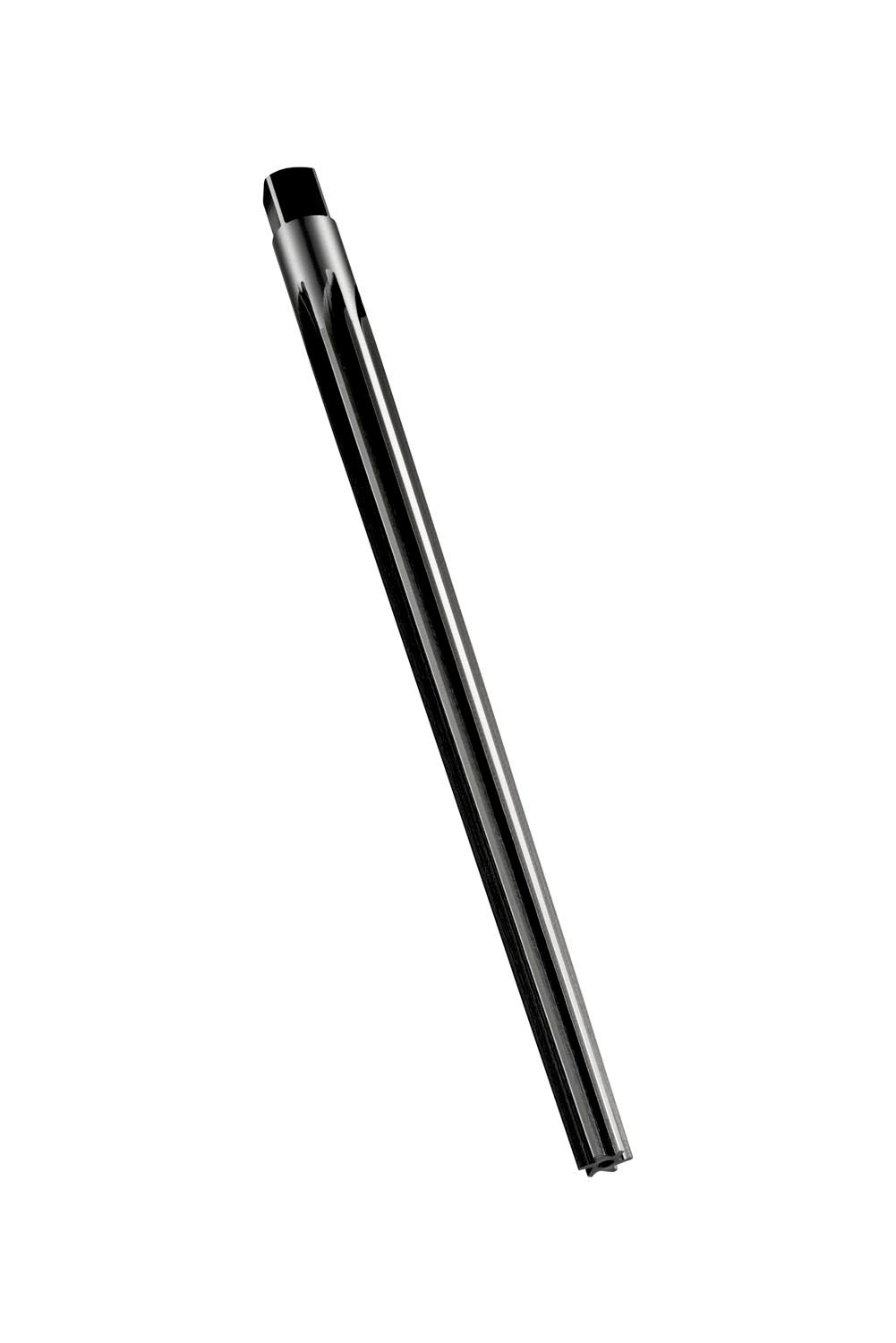

Taper pin hand reamer with straight flutes and a square drive, small end diameter 3.90mm with an overall length of 93mm, a flute length of 68mm and 5.26mm large end diameter, according to DIN 9 standard for reaming pin holes with a 1:50 taper into which 4.00mm taper pins will fit, HSS with bright-steam tempered finish for machining free machining, plain carbon and alloy steel, malleable cast-iron, wrought and cast aluminium and copper or copper alloys

Additional information

Weight 0.1155 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760182536
Product number (SAP): 86013204
Ordering code ANSI: B9034.0
Gross weight – grams: 15.6
Nominal diameter: 4
Cutting diameter step – millimeter: 3.9 mm
Cutting diameter second cutting step – millimeters (DC_2): 5.26 mm
Overall length – millimeter (OAL): 93 mm
Length chip flute – millimeter (LCF): 68 mm
Flute count (NOF): 4
Clamping width – millimeter (WSC): 4 mm
Connection diameter – millimeter (DCON MS): 5 mm
ISO: B9034.0

Brand

DORMER
