DORMER B9035.0 HSS Reamers

Product Code: B9035.0

$129.16$117.42 Ex. GST

Product Code: B9035.0 SKU B9035.0 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

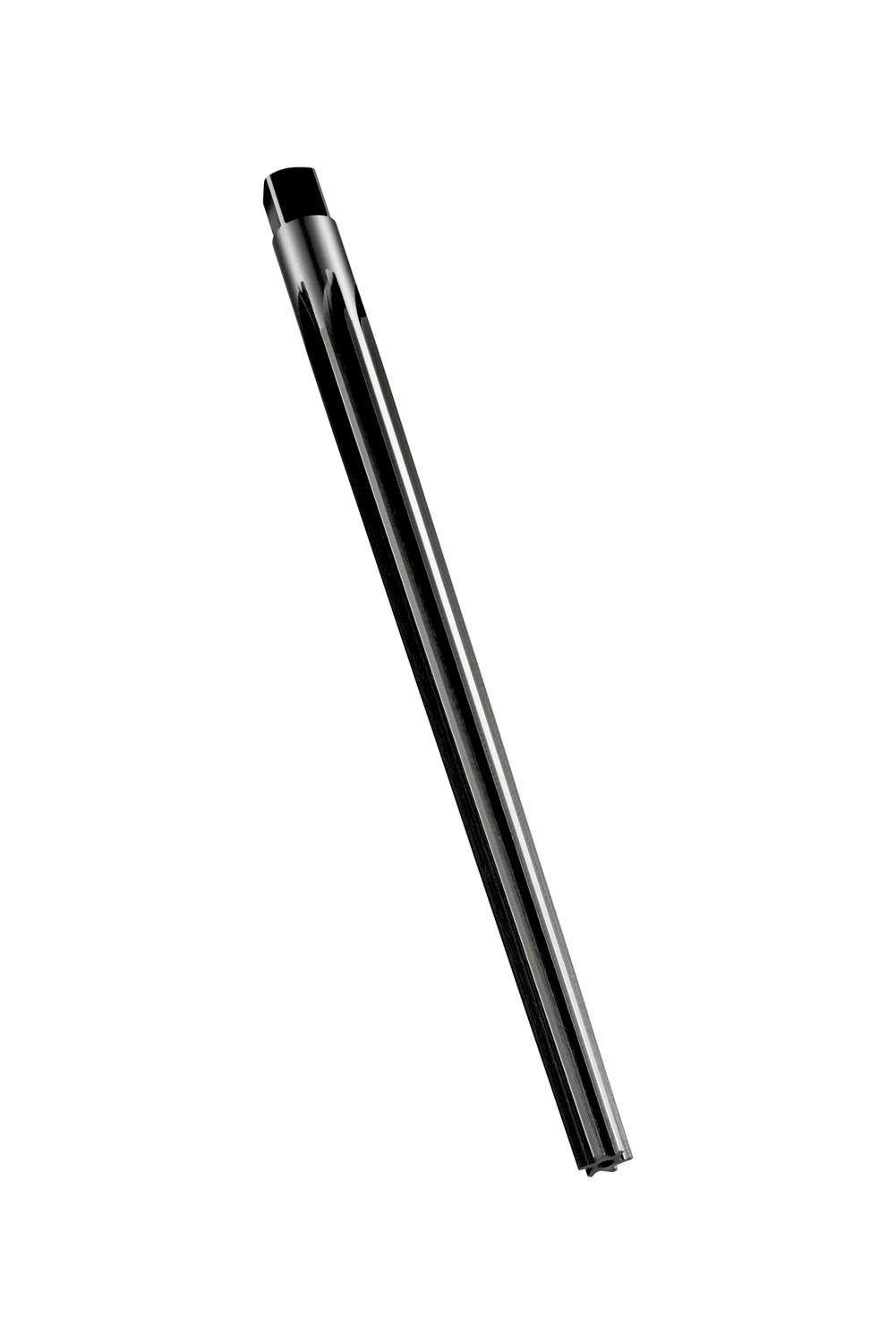

Taper pin hand reamer with straight flutes and a square drive, small end diameter 4.90mm with an overall length of 100mm, a flute length of 73mm and 6.36mm large end diameter, according to DIN 9 standard for reaming pin holes with a 1:50 taper into which 5.00mm taper pins will fit, HSS with bright-steam tempered finish for machining free machining, plain carbon and alloy steel, malleable cast-iron, wrought and cast aluminium and copper or copper alloys

Additional information

Weight 0.1254 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760182543
Product number (SAP): 86013205
Ordering code ANSI: B9035.0
Gross weight – grams: 20.47
Nominal diameter: 5
Cutting diameter step – millimeter: 4.9 mm
Cutting diameter second cutting step – millimeters (DC_2): 6.36 mm
Overall length – millimeter (OAL): 100 mm
Length chip flute – millimeter (LCF): 73 mm
Flute count (NOF): 4
Clamping width – millimeter (WSC): 5 mm
Connection diameter – millimeter (DCON MS): 6.3 mm
ISO: B9035.0
