DORMER B9036.0 HSS Reamers

Product Code: B9036.0

$149.56$135.96 Ex. GST

Product Code: B9036.0 SKU B9036.0 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

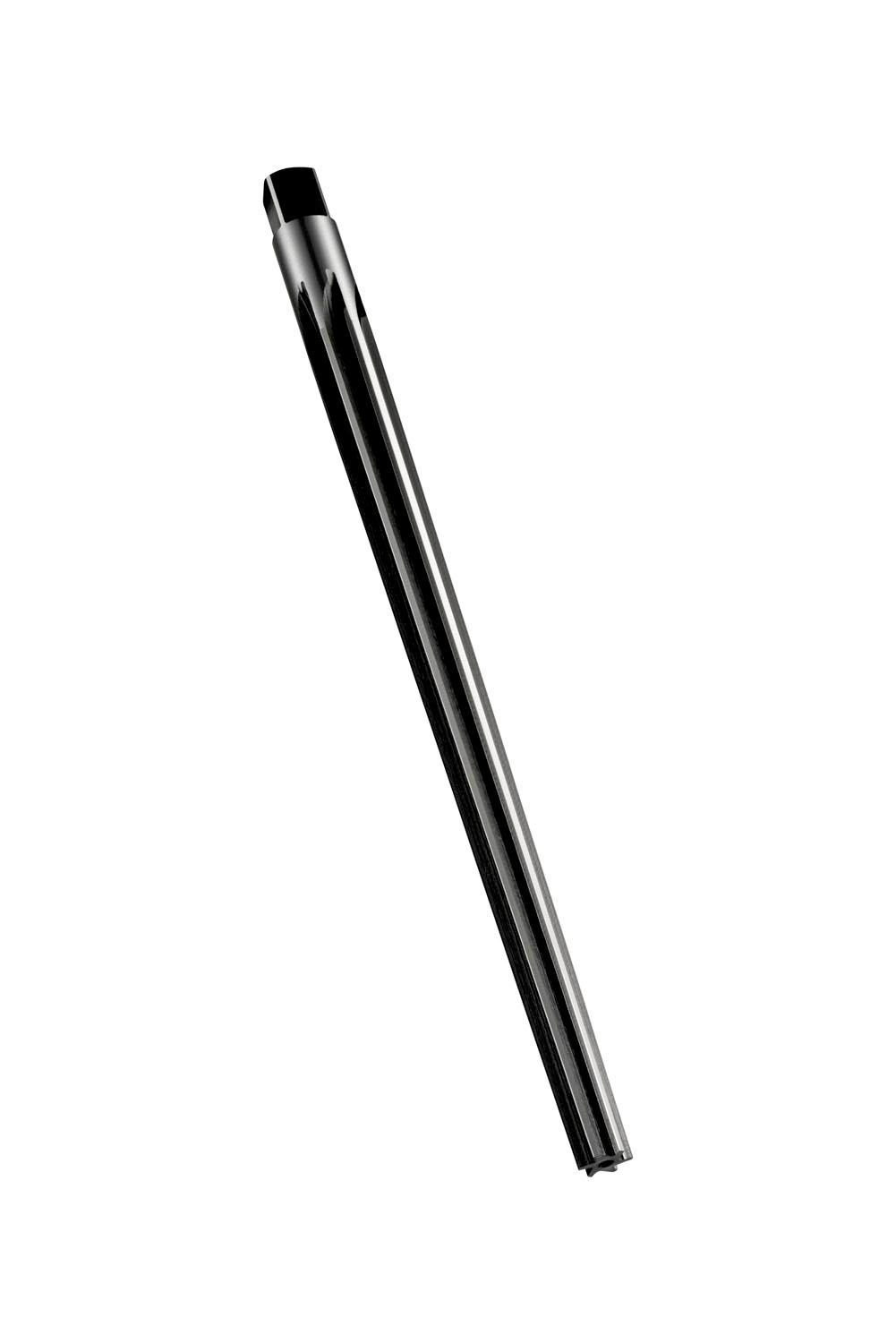

Taper pin hand reamer with straight flutes and a square drive, small end diameter 5.90mm with an overall length of 135mm, a flute length of 105mm and 8.00mm large end diameter, according to DIN 9 standard for reaming pin holes with a 1:50 taper into which 6.00mm taper pins will fit, HSS with bright-steam tempered finish for machining free machining, plain carbon and alloy steel, malleable cast-iron, wrought and cast aluminium and copper or copper alloys

Additional information

Weight 0.1452 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760182550
Product number (SAP): 86013206
Ordering code ANSI: B9036.0
Gross weight – grams: 33.2
Nominal diameter: 6
Cutting diameter step – millimeter: 5.9 mm
Cutting diameter second cutting step – millimeters (DC_2): 8 mm
Overall length – millimeter (OAL): 135 mm
Length chip flute – millimeter (LCF): 105 mm
Flute count (NOF): 6
Clamping width – millimeter (WSC): 6.3 mm
Connection diameter – millimeter (DCON MS): 7.9 mm
ISO: B9036.0

Brand

DORMER
