DORMER B9038.0 HSS Reamers

Product Code: B9038.0

$189.21$172.01 Ex. GST

Product Code: B9038.0 SKU B9038.0 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

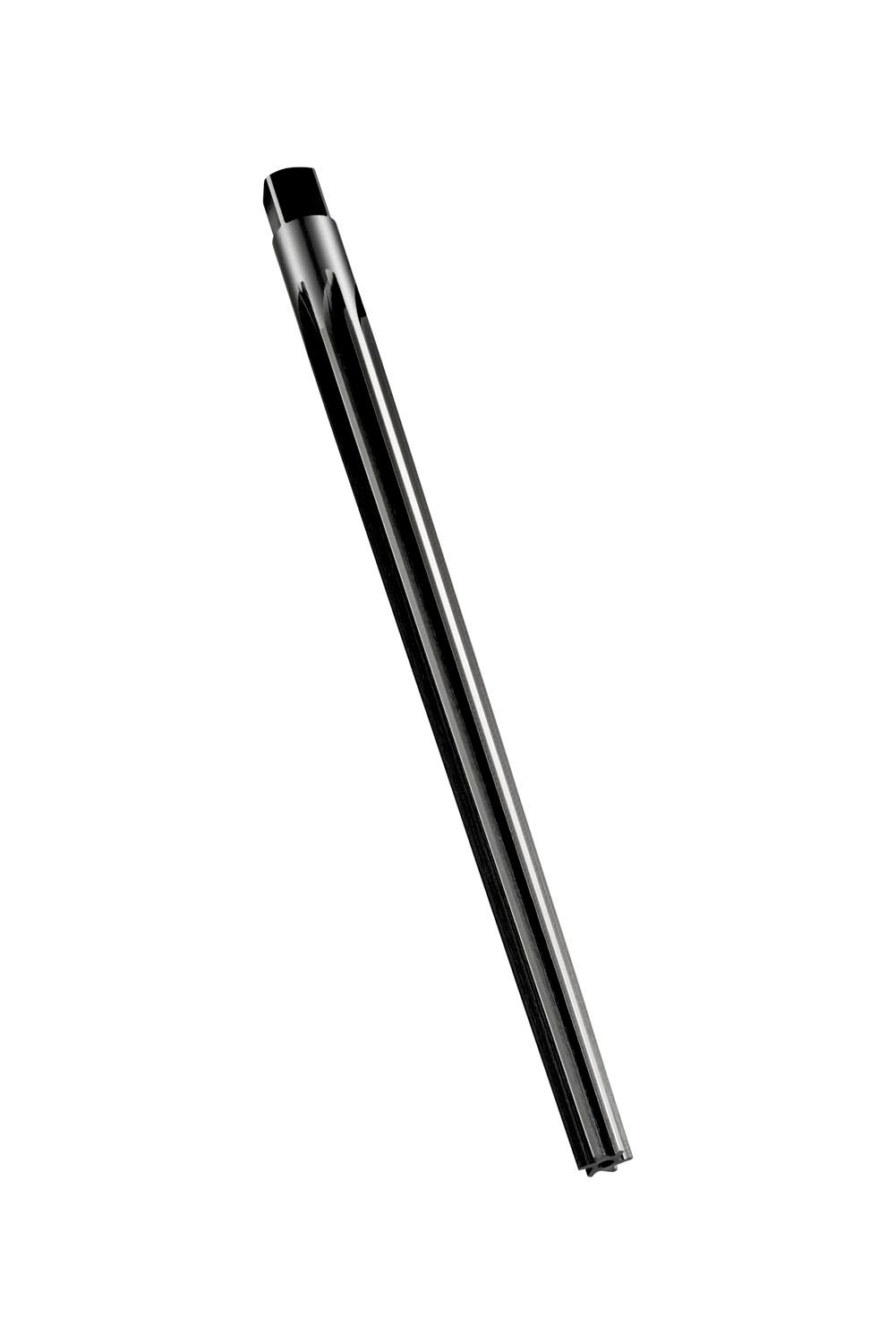

Taper pin hand reamer with straight flutes and a square drive, small end diameter 7.90mm with an overall length of 180mm, a flute length of 145mm and 10.80mm large end diameter, according to DIN 9 standard for reaming pin holes with a 1:50 taper into which 8.00mm taper pins will fit, HSS with bright-steam tempered finish for machining free machining, plain carbon and alloy steel, malleable cast-iron, wrought and cast aluminium and copper or copper alloys

Additional information

Weight 0.1837 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760182567
Product number (SAP): 86013207
Ordering code ANSI: B9038.0
Gross weight – grams: 72.5
Nominal diameter: 8
Cutting diameter step – millimeter: 7.9 mm
Cutting diameter second cutting step – millimeters (DC_2): 10.8 mm
Overall length – millimeter (OAL): 180 mm
Length chip flute – millimeter (LCF): 145 mm
Flute count (NOF): 6
Clamping width – millimeter (WSC): 8 mm
Connection diameter – millimeter (DCON MS): 10.5 mm
ISO: B9038.0

Brand

DORMER
