DORMER B9521.2 HSS Reamers

Product Code: B9521.2

$132.56$120.51 Ex. GST

Product Code: B9521.2 SKU B9521.2 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

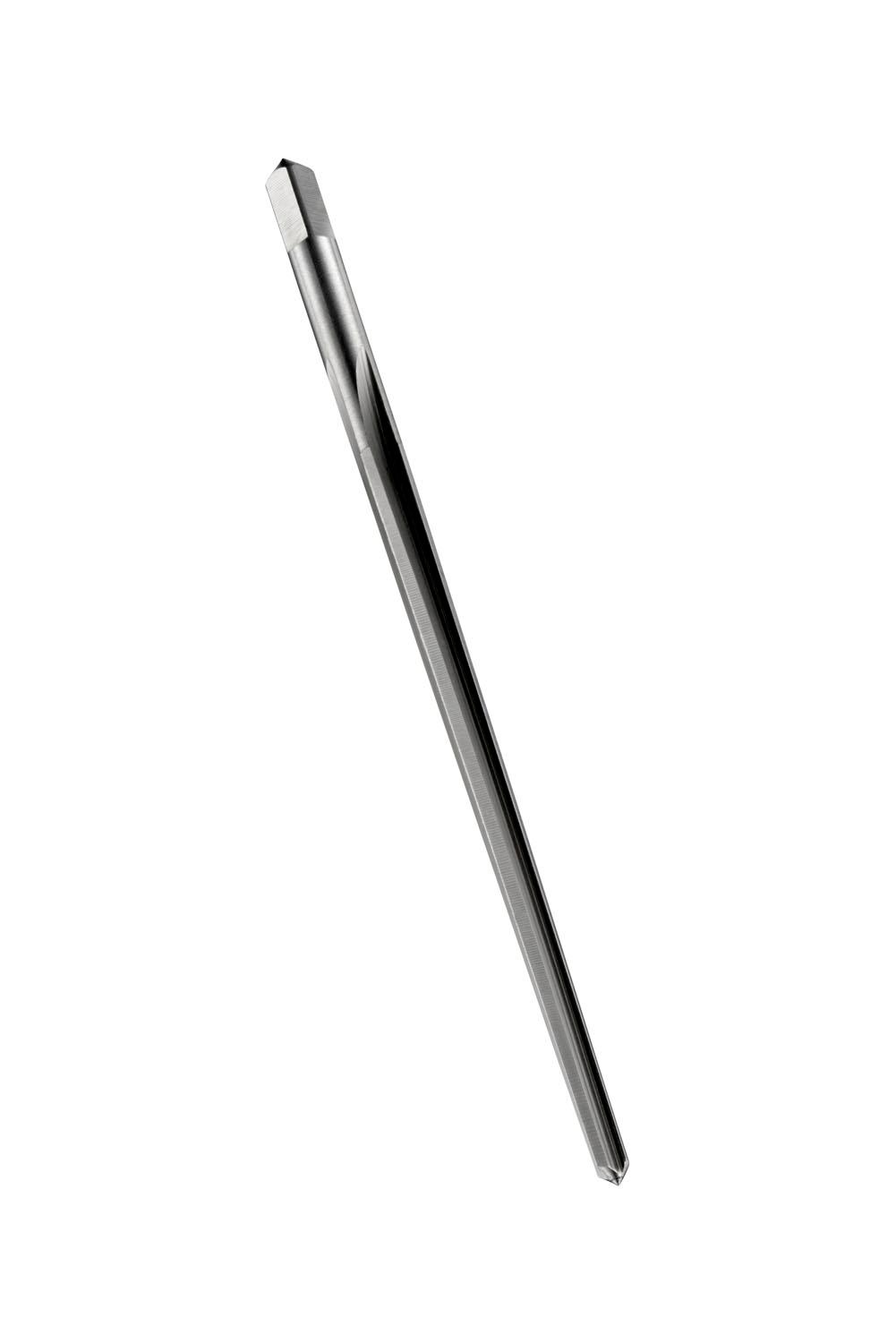

Taper pin hand reamer with left hand slow spiral flutes and a square drive, small end diameter 1.10mm with an overall length of 50mm, a flute length of 32mm and 1.74mm large end diameter, according to DIN 9 standard for reaming pin holes with a 1:50 taper into which 1.20mm taper pins will fit, HSS with bright finish for machining free machining, plain carbon and alloy steel, malleable cast-iron, wrought and cast aluminium and copper or copper alloys

Additional information

Weight 0.1287 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760140901
Product number (SAP): 86013208
Ordering code ANSI: B9521.2
Gross weight – grams: 3.9
Nominal diameter: 1.2
Cutting diameter step – millimeter: 1.1 mm
Cutting diameter second cutting step – millimeters (DC_2): 1.74 mm
Overall length – millimeter (OAL): 50 mm
Length chip flute – millimeter (LCF): 32 mm
Flute count (NOF): 3
Clamping width – millimeter (WSC): 2.4 mm
Connection diameter – millimeter (DCON MS): 3.15 mm
ISO: B9521.2

Brand

DORMER
