DORMER B95214.0 HSS Reamers

Product Code: B95214.0

$462.26$420.24 Ex. GST

Product Code: B95214.0 SKU B95214.0 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

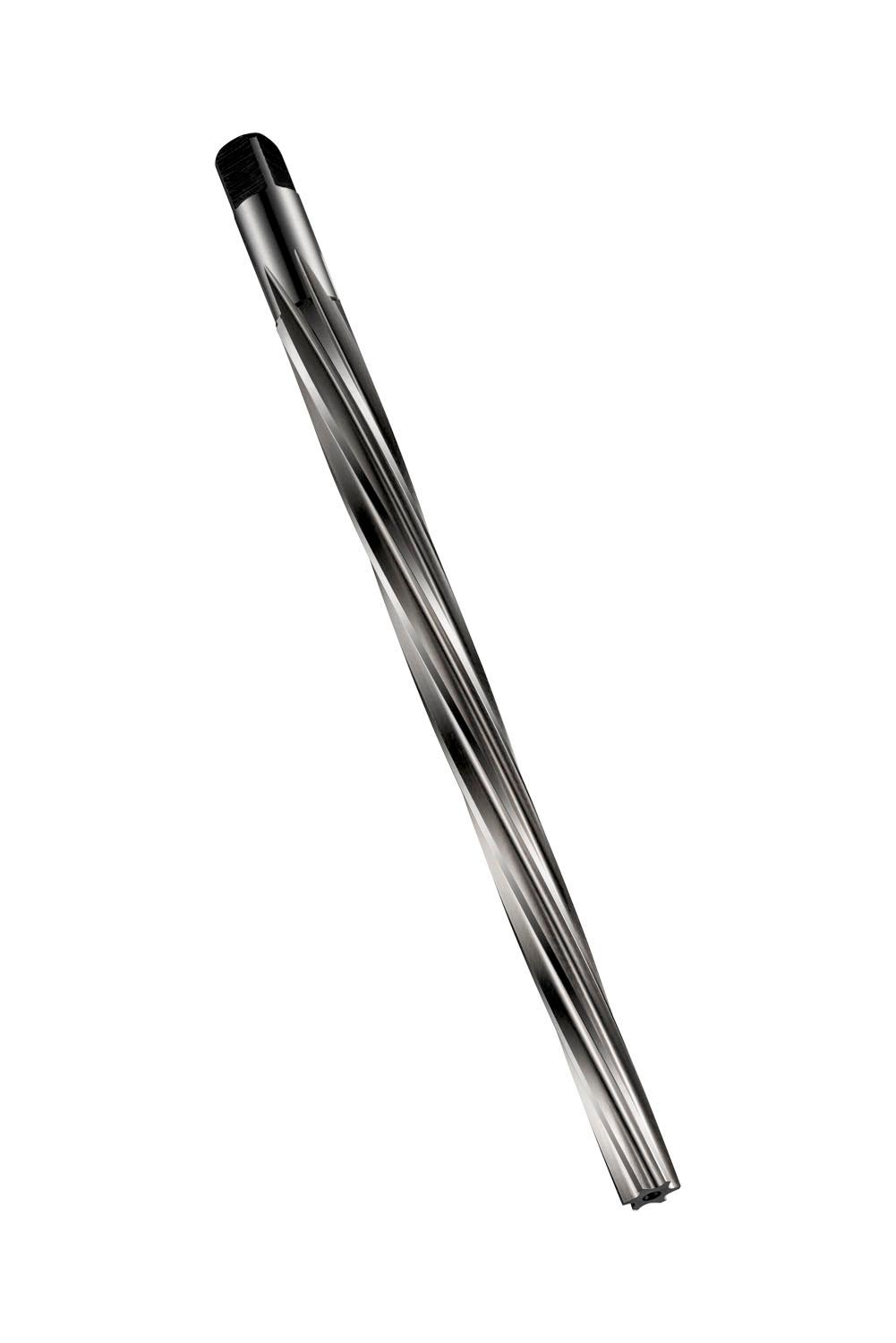

Taper pin hand reamer with left hand slow spiral flutes and a square drive, small end diameter 13.80mm with an overall length of 255mm, a flute length of 210mm and 18.00mm large end diameter, according to DIN 9 standard for reaming pin holes with a 1:50 taper into which 14.00mm taper pins will fit, HSS with bright finish for machining free machining, plain carbon and alloy steel, malleable cast-iron, wrought and cast aluminium and copper or copper alloys

Additional information

Weight 0.4488 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760141014
Product number (SAP): 86013213
Ordering code ANSI: B95214.0
Gross weight – grams: 286.8
Nominal diameter: 14
Cutting diameter step – millimeter: 13.8 mm
Cutting diameter second cutting step – millimeters (DC_2): 18 mm
Overall length – millimeter (OAL): 255 mm
Length chip flute – millimeter (LCF): 210 mm
Flute count (NOF): 8
Clamping width – millimeter (WSC): 12 mm
Connection diameter – millimeter (DCON MS): 16 mm
ISO: B95214.0

Brand

DORMER
