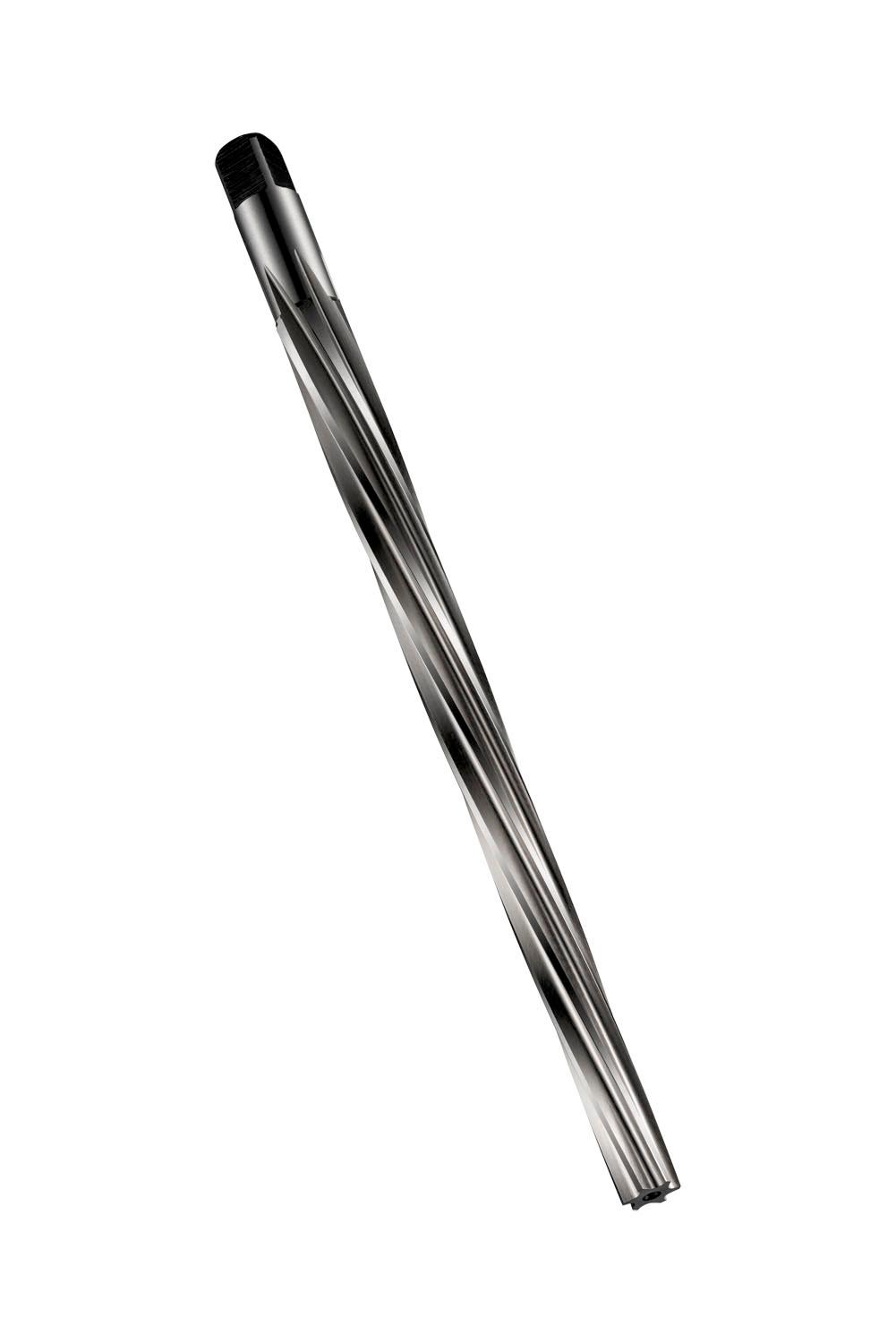

DORMER B95220.0 HSS Reamers

Product Code: B95220.0

$661.67$601.52 Ex. GST

Product Code: B95220.0 SKU B95220.0 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Taper pin hand reamer with left hand slow spiral flutes and a square drive, small end diameter 19.80mm with an overall length of 310mm, a flute length of 250mm and 24.80mm large end diameter, according to DIN 9 standard for reaming pin holes with a 1:50 taper into which 20.00mm taper pins will fit, HSS with bright finish for machining free machining, plain carbon and alloy steel, malleable cast-iron, wrought and cast aluminium and copper or copper alloys

Additional information

Weight 0.6424 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760053812
Product number (SAP): 86013217
Ordering code ANSI: B95220.0
Gross weight – grams: 709
Nominal diameter: 20
Cutting diameter step – millimeter: 19.8 mm
Cutting diameter second cutting step – millimeters (DC_2): 24.8 mm
Overall length – millimeter (OAL): 310 mm
Length chip flute – millimeter (LCF): 250 mm
Flute count (NOF): 8
Clamping width – millimeter (WSC): 18 mm
Connection diameter – millimeter (DCON MS): 22.4 mm
ISO: B95220.0

Brand

DORMER
