DORMER B9523.5 HSS Reamers

Product Code: B9523.5

$101.41$92.19 Ex. GST

Product Code: B9523.5 SKU B9523.5 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

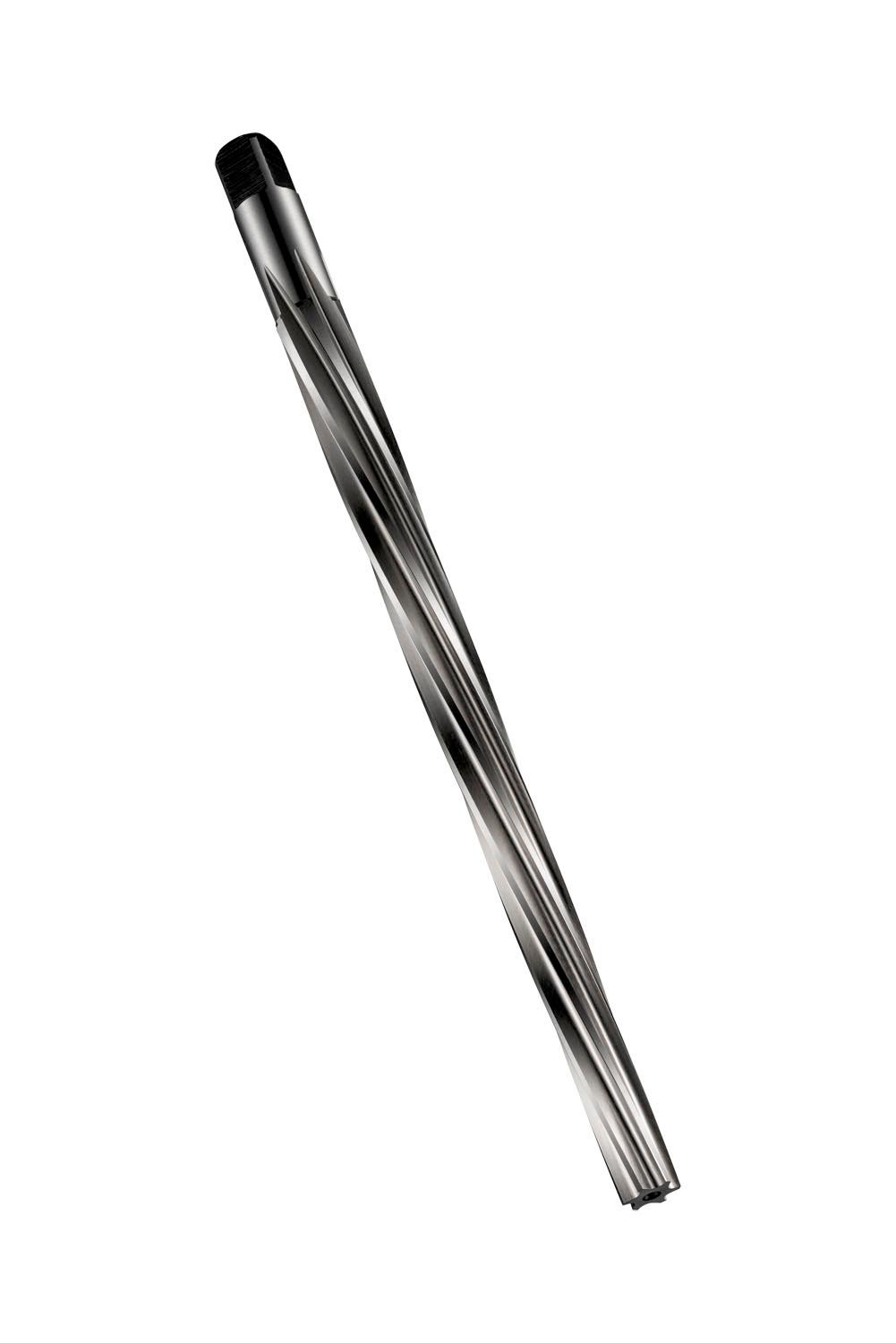

Taper pin hand reamer with left hand slow spiral flutes and a square drive, small end diameter 3.40mm with an overall length of 87mm, a flute length of 63mm and 4.66mm large end diameter, according to DIN 9 standard for reaming pin holes with a 1:50 taper into which 3.50mm taper pins will fit, HSS with bright finish for machining free machining, plain carbon and alloy steel, malleable cast-iron, wrought and cast aluminium and copper or copper alloys

Additional information

Weight 0.0985 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760140949
Product number (SAP): 86013220
Ordering code ANSI: B9523.5
Gross weight – grams: 12.7
Nominal diameter: 3.5
Cutting diameter step – millimeter: 3.4 mm
Cutting diameter second cutting step – millimeters (DC_2): 4.66 mm
Overall length – millimeter (OAL): 87 mm
Length chip flute – millimeter (LCF): 63 mm
Flute count (NOF): 5
Clamping width – millimeter (WSC): 3.4 mm
Connection diameter – millimeter (DCON MS): 4.5 mm
ISO: B9523.5

Brand

DORMER
