DORMER B95230.0 HSS Reamers

Product Code: B95230.0

$1,195.32$1,086.65 Ex. GST

Product Code: B95230.0 SKU B95230.0 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

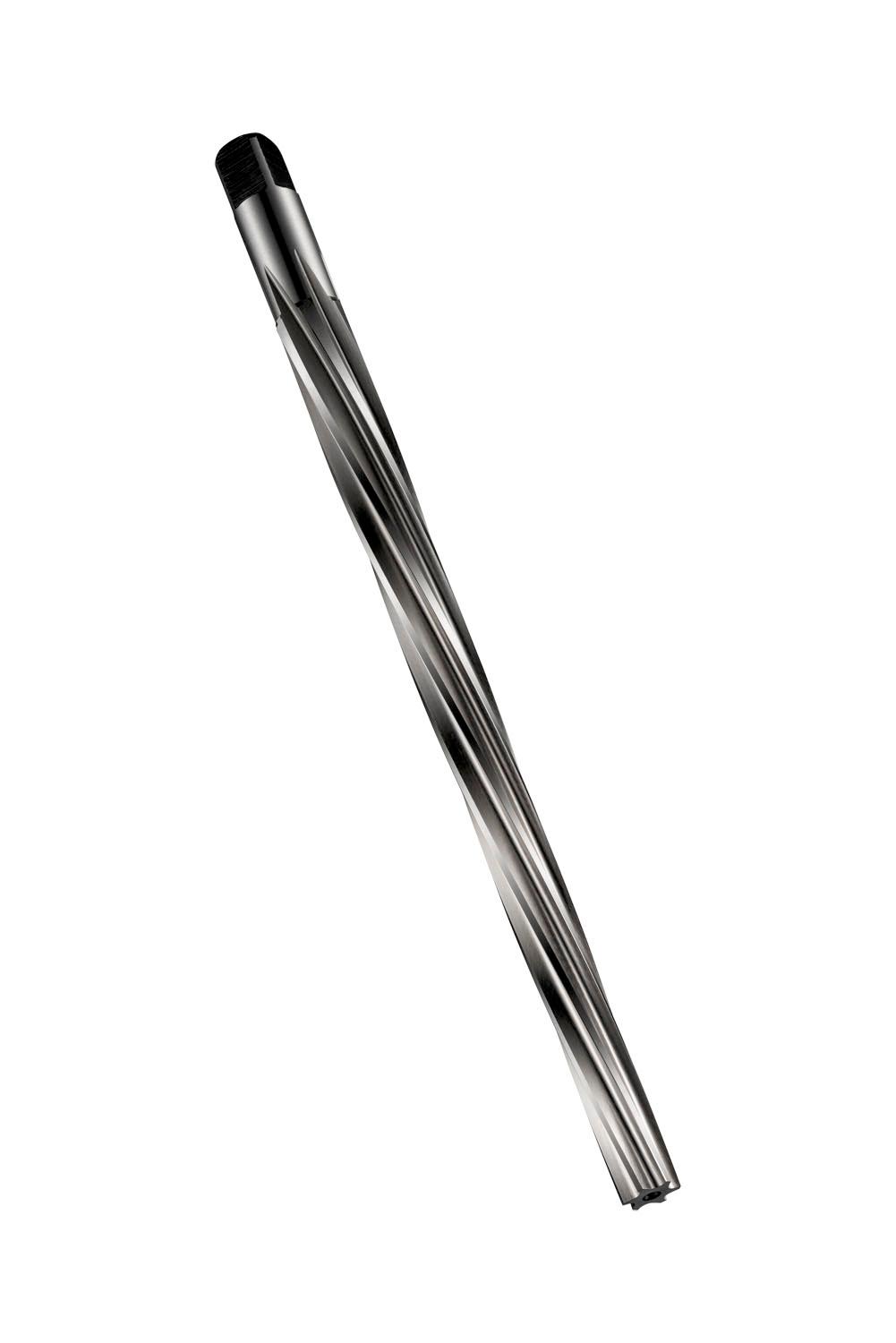

Taper pin hand reamer with left hand slow spiral flutes and a square drive, small end diameter 29.70mm with an overall length of 400mm, a flute length of 320mm and 36.10mm large end diameter, according to DIN 9 standard for reaming pin holes with a 1:50 taper into which 30.00mm taper pins will fit, HSS with bright finish for machining free machining, plain carbon and alloy steel, malleable cast-iron, wrought and cast aluminium and copper or copper alloys

Additional information

Weight 1.1605 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760141021
Product number (SAP): 86013221
Ordering code ANSI: B95230.0
Gross weight – grams: 2210
Nominal diameter: 30
Cutting diameter step – millimeter: 29.7 mm
Cutting diameter second cutting step – millimeters (DC_2): 36.1 mm
Overall length – millimeter (OAL): 400 mm
Length chip flute – millimeter (LCF): 320 mm
Flute count (NOF): 10
Clamping width – millimeter (WSC): 24 mm
Connection diameter – millimeter (DCON MS): 31.5 mm
ISO: B95230.0
