DORMER B9532.5 HSS Reamers

Product Code: B9532.5

$114.43$104.03 Ex. GST

Product Code: B9532.5 SKU B9532.5 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

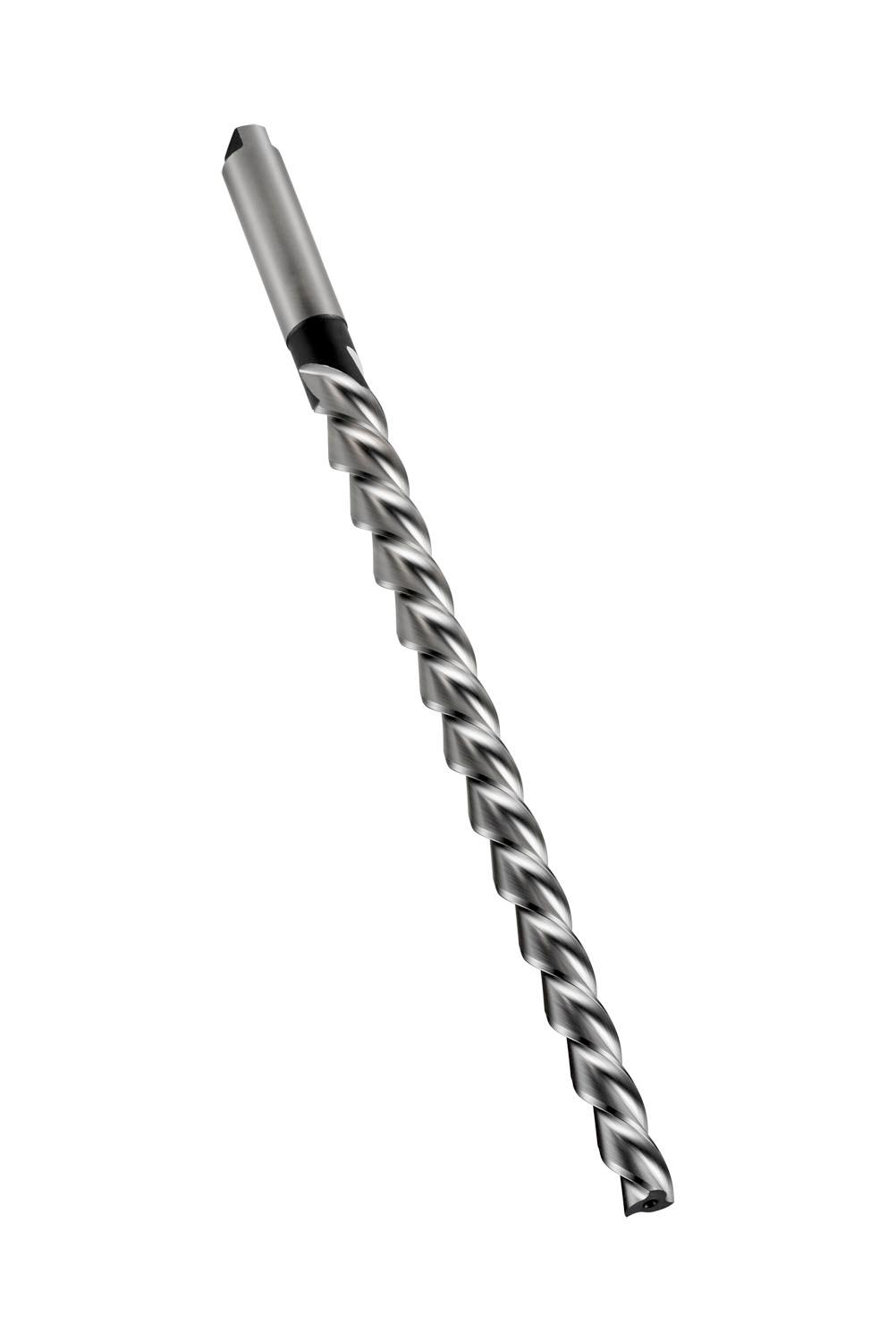

Taper pin machine reamer with left hand fast spiral flutes and a cylindrical shank with tang, small end diameter 2.40mm with an overall length of 86mm, a flute length of 48mm and 3.36mm large end diameter, according to DIN 2179 standard for reaming pin holes with a 1:50 taper into which 2.50mm taper pins will fit, cobalt based HSS-E with bright finish for machining free machining and plain carbon steel, grey and malleable cast-iron, cast aluminium

Additional information

Weight 0.1111 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760053911
Product number (SAP): 86013238
Ordering code ANSI: B9532.5
Gross weight – grams: 10
Nominal diameter: 2.5
Cutting diameter step – millimeter: 2.4 mm
Cutting diameter second cutting step – millimeters (DC_2): 3.36 mm
Overall length – millimeter (OAL): 86 mm
Length chip flute – millimeter (LCF): 48 mm
Flute count (NOF): 3
Connection diameter – millimeter (DCON MS): 3.15 mm
Connection diameter tolerance machine side (TCDCONMS): h9
ISO: B9532.5

Brand

DORMER
