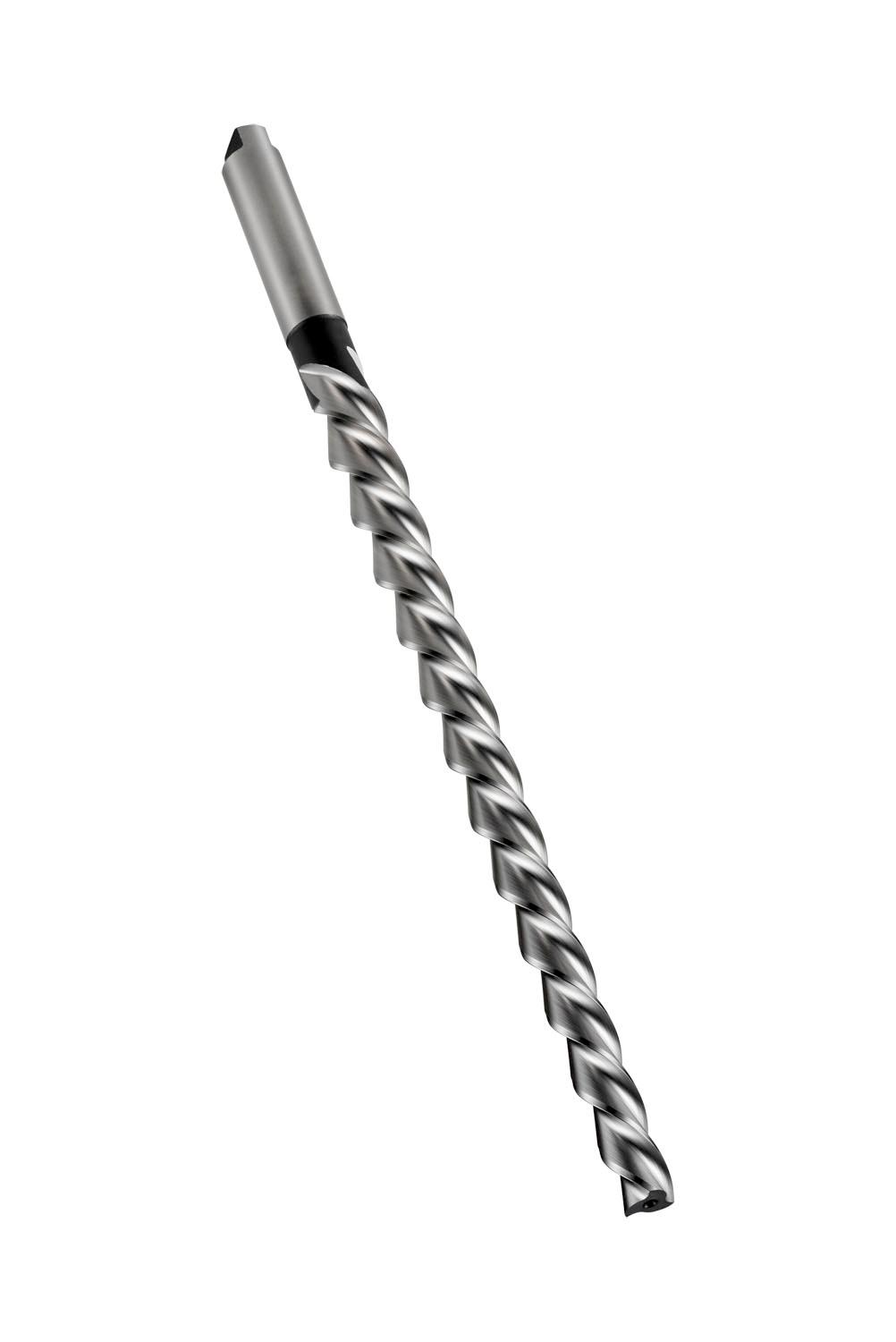

DORMER B9534.0 HSS Reamers

Product Code: B9534.0

$109.34$99.40 Ex. GST

Product Code: B9534.0 SKU B9534.0 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Taper pin machine reamer with left hand fast spiral flutes and a cylindrical shank with tang, small end diameter 3.90mm with an overall length of 112mm, a flute length of 68mm and 5.26mm large end diameter, according to DIN 2179 standard for reaming pin holes with a 1:50 taper into which 4.00mm taper pins will fit, cobalt based HSS-E with bright finish for machining free machining and plain carbon steel, grey and malleable cast-iron, cast aluminium

Additional information

Weight 0.1062 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760053935
Product number (SAP): 86013240
Ordering code ANSI: B9534.0
Gross weight – grams: 16.4
Nominal diameter: 4
Cutting diameter step – millimeter: 3.9 mm
Cutting diameter second cutting step – millimeters (DC_2): 5.26 mm
Overall length – millimeter (OAL): 112 mm
Length chip flute – millimeter (LCF): 68 mm
Flute count (NOF): 3
Connection diameter – millimeter (DCON MS): 5 mm
Connection diameter tolerance machine side (TCDCONMS): h9
ISO: B9534.0

Brand

DORMER
