DORMER B95410.0 HSS Reamers

Product Code: B95410.0

$327.44$297.67 Ex. GST

Product Code: B95410.0 SKU B95410.0 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

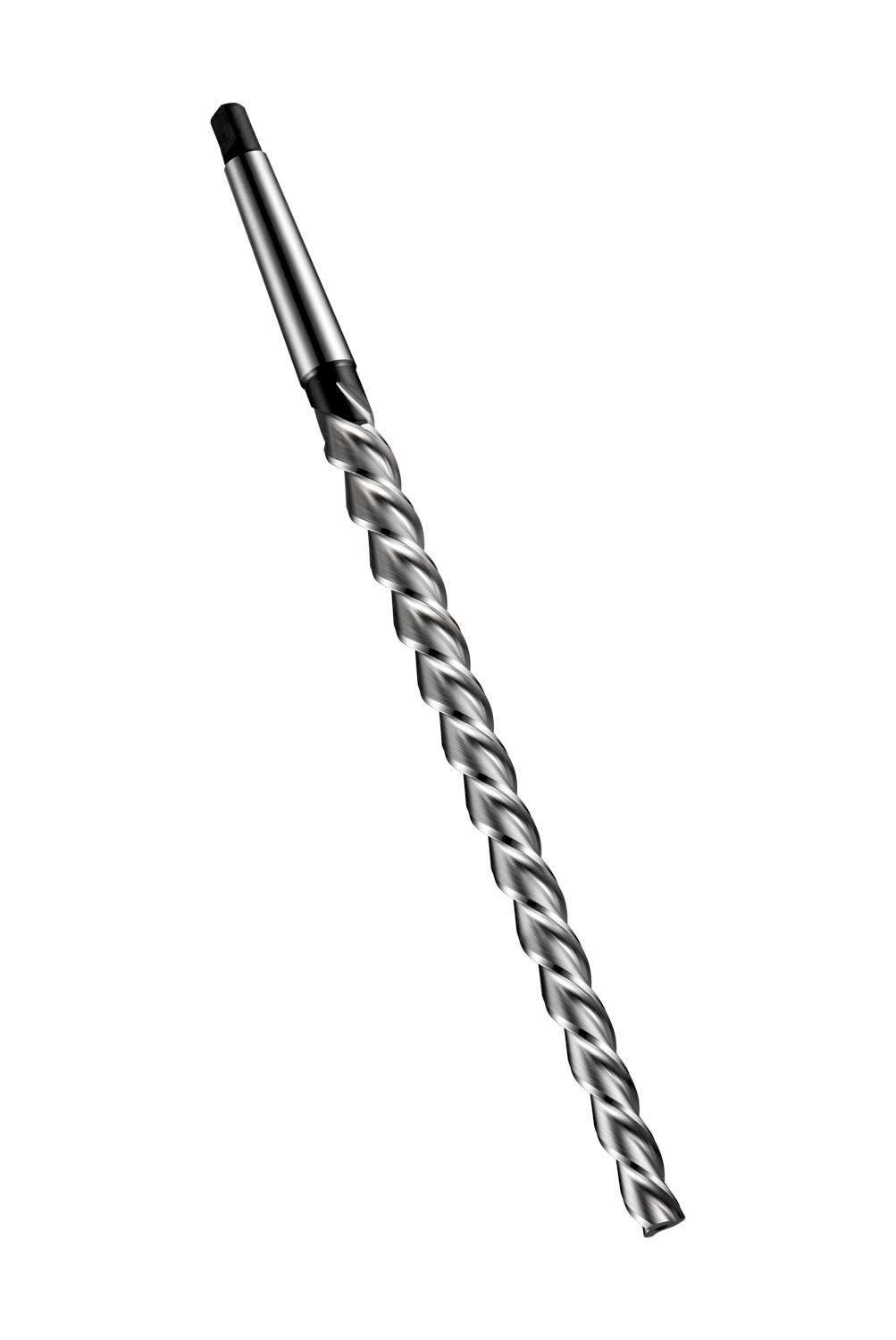

Taper pin machine reamer with left hand fast spiral flutes and a Morse taper shank, small end diameter 9.90mm with an overall length of 257mm, a flute length of 175mm and 13.40mm large end diameter, according to DIN 2180 standard for reaming pin holes with a 1:50 taper into which 10.00mm taper pins will fit, cobalt based HSS-E with bright finish for machining free machining and plain carbon steel, grey and malleable cast-iron, wrought and cast aluminium and copper or copper alloys

Additional information

Weight 0.3179 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760053973
Product number (SAP): 86013245
Ordering code ANSI: B95410.0
Gross weight – grams: 155.9
Nominal diameter: 10
Cutting diameter step – millimeter: 9.9 mm
Cutting diameter second cutting step – millimeters (DC_2): 13.4 mm
Overall length – millimeter (OAL): 257 mm
Length chip flute – millimeter (LCF): 175 mm
Flute count (NOF): 3
Connection size code machine side (CZC MS): MK 1
ISO: B95410.0

Brand

DORMER
