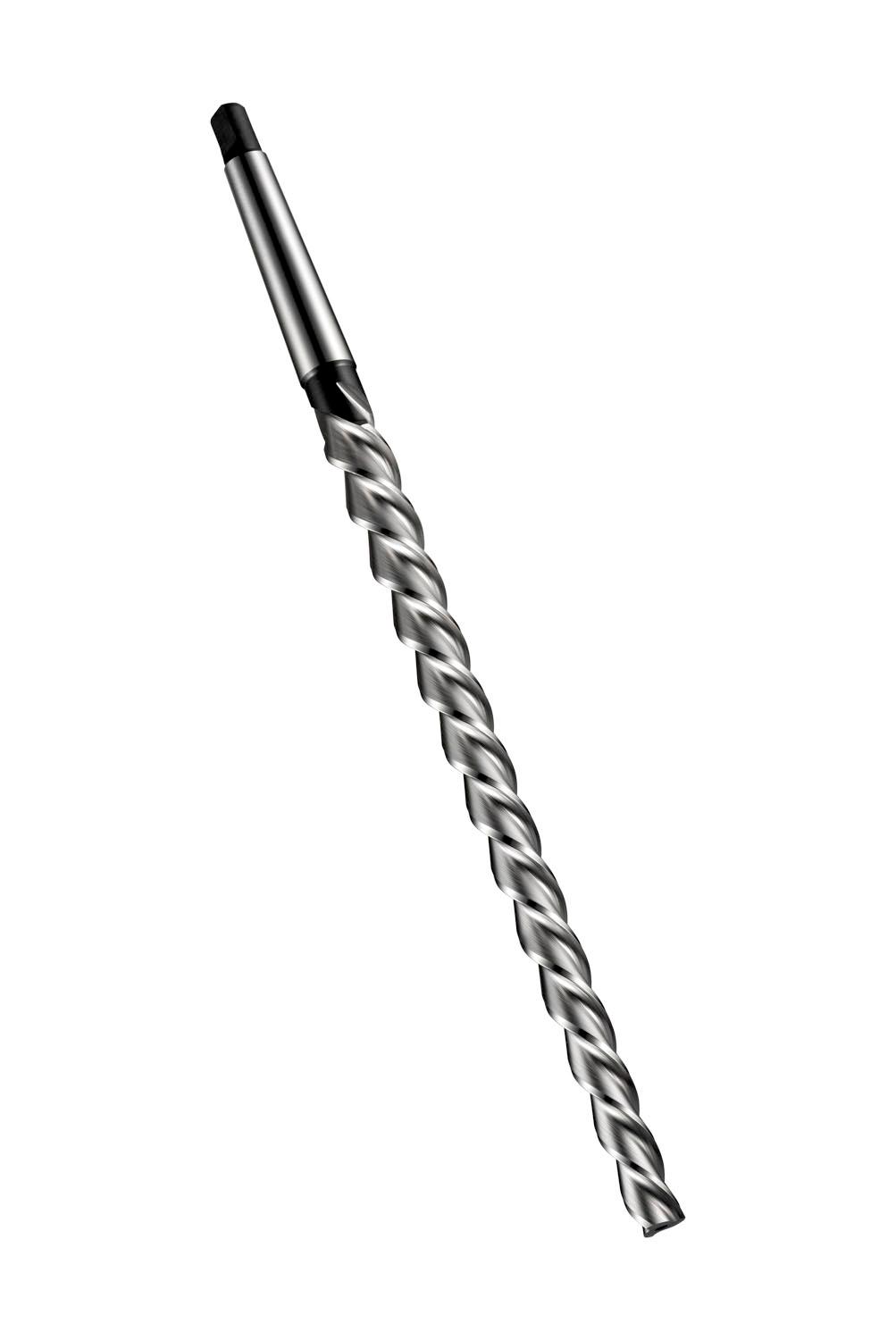

DORMER B95414.0 HSS Reamers

Product Code: B95414.0

$420.34$382.13 Ex. GST

Product Code: B95414.0 SKU B95414.0 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Taper pin machine reamer with left hand fast spiral flutes and a Morse taper shank, small end diameter 13.86mm with an overall length of 295mm, a flute length of 194mm and 17.74mm large end diameter, according to DIN 2180 standard for reaming pin holes with a 1:50 taper into which 14.00mm taper pins will fit, cobalt based HSS-E with bright finish for machining free machining and plain carbon steel, grey and malleable cast-iron, wrought and cast aluminium and copper or copper alloys

Additional information

Weight 0.4081 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760054000
Product number (SAP): 86013248
Ordering code ANSI: B95414.0
Gross weight – grams: 328.4
Nominal diameter: 14
Cutting diameter step – millimeter: 13.86 mm
Cutting diameter second cutting step – millimeters (DC_2): 17.74 mm
Overall length – millimeter (OAL): 295 mm
Length chip flute – millimeter (LCF): 194 mm
Flute count (NOF): 3
Connection size code machine side (CZC MS): MK 2
ISO: B95414.0

Brand

DORMER
