DORMER B95425.0 HSS Reamers

Product Code: B95425.0

$1,268.96$1,153.60 Ex. GST

Product Code: B95425.0 SKU B95425.0 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

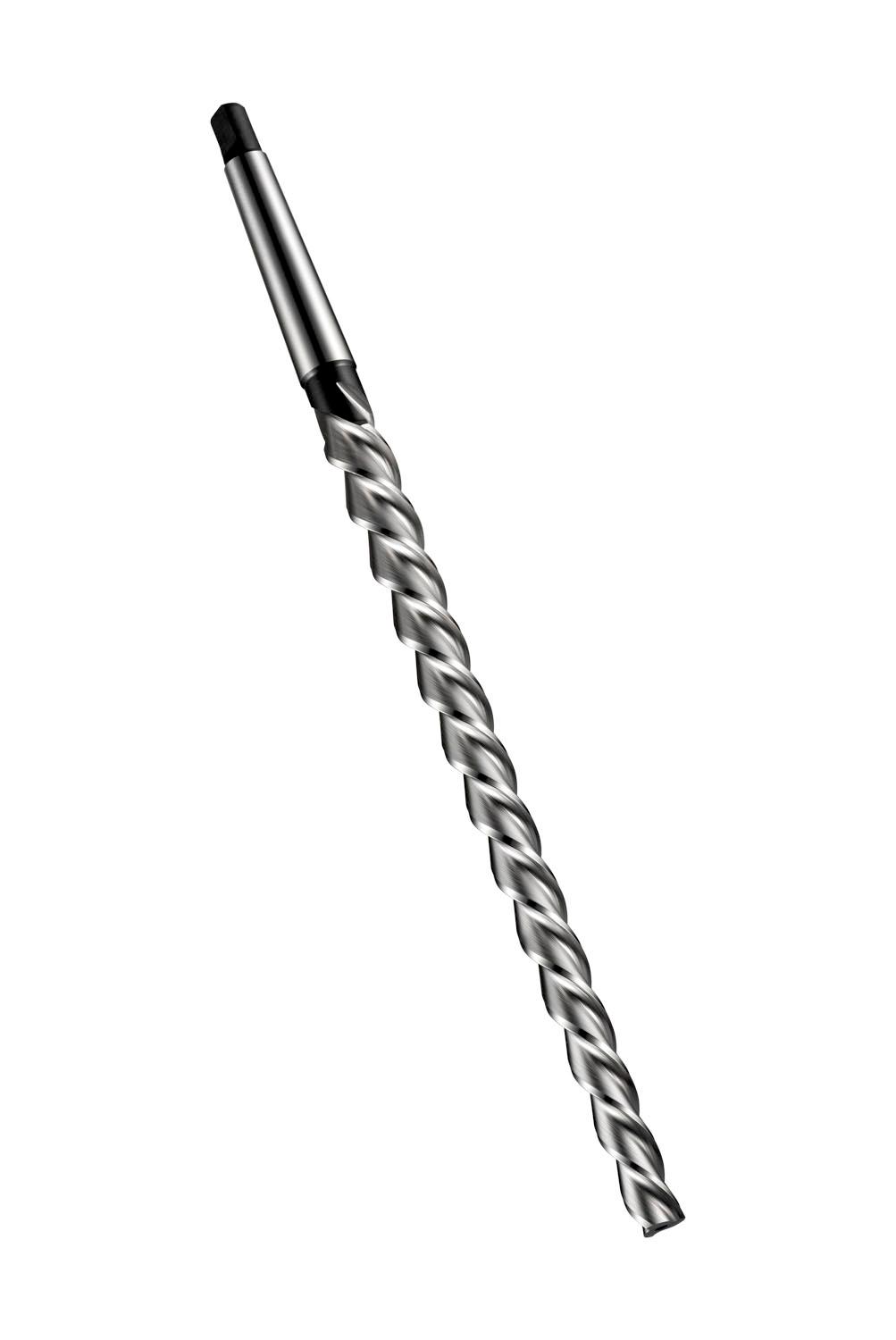

Taper pin machine reamer with left hand fast spiral flutes and a Morse taper shank, small end diameter 24.70mm with an overall length of 427mm, a flute length of 300mm and 30.70mm large end diameter, according to DIN 2180 standard for reaming pin holes with a 1:50 taper into which 25.00mm taper pins will fit, cobalt based HSS-E with bright finish for machining free machining and plain carbon steel, grey and malleable cast-iron, wrought and cast aluminium and copper or copper alloys

Additional information

Weight 1.2320 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760054031
Product number (SAP): 86013251
Ordering code ANSI: B95425.0
Gross weight – grams: 1360
Nominal diameter: 25
Cutting diameter step – millimeter: 24.7 mm
Cutting diameter second cutting step – millimeters (DC_2): 30.7 mm
Overall length – millimeter (OAL): 427 mm
Length chip flute – millimeter (LCF): 300 mm
Flute count (NOF): 3
Connection size code machine side (CZC MS): MK 3
ISO: B95425.0

Brand

DORMER
