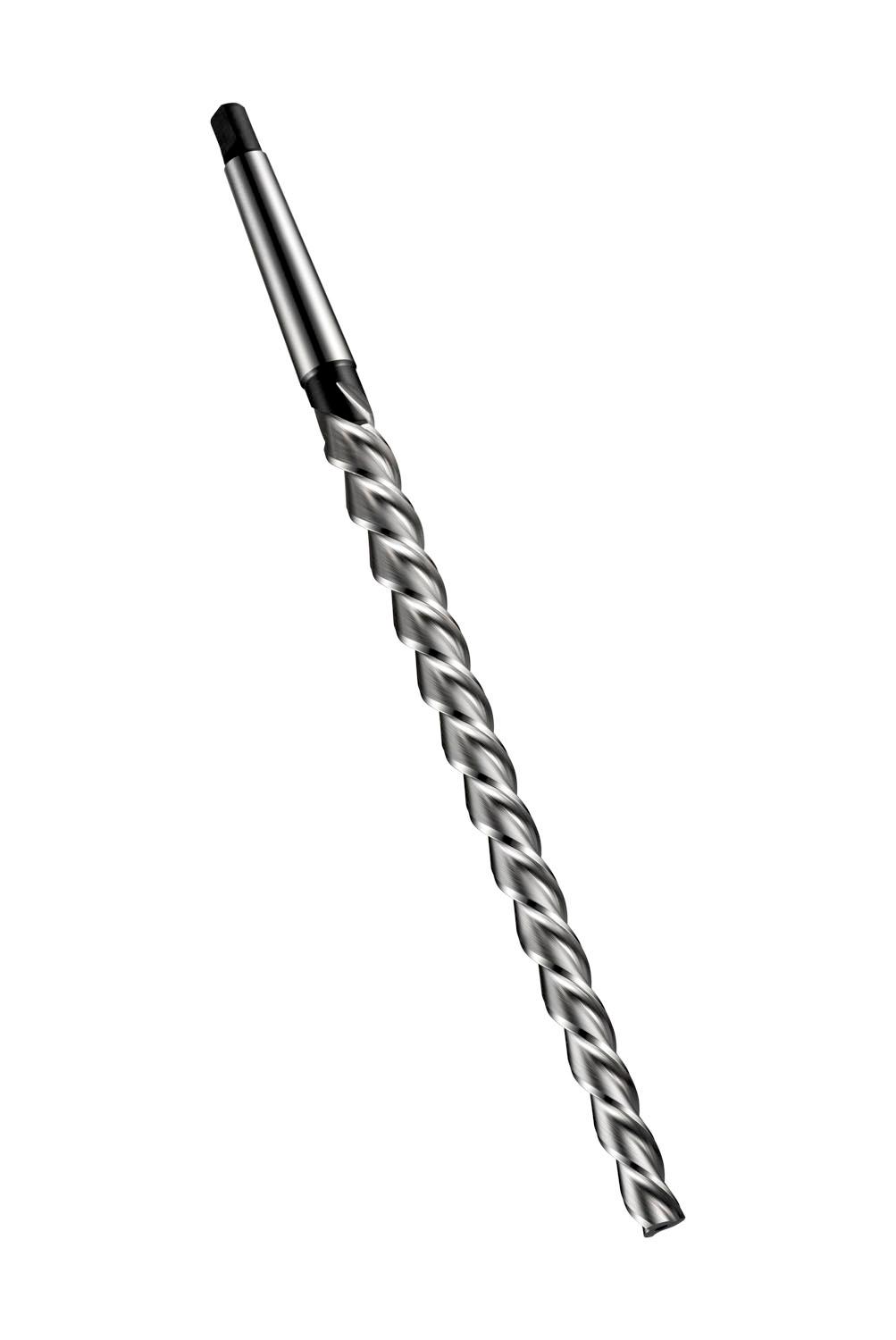

DORMER B9548.0 HSS Reamers

Product Code: B9548.0

$292.31$265.74 Ex. GST

Product Code: B9548.0 SKU B9548.0 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Taper pin machine reamer with left hand fast spiral flutes and a Morse taper shank, small end diameter 7.90mm with an overall length of 227mm, a flute length of 145mm and 10.80mm large end diameter, according to DIN 2180 standard for reaming pin holes with a 1:50 taper into which 8.00mm taper pins will fit, cobalt based HSS-E with bright finish for machining free machining and plain carbon steel, grey and malleable cast-iron, wrought and cast aluminium and copper or copper alloys

Additional information

Weight 0.2838 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760054079
Product number (SAP): 86013255
Ordering code ANSI: B9548.0
Gross weight – grams: 110.3
Nominal diameter: 8
Cutting diameter step – millimeter: 7.9 mm
Cutting diameter second cutting step – millimeters (DC_2): 10.8 mm
Overall length – millimeter (OAL): 227 mm
Length chip flute – millimeter (LCF): 145 mm
Flute count (NOF): 3
Connection size code machine side (CZC MS): MK 1
ISO: B9548.0

Brand

DORMER
