DORMER C1101/16 HSCO Cutters

Description

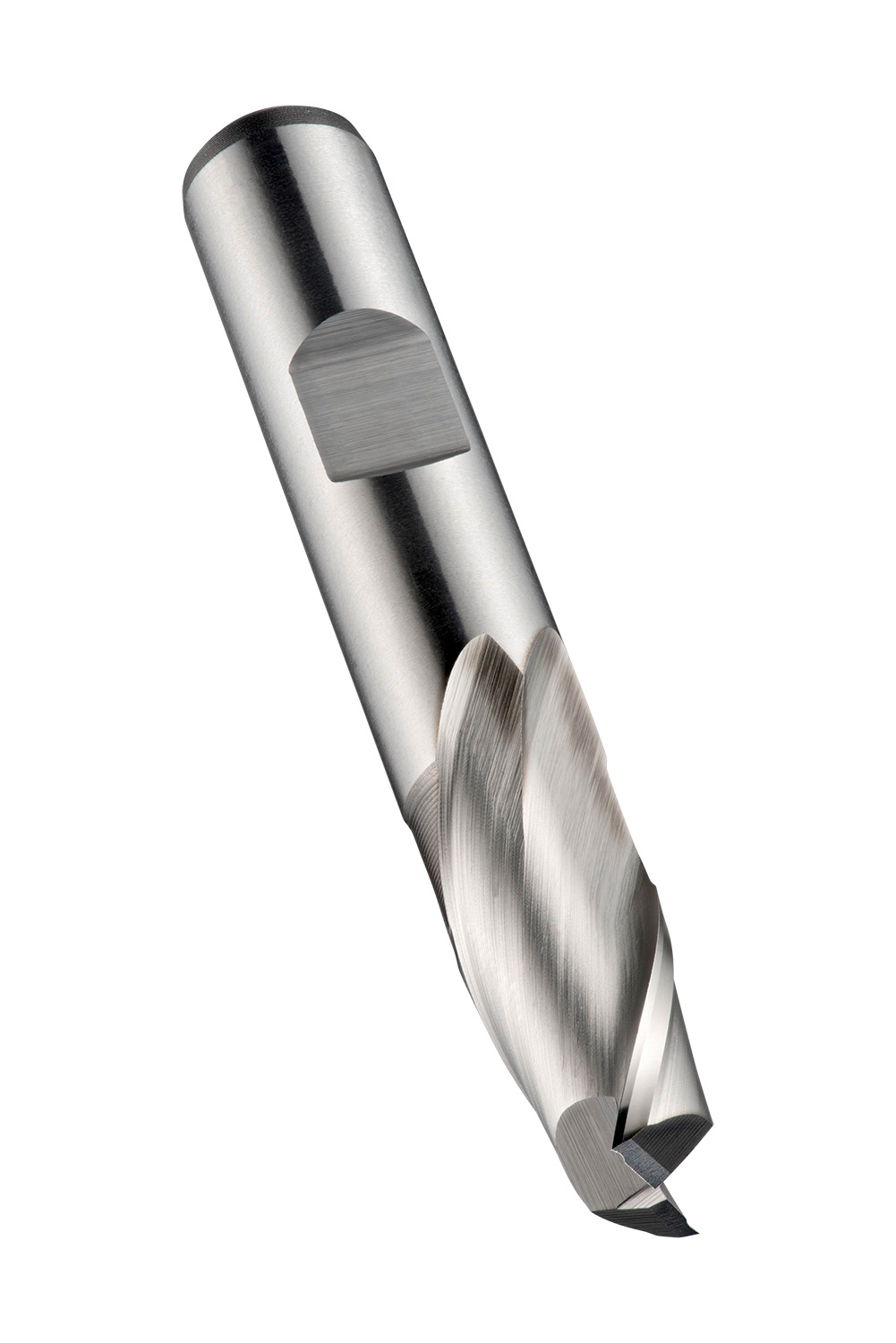

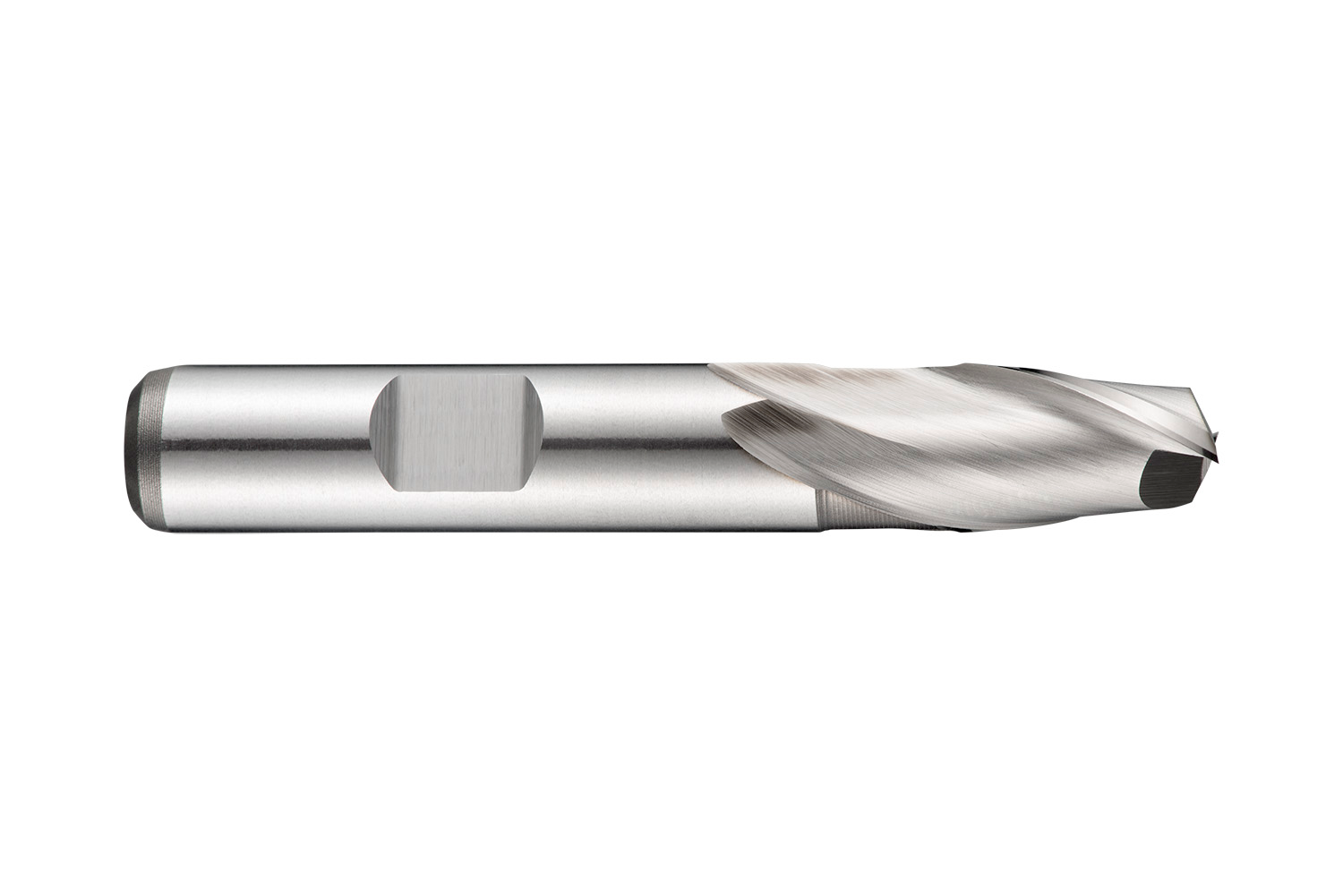

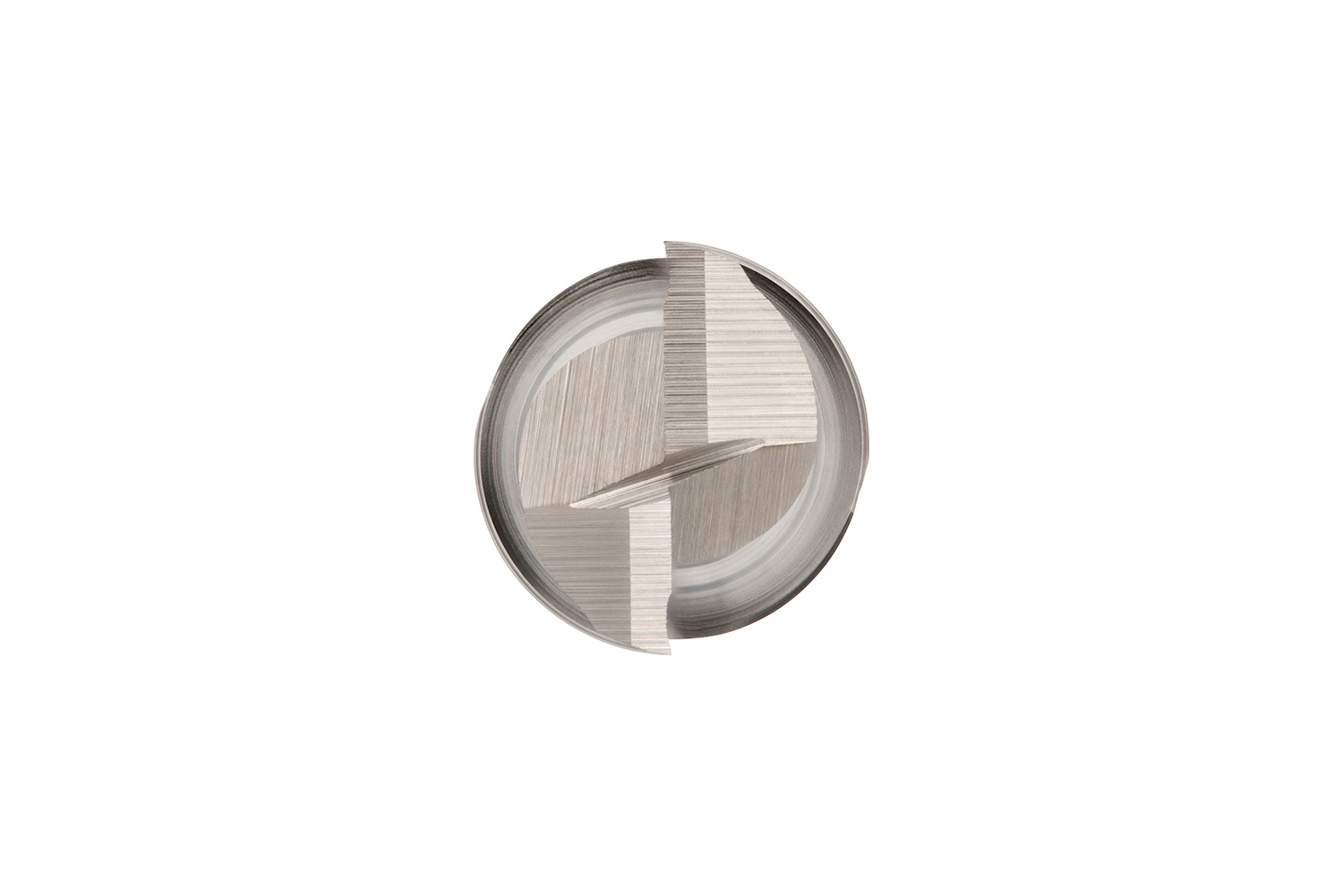

Extra short series slot drill with 2 flutes, diameter 1/16″ with 3mm length of cut and 47mm overall length, according to DIN 327 D standard with a 6mm Weldon shank, powder metallurgical HSS-E with bright finish, 30° helix and 12° rake angle for shoulder milling, slot milling and ramping in free machining steel and copper or copper alloys

Additional information

Weight	0.0494 kg
Dimensions	Length 4.7cm x Width cm x Depth cm
barcode

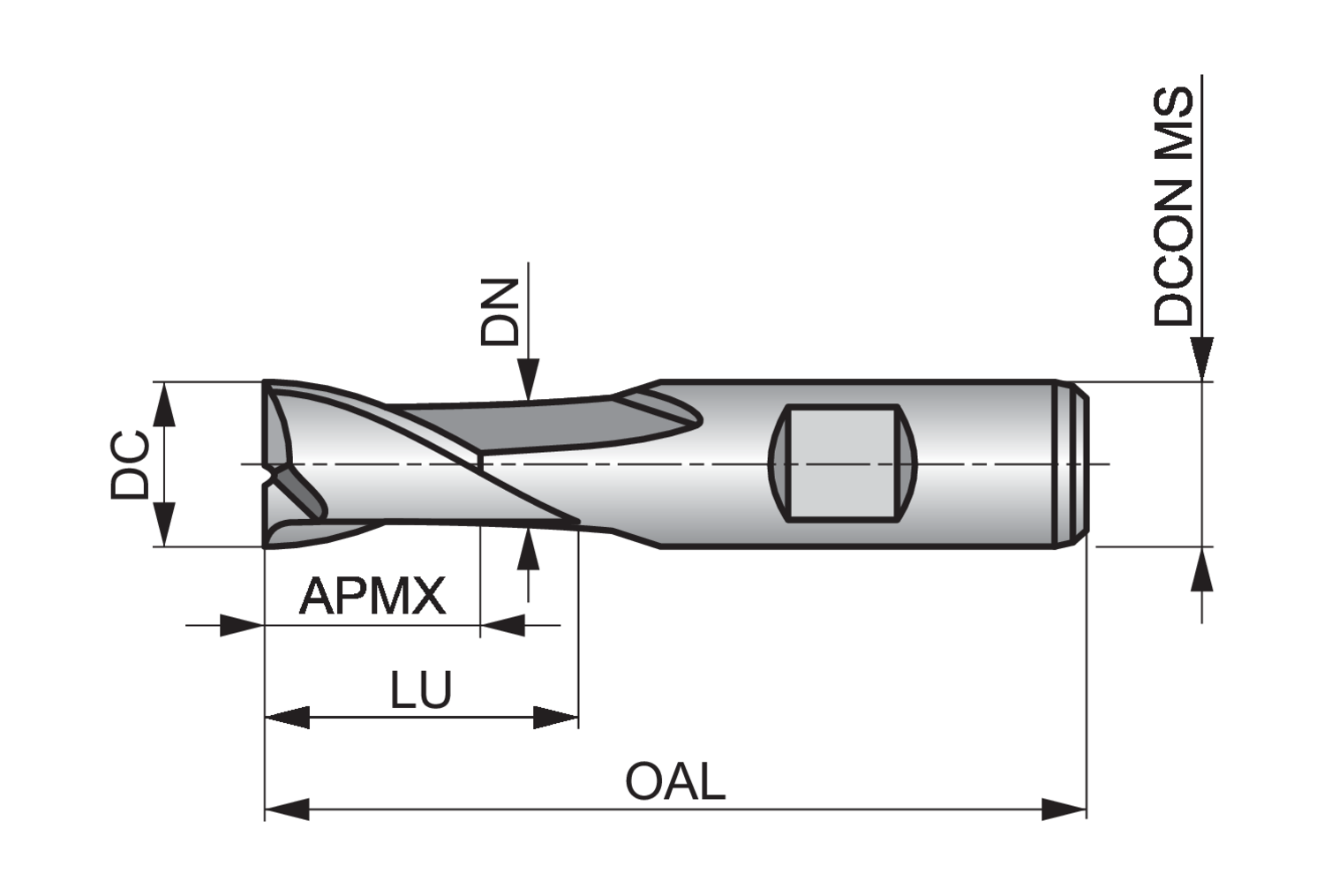

Additional Information	Description: Value EAN number: 7320760639795 Product number (SAP): 86013319 Ordering code ANSI: C1101/16 Gross weight – grams: 10.9 Cutting diameter – fractional inch (DC): 1/16 Cutting diameter – millimeter (DC): 1.59 mm Connection diameter – millimeter (DCON MS): 6 mm Depth of cut maximum – millimeter (APMX): 3 mm Overall length – millimeter (OAL): 47 mm Flute count (NOF): 2 Neck diameter – millimeter (DN): 1.59 mm Radial rake angle (GAMF): 12 With Neck: Yes ISO: C1101/16

Need Technical Advice?

Description

Additional information

Brand

DORMER
