DORMER C11013/32 HSCO Cutters

Product Code: C11013/32

$88.95$80.86 Ex. GST

Product Code: C11013/32 SKU C11013/32 Categories , ,
DORMER C11013/32 HSCO Cutters

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

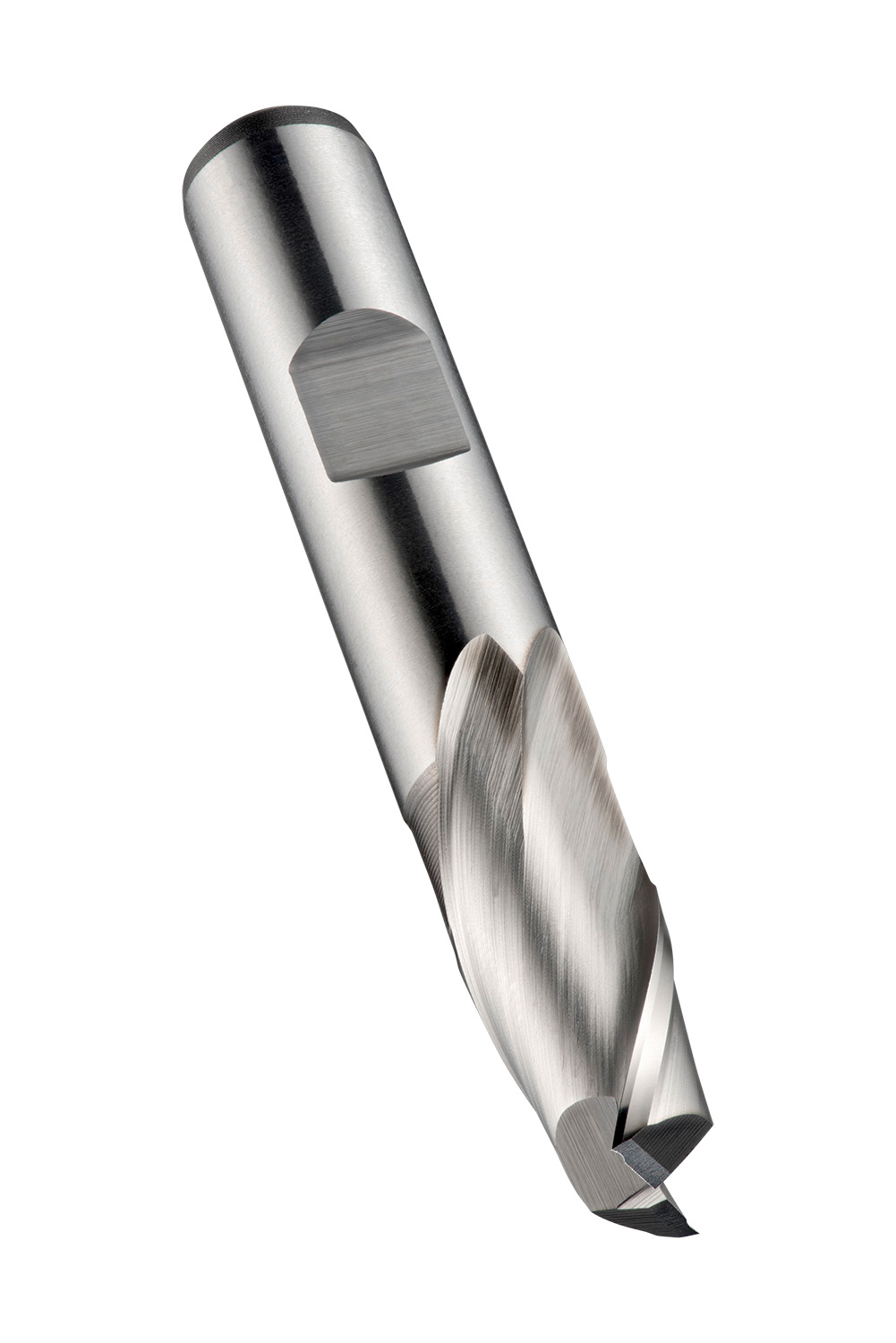

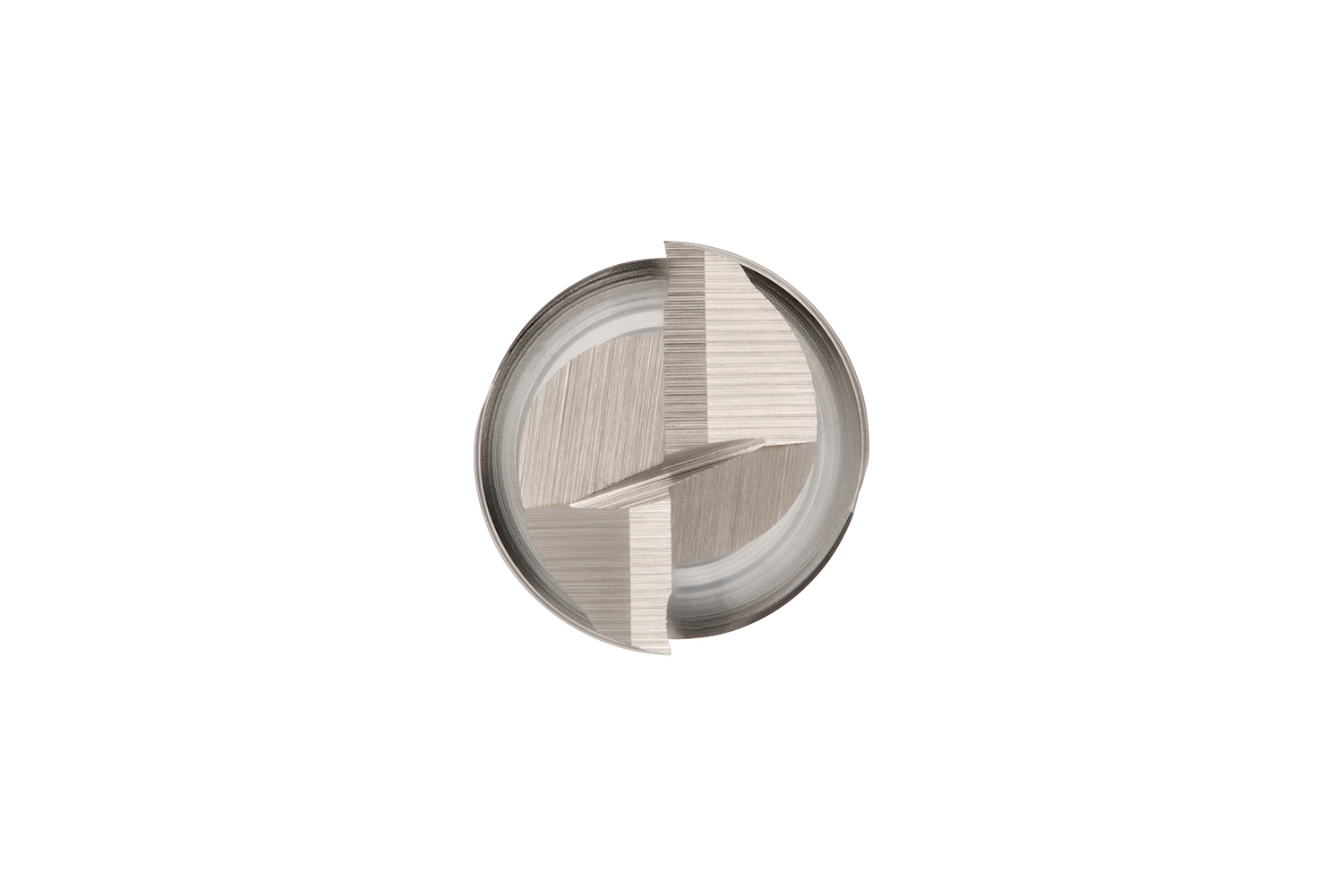

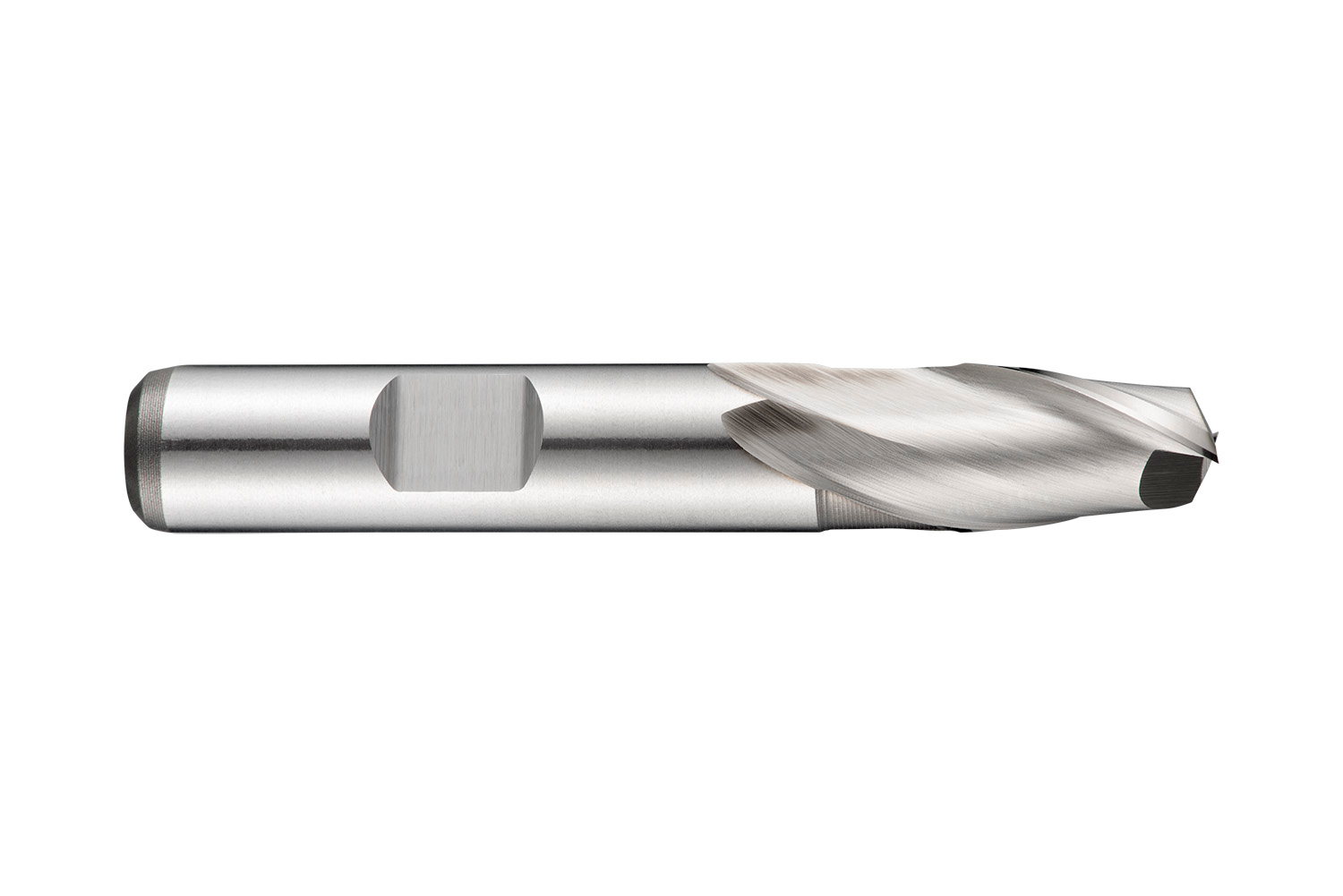

Extra short series slot drill with 2 flutes, diameter 13/32″ with 13mm length of cut and 70mm overall length, according to DIN 327 D standard with a 12mm Weldon shank, powder metallurgical HSS-E with bright finish, 30° helix and 12° rake angle for shoulder milling, slot milling and ramping in free machining steel and copper or copper alloys

Additional information

Weight 0.0864 kg
Dimensions Length 7cm x Width cm x Depth cm
barcode
Additional Information

Description: Value
EAN number: 7320760639863
Product number (SAP): 86013333
Ordering code ANSI: C11013/32
Gross weight – grams: 56

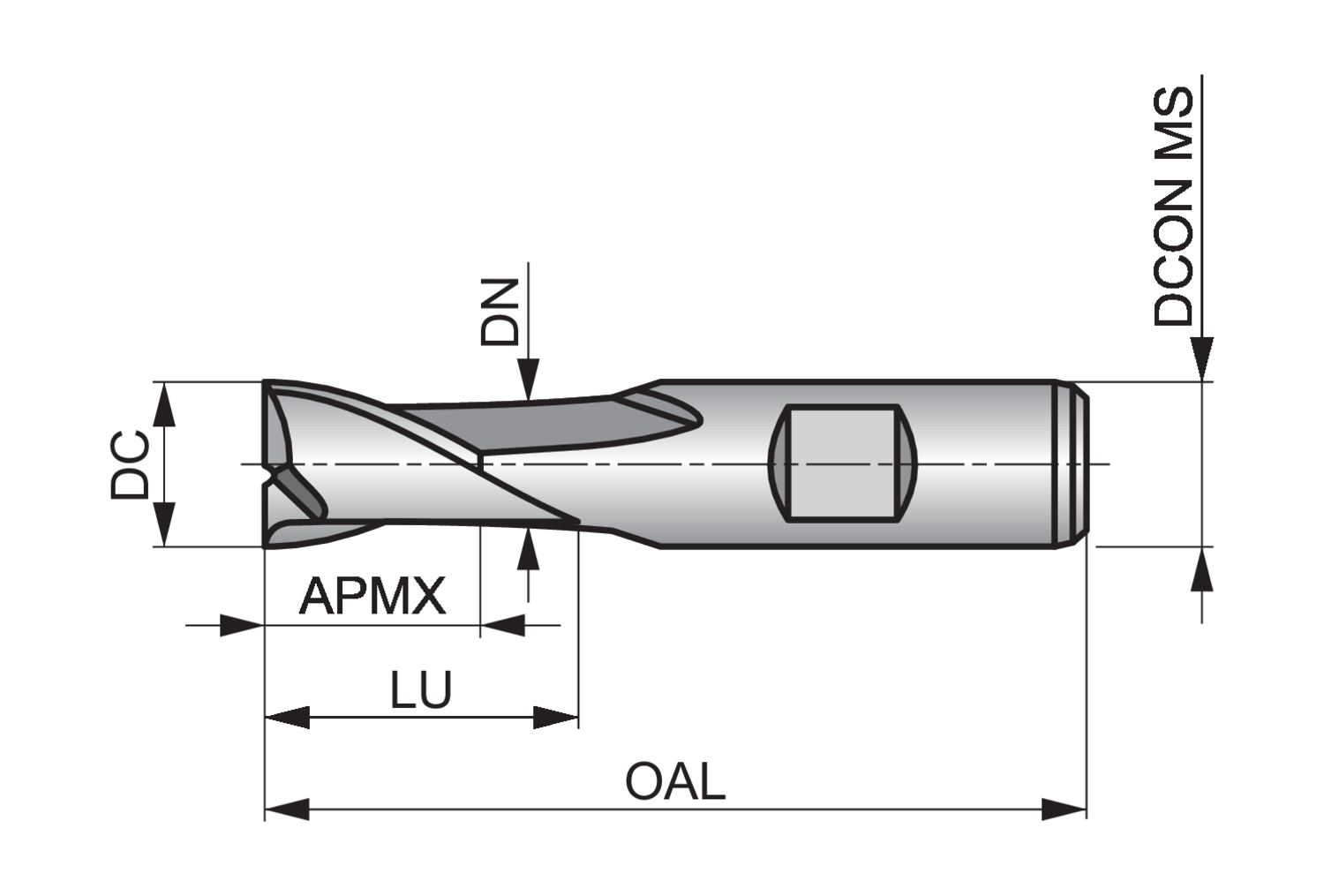

Cutting diameter – fractional inch (DC): 13/32
Cutting diameter – millimeter (DC): 10.32 mm
Connection diameter – millimeter (DCON MS): 12 mm
Depth of cut maximum – millimeter (APMX): 13 mm
Overall length – millimeter (OAL): 70 mm
Flute count (NOF): 2
Neck diameter – millimeter (DN): 10.32 mm
Radial rake angle (GAMF): 12
With Neck: Yes
ISO: C11013/32

Brand

DORMER
