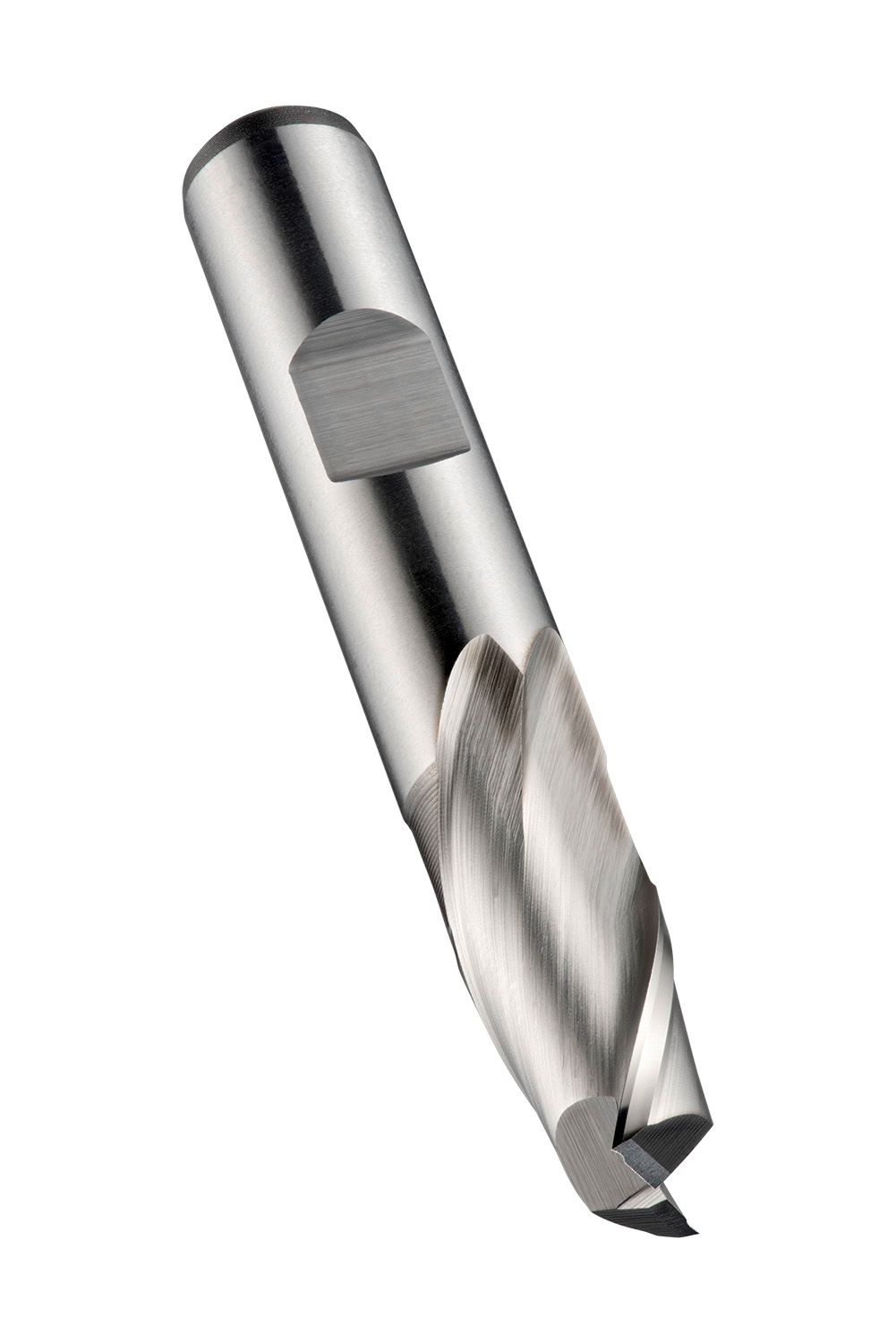

DORMER C11014.0 HSCO Cutters

Product Code: C11014.0

$91.77$83.43 Ex. GST

Product Code: C11014.0 SKU C11014.0 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

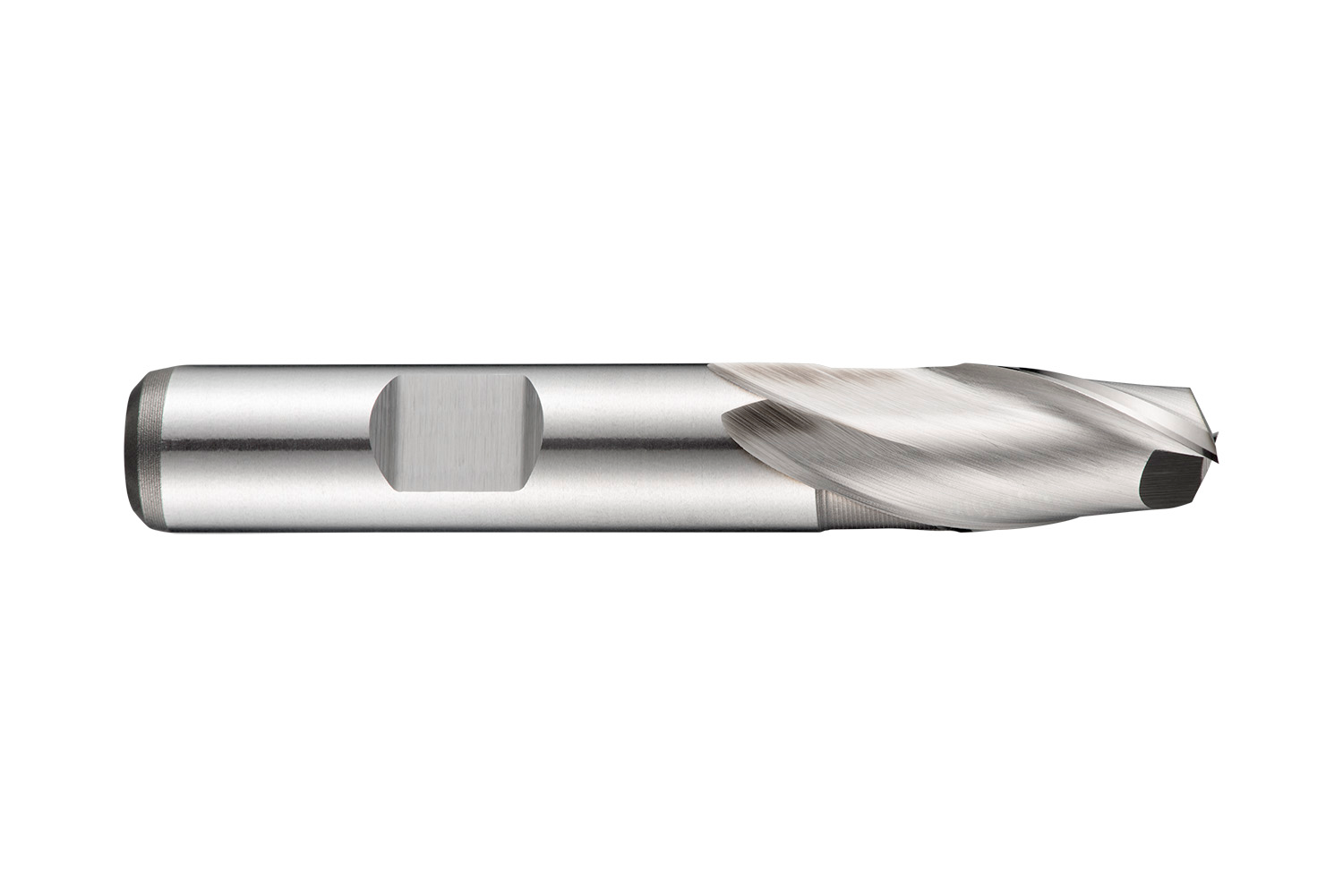

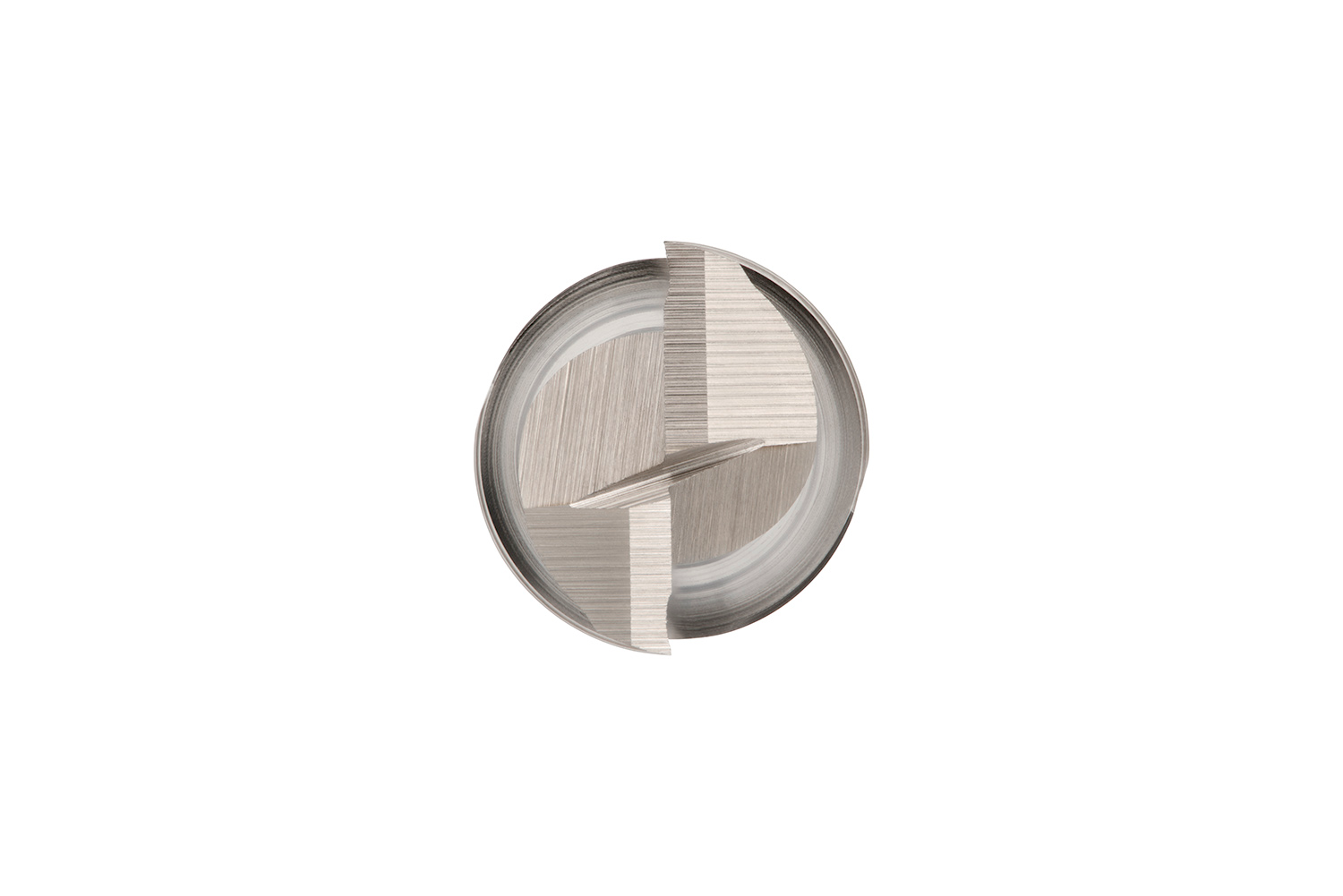

Extra short series slot drill with 2 flutes, diameter 14mm with 16mm length of cut, 73mm overall length and 27.5mm reach with neck relief, according to DIN 327 D standard with a 12mm Weldon shank, powder metallurgical HSS-E with bright finish, 30° helix and 12° rake angle for shoulder milling, slot milling and ramping in free machining steel and copper or copper alloys

Additional information

Weight 0.0891 kg
Dimensions Length 7.3cm x Width cm x Depth cm
barcode
Additional Information

Description: Value
EAN number: 7320760353240
Product number (SAP): 86013334
Ordering code ANSI: C11014.0
Gross weight – grams: 63

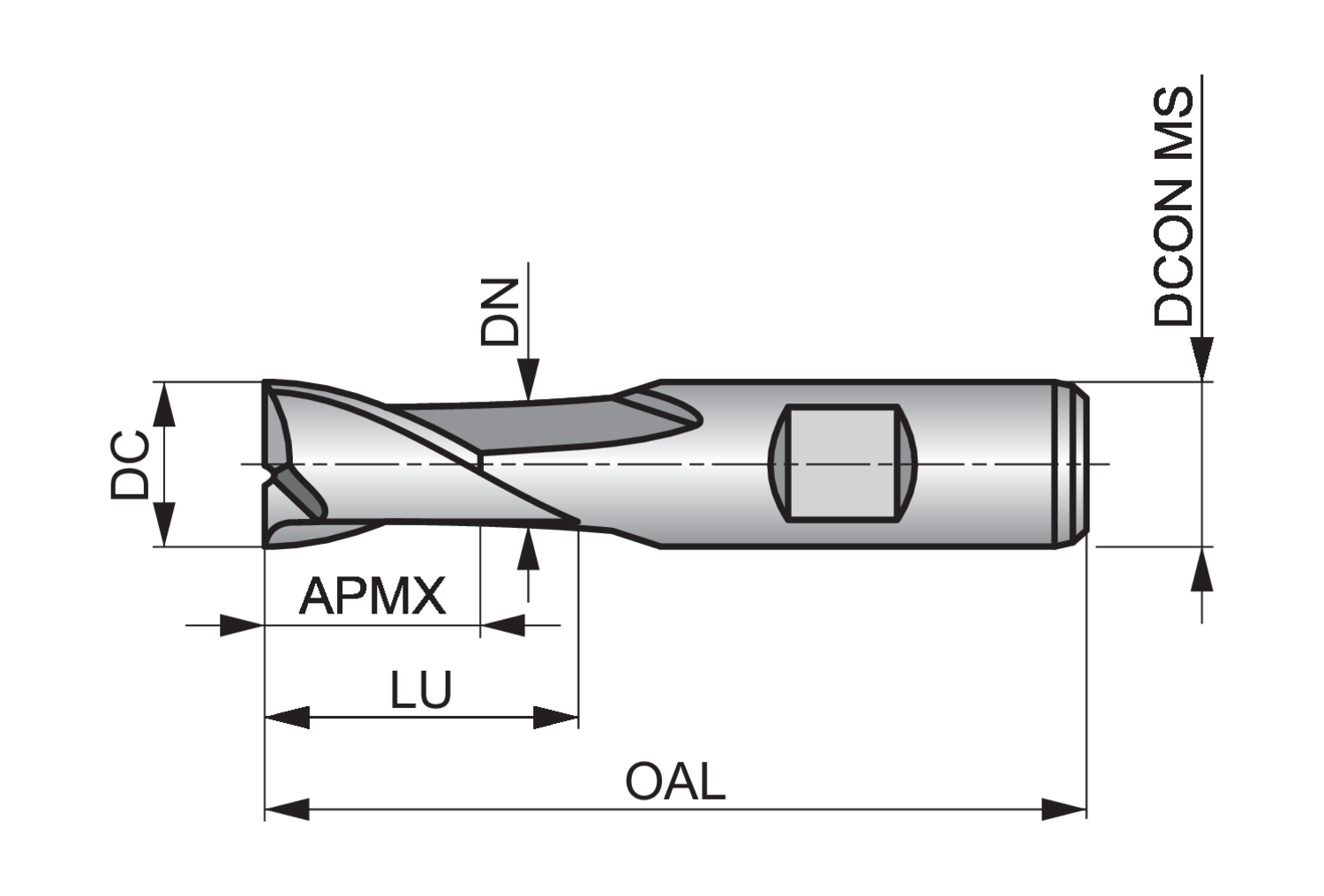

Cutting diameter – millimeter (DC): 14 mm
Connection diameter – millimeter (DCON MS): 12 mm
Depth of cut maximum – millimeter (APMX): 16 mm
Overall length – millimeter (OAL): 73 mm
Flute count (NOF): 2
Usable Length – millimeter (LU): 27.5 mm
Neck diameter – millimeter (DN): 11.5 mm
Radial rake angle (GAMF): 12
With Neck: Yes
ISO: C11014.0

Brand

DORMER
