DORMER C1102.0 HSCO Cutters

Product Code: C1102.0

$43.05$39.14 Ex. GST

Product Code: C1102.0 SKU C1102.0 Categories , ,
DORMER C1102.0 HSCO Cutters

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

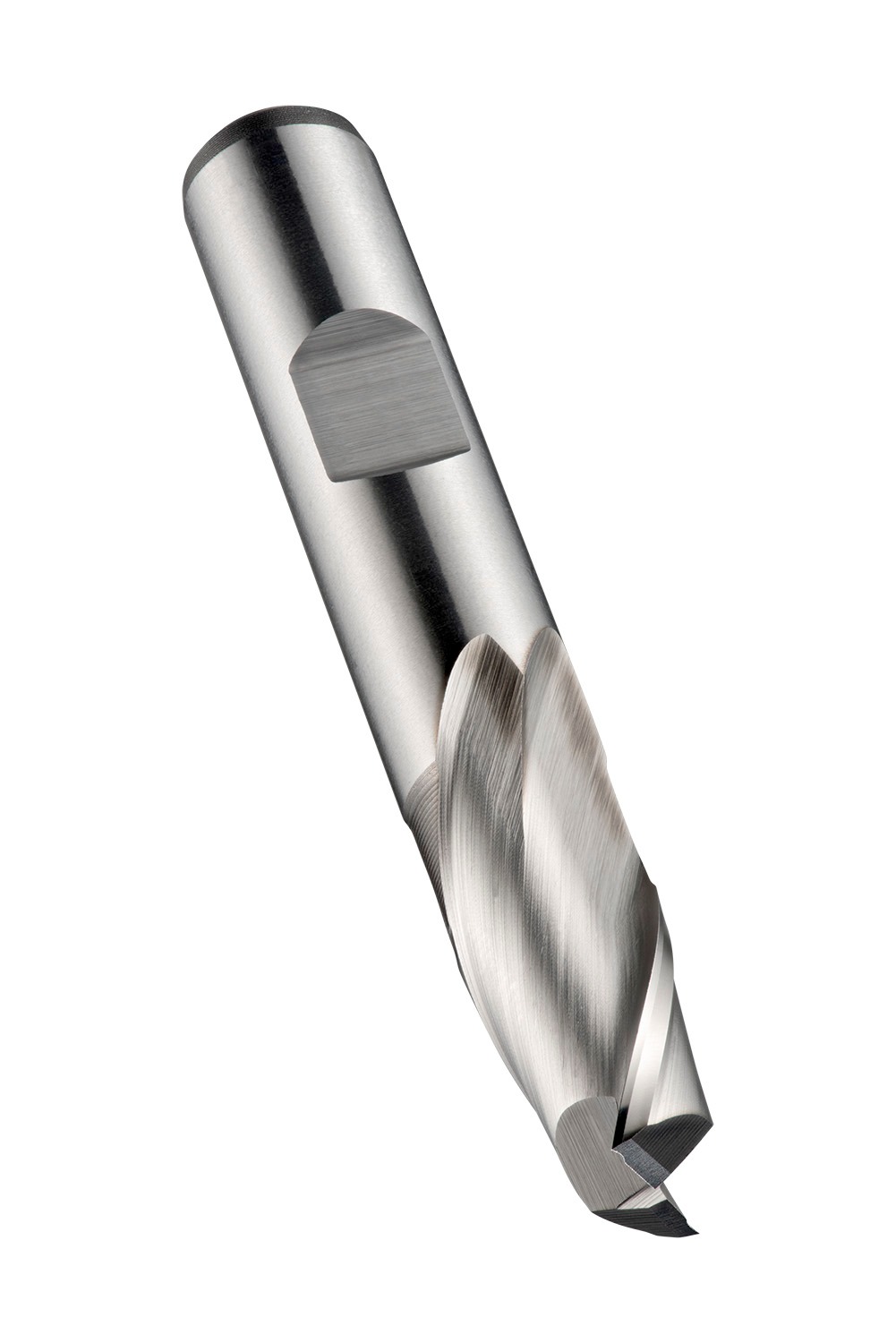

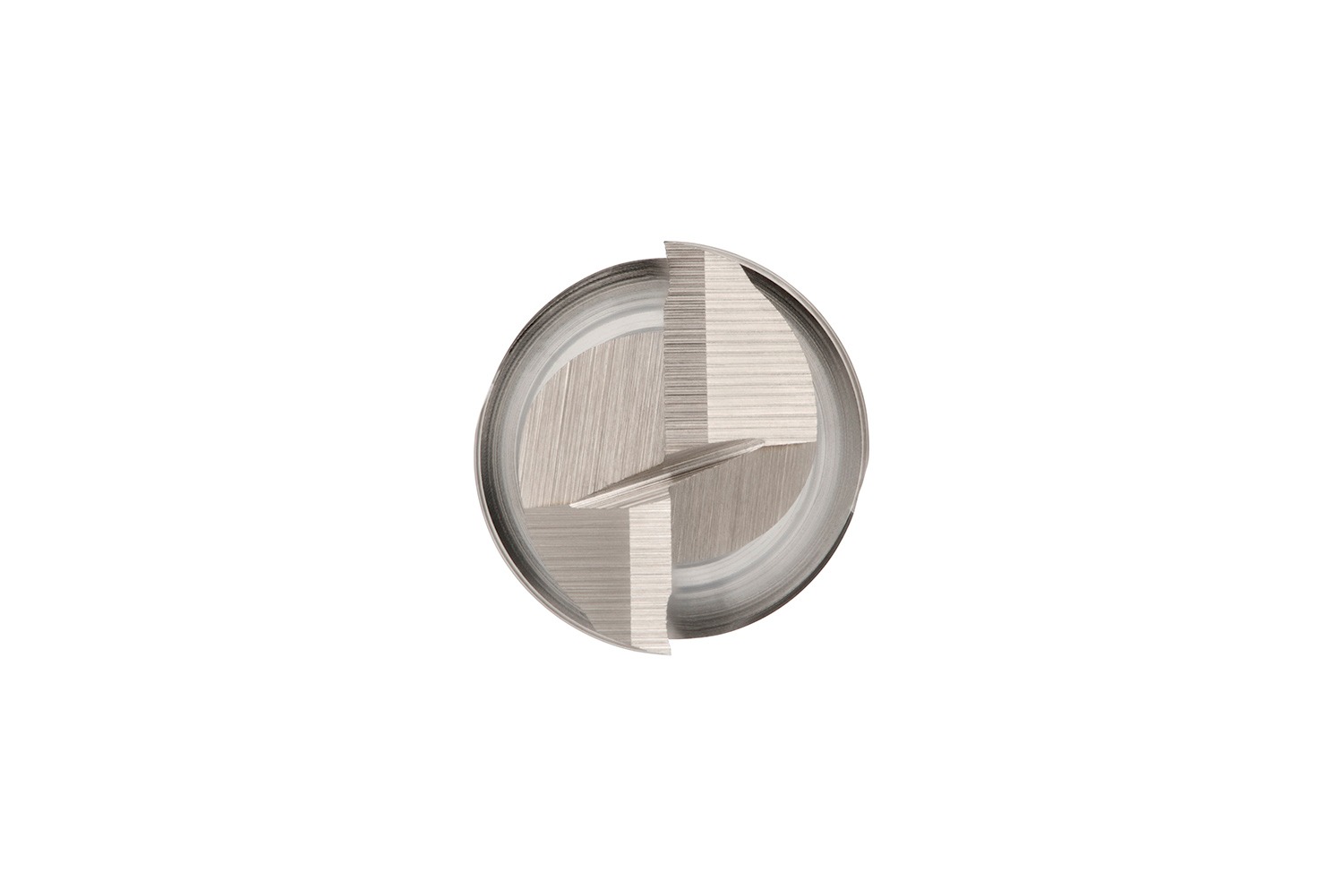

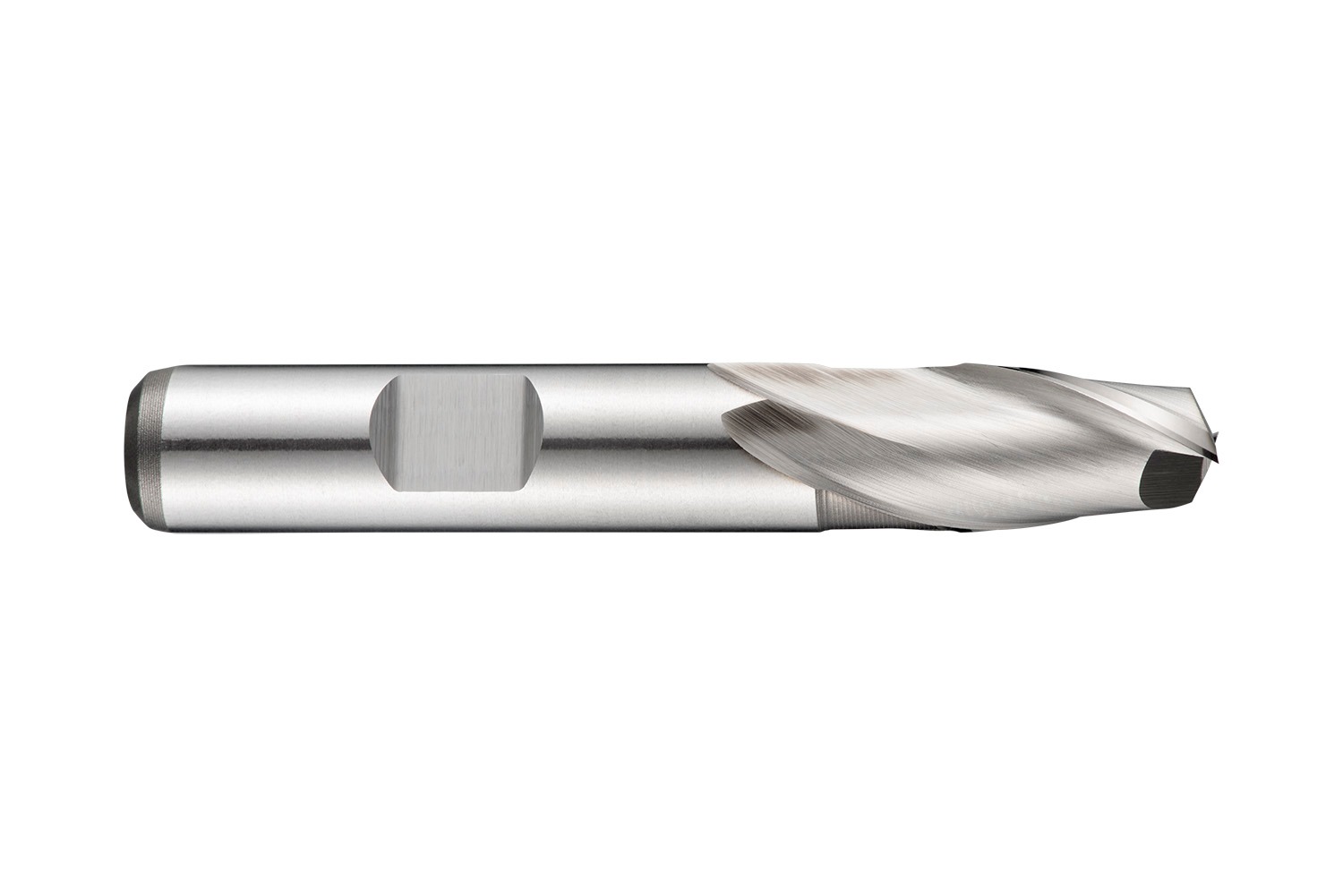

Extra short series slot drill with 2 flutes, diameter 2mm with 4mm length of cut and 48mm overall length, according to DIN 327 D standard with a 6mm Weldon shank, powder metallurgical HSS-E with bright finish, 30° helix and 12° rake angle for shoulder milling, slot milling and ramping in free machining steel and copper or copper alloys

Additional information

Weight 0.0418 kg
Dimensions Length 4.8cm x Width cm x Depth cm
barcode
Additional Information

Description: Value
EAN number: 7320760353301
Product number (SAP): 86013344
Ordering code ANSI: C1102.0
Gross weight – grams: 11

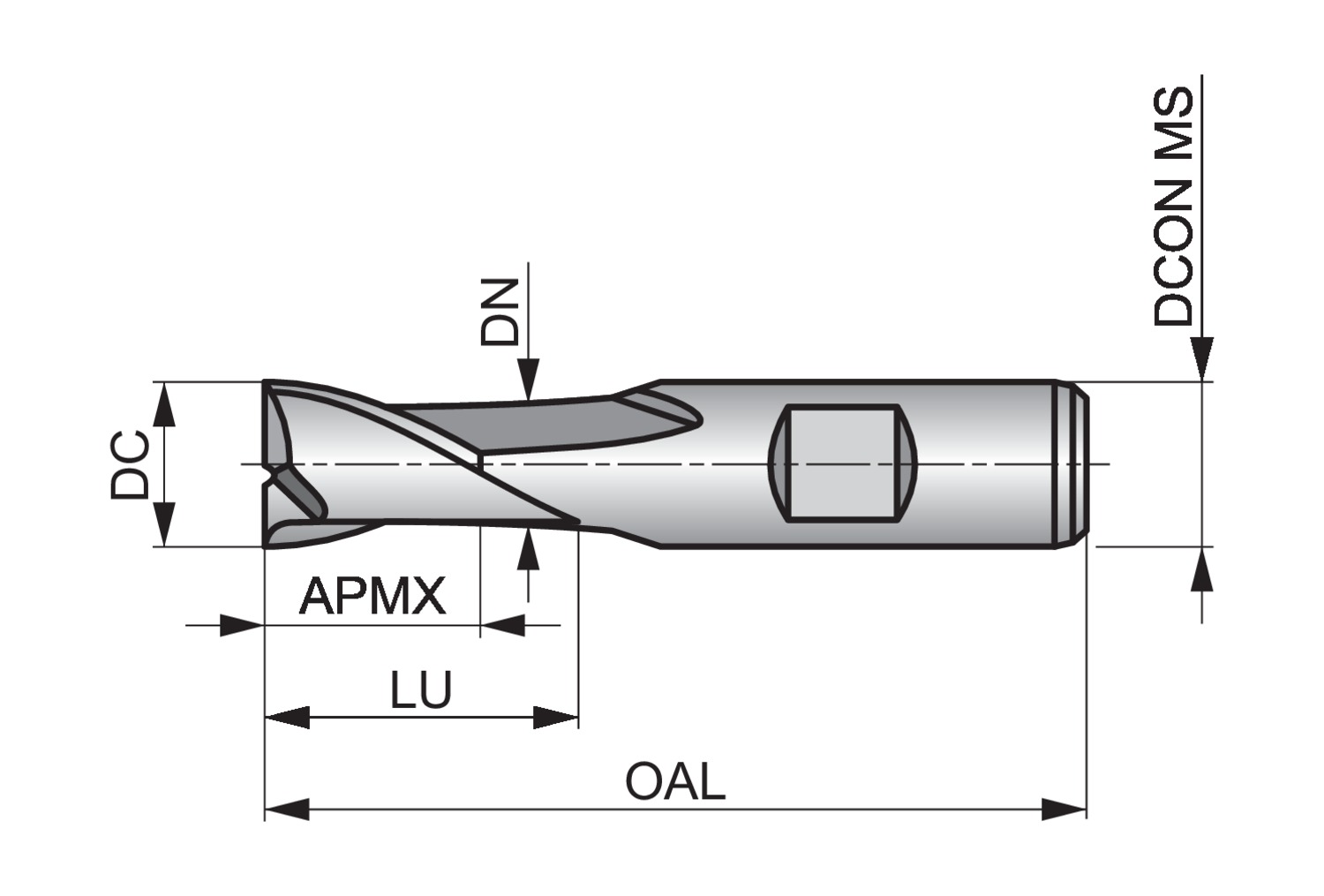

Cutting diameter – millimeter (DC): 2 mm
Connection diameter – millimeter (DCON MS): 6 mm
Depth of cut maximum – millimeter (APMX): 4 mm
Overall length – millimeter (OAL): 48 mm
Flute count (NOF): 2
Neck diameter – millimeter (DN): 2 mm
Radial rake angle (GAMF): 12
With Neck: Yes
ISO: C1102.0

Brand

DORMER
