DORMER C1103/4 HSCO Cutters

Product Code: C1103/4

$175.62$159.65 Ex. GST

Product Code: C1103/4 SKU C1103/4 Categories , ,
DORMER C1103/4 HSCO Cutters

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

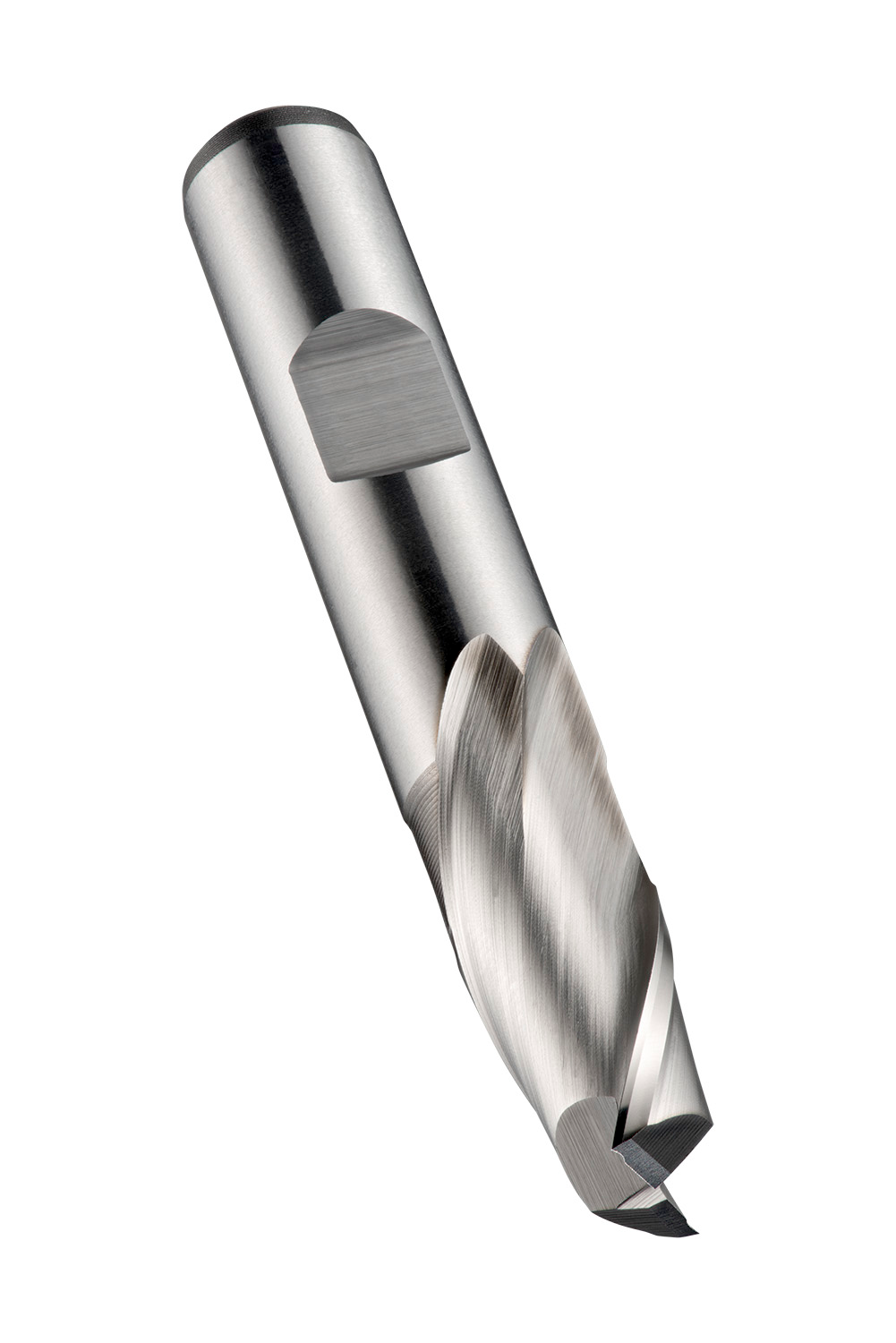

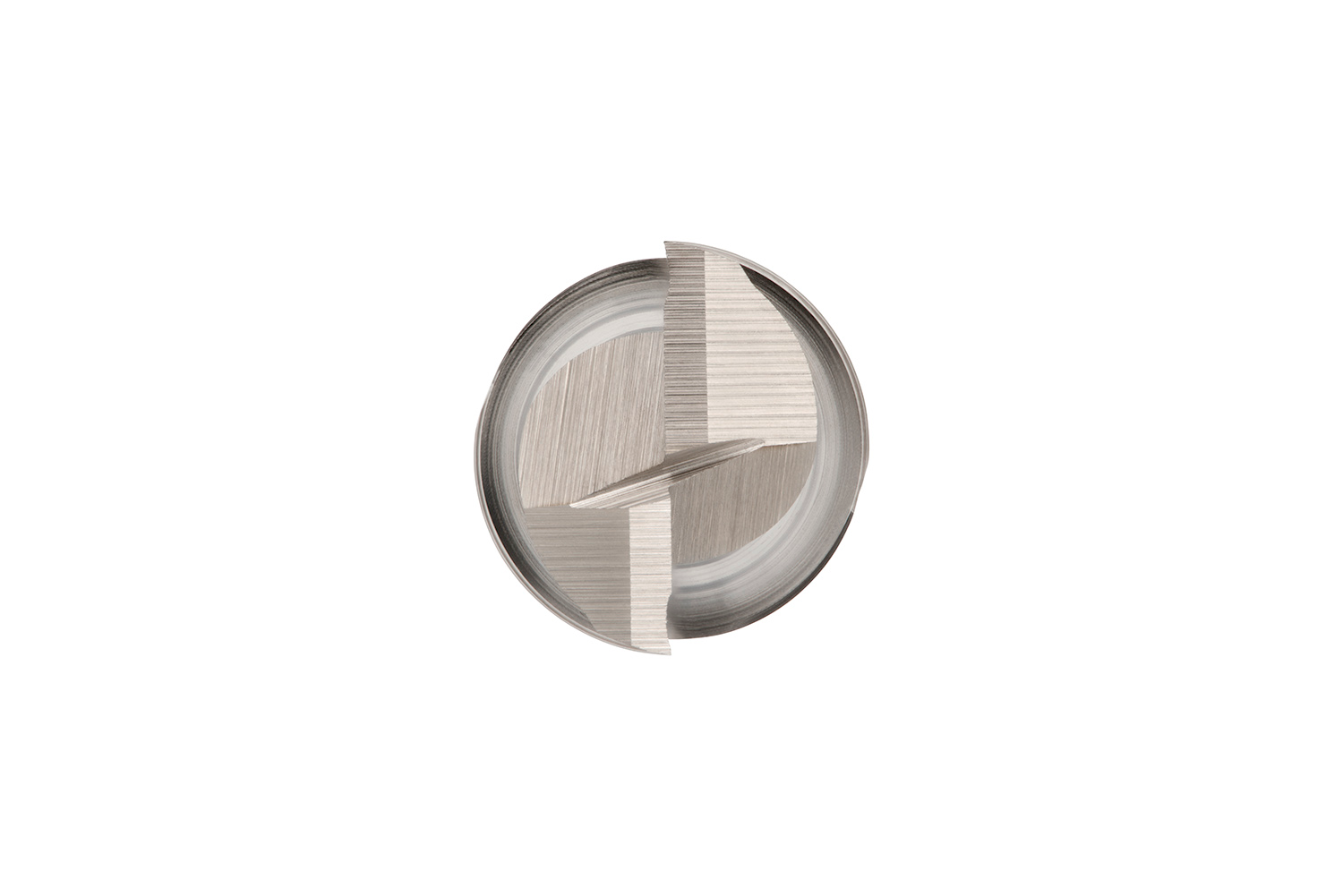

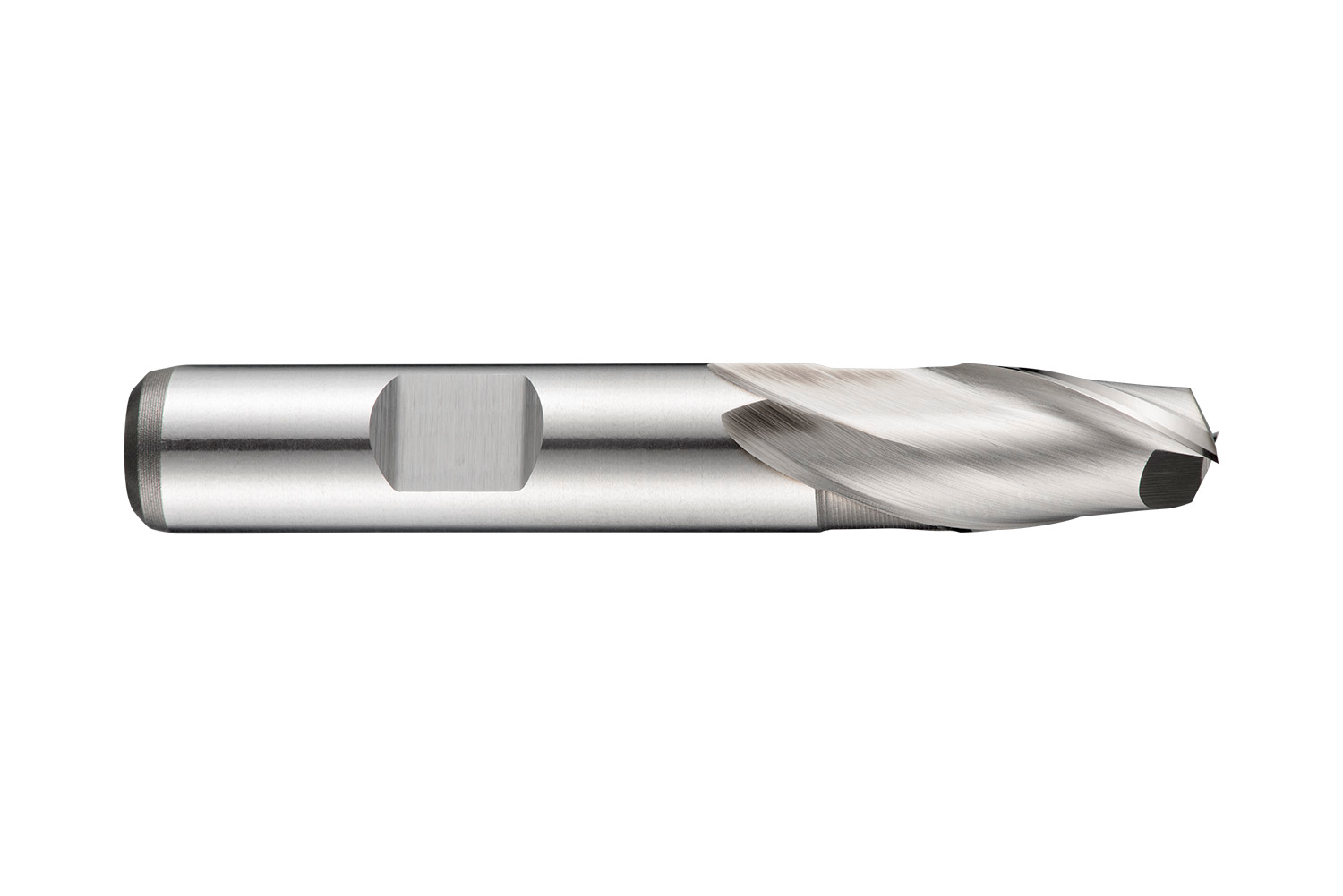

Extra short series slot drill with 2 flutes, diameter 3/4″ with 22mm length of cut, 88mm overall length and 37.5mm reach with neck relief, according to DIN 327 D standard with a 20mm Weldon shank, powder metallurgical HSS-E with bright finish, 30° helix and 12° rake angle for shoulder milling, slot milling and ramping in free machining steel and copper or copper alloys

Additional information

Weight 0.1705 kg
Dimensions Length 8.8cm x Width cm x Depth cm
barcode
Additional Information

Description: Value
EAN number: 7320760639931
Product number (SAP): 86013360
Ordering code ANSI: C1103/4
Gross weight – grams: 185.8

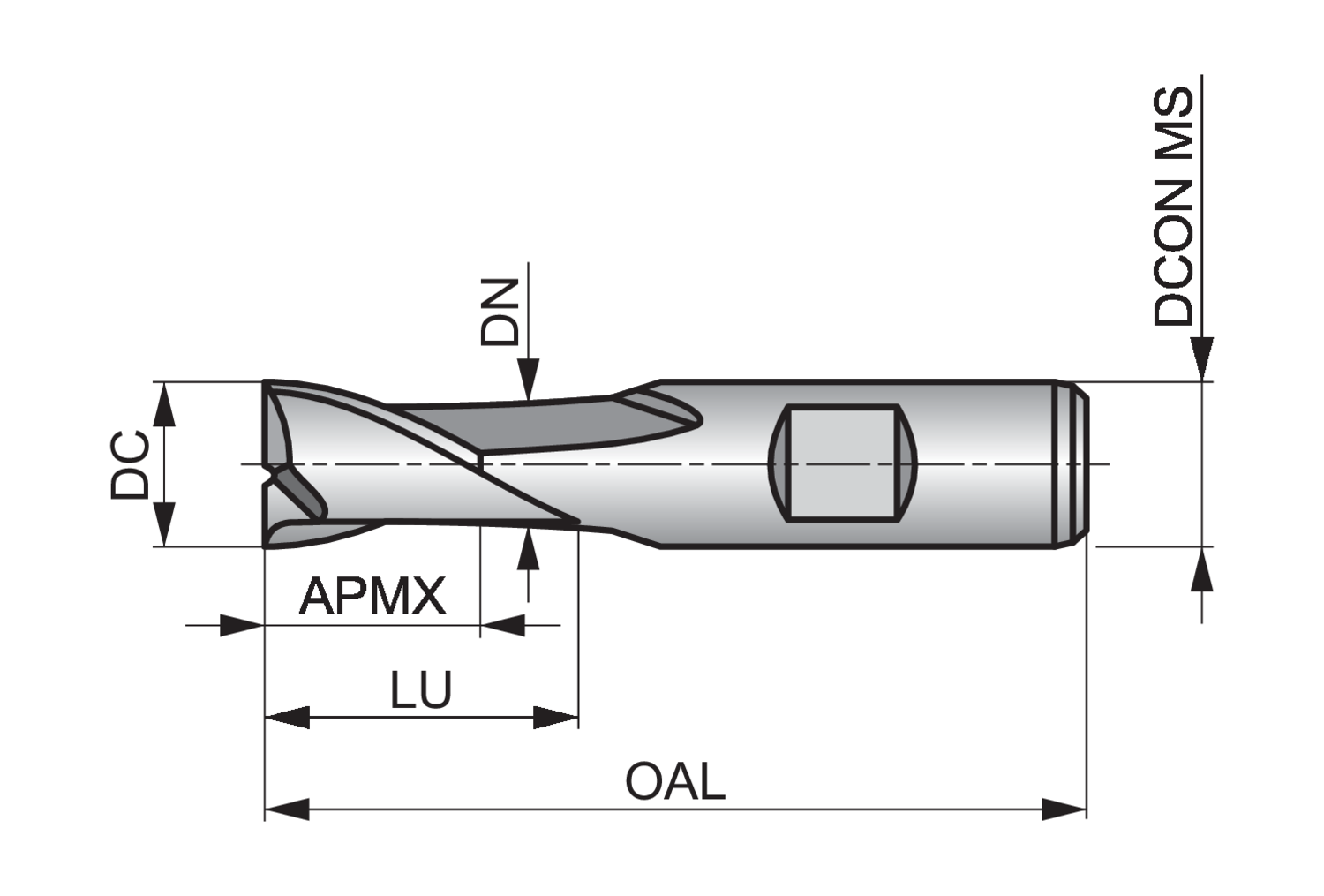

Cutting diameter – fractional inch (DC): 3/4
Cutting diameter – millimeter (DC): 19.05 mm
Connection diameter – millimeter (DCON MS): 20 mm
Depth of cut maximum – millimeter (APMX): 22 mm
Overall length – millimeter (OAL): 88 mm
Flute count (NOF): 2
Usable Length – millimeter (LU): 37.5 mm
Neck diameter – millimeter (DN): 19.5 mm
Radial rake angle (GAMF): 12
With Neck: Yes
ISO: C1103/4

Brand

DORMER
