DORMER C1103.8 HSCO Cutters

Product Code: C1103.8

$38.29$34.81 Ex. GST

Product Code: C1103.8 SKU C1103.8 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

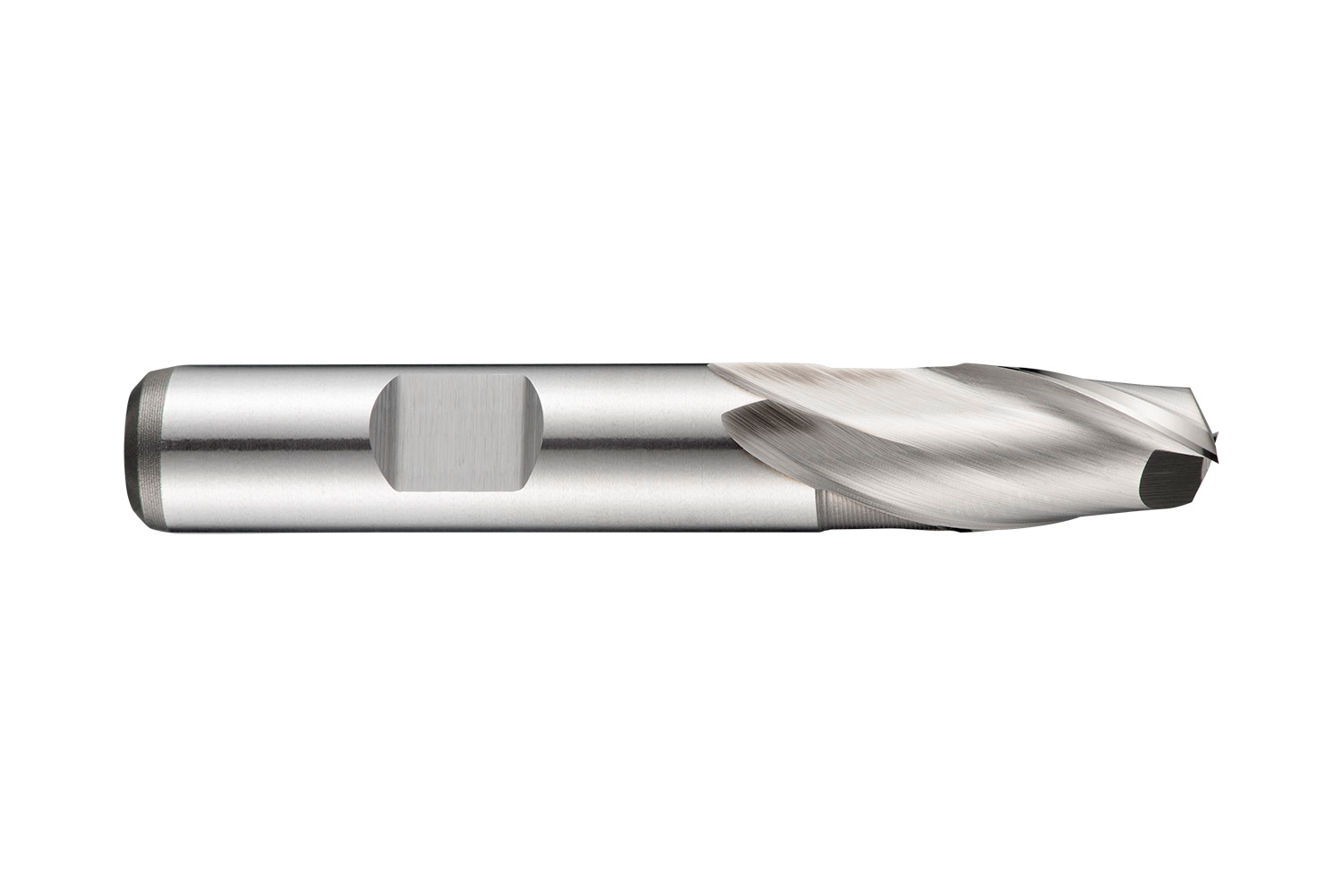

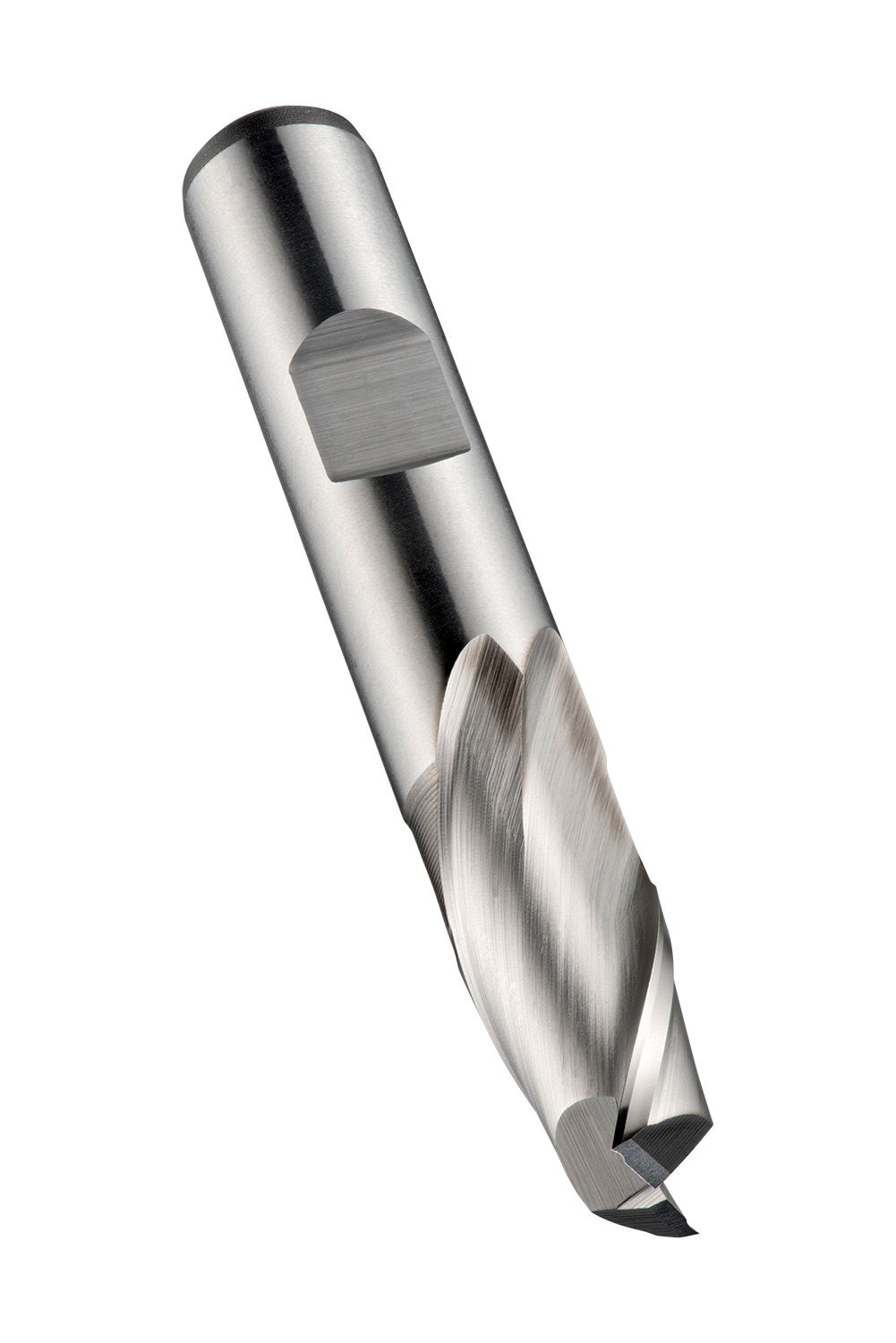

Extra short series slot drill with 2 flutes, diameter 3.8mm with 7mm length of cut and 51mm overall length, according to DIN 327 D standard with a 6mm Weldon shank, powder metallurgical HSS-E with bright finish, 30° helix and 12° rake angle for shoulder milling, slot milling and ramping in free machining steel and copper or copper alloys

Additional information

Weight 0.0372 kg
Dimensions Length 5.1cm x Width cm x Depth cm
barcode
Additional Information

Description: Value
EAN number: 7320760353394
Product number (SAP): 86013357
Ordering code ANSI: C1103.8
Gross weight – grams: 12

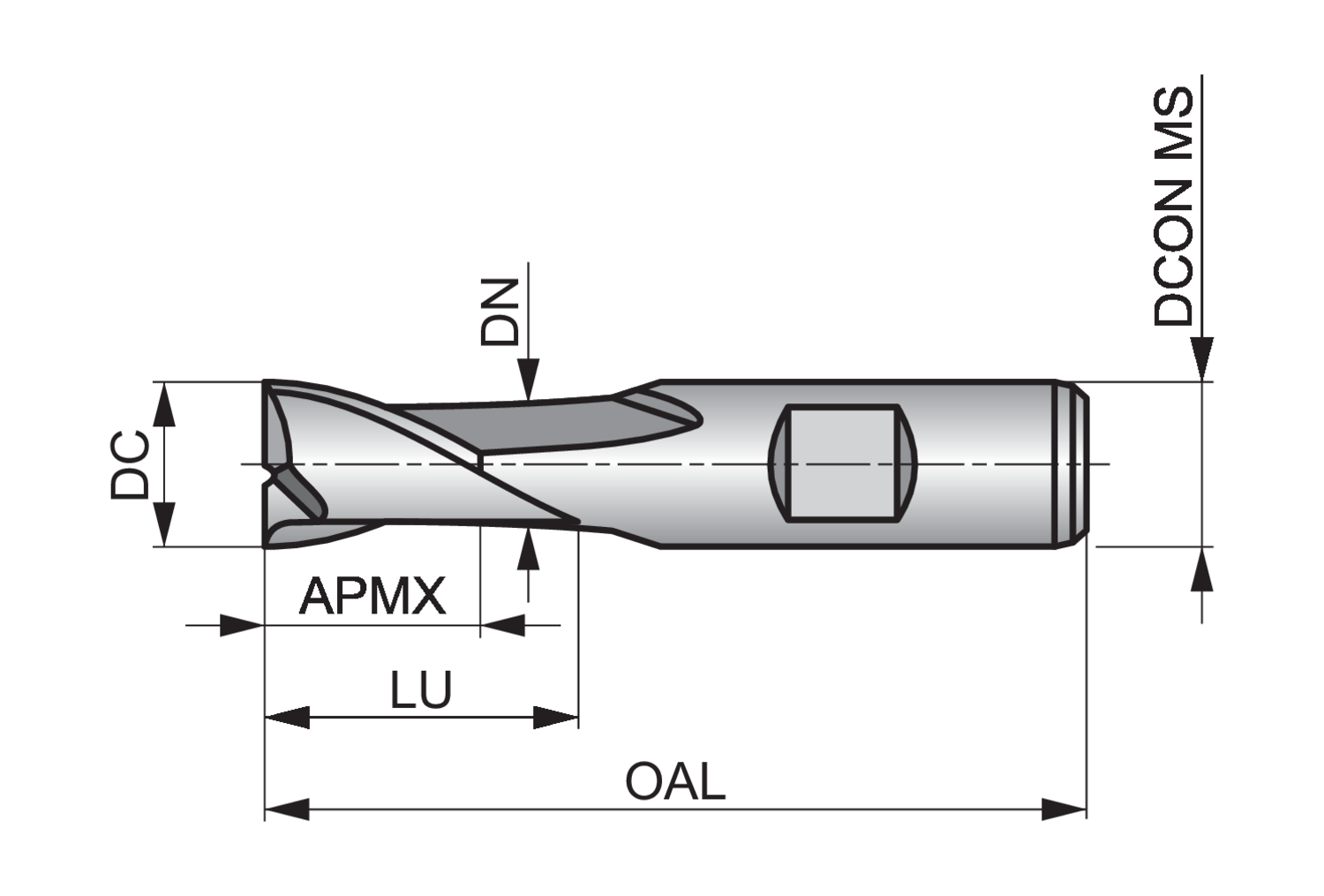

Cutting diameter – millimeter (DC): 3.8 mm
Connection diameter – millimeter (DCON MS): 6 mm
Depth of cut maximum – millimeter (APMX): 7 mm
Overall length – millimeter (OAL): 51 mm
Flute count (NOF): 2
Neck diameter – millimeter (DN): 4 mm
Radial rake angle (GAMF): 12
With Neck: Yes
ISO: C1103.8

Brand

DORMER
