DORMER C1105/16 HSCO Cutters

Product Code: C1105/16

$67.98$61.80 Ex. GST

Product Code: C1105/16 SKU C1105/16 Categories , ,

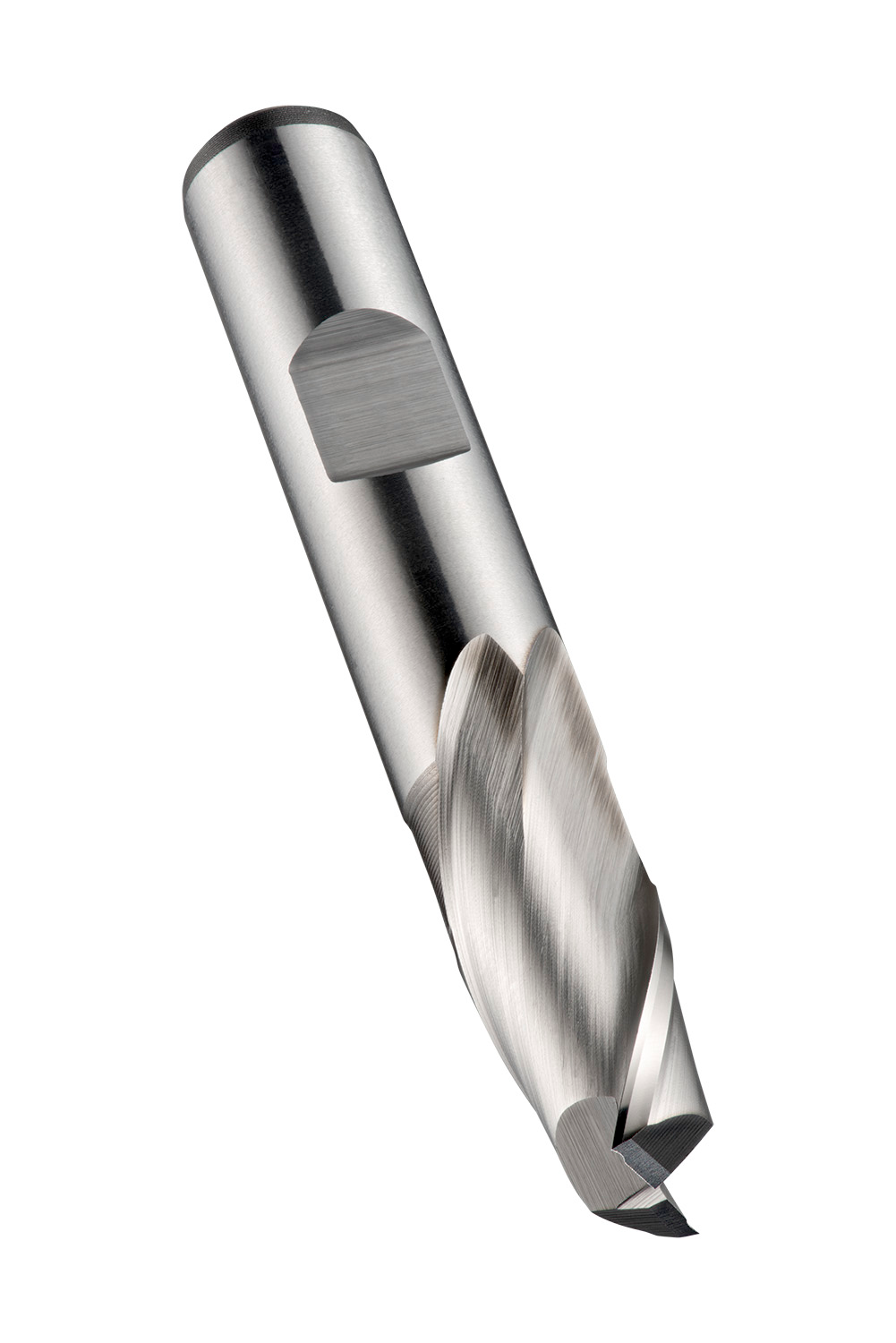

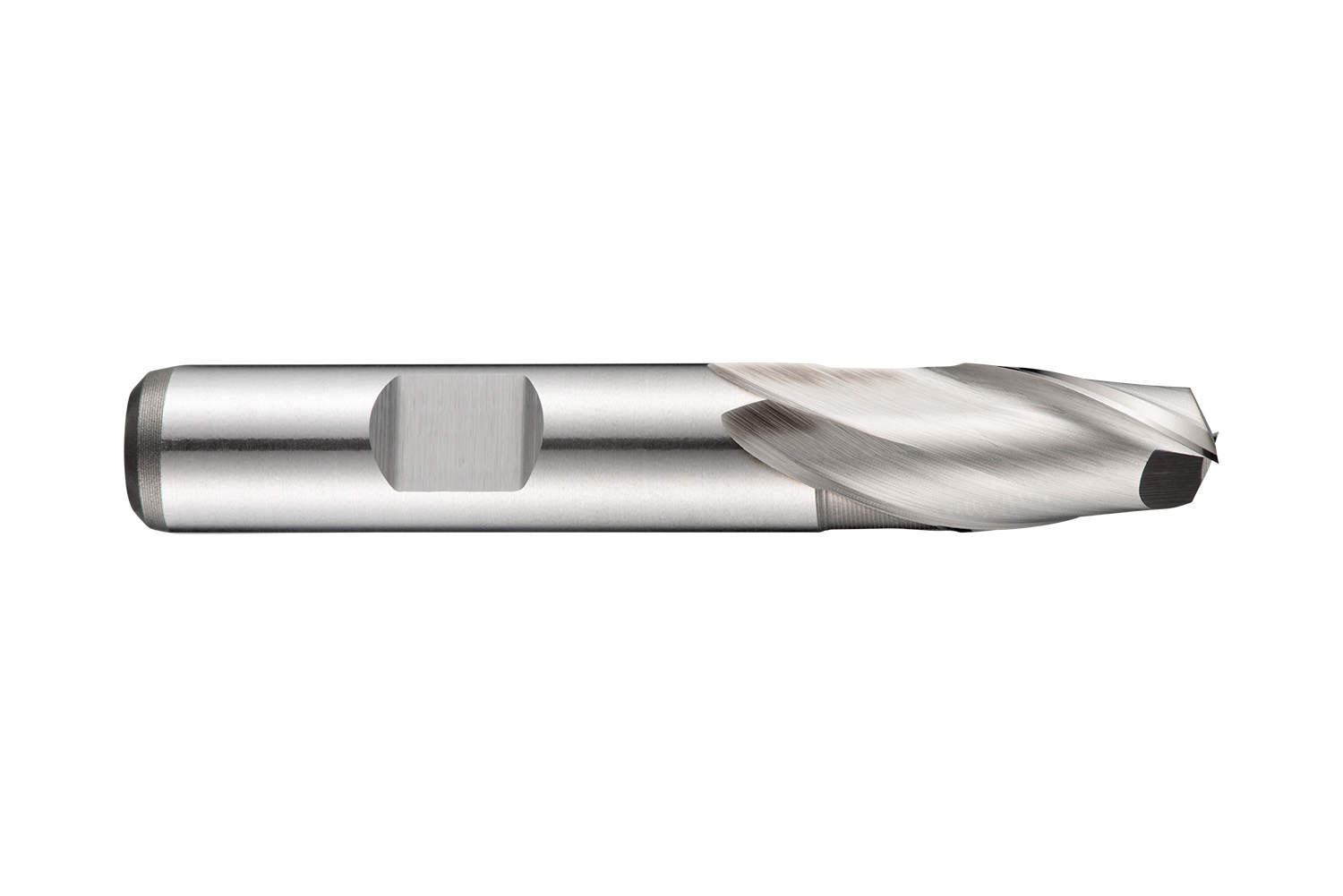

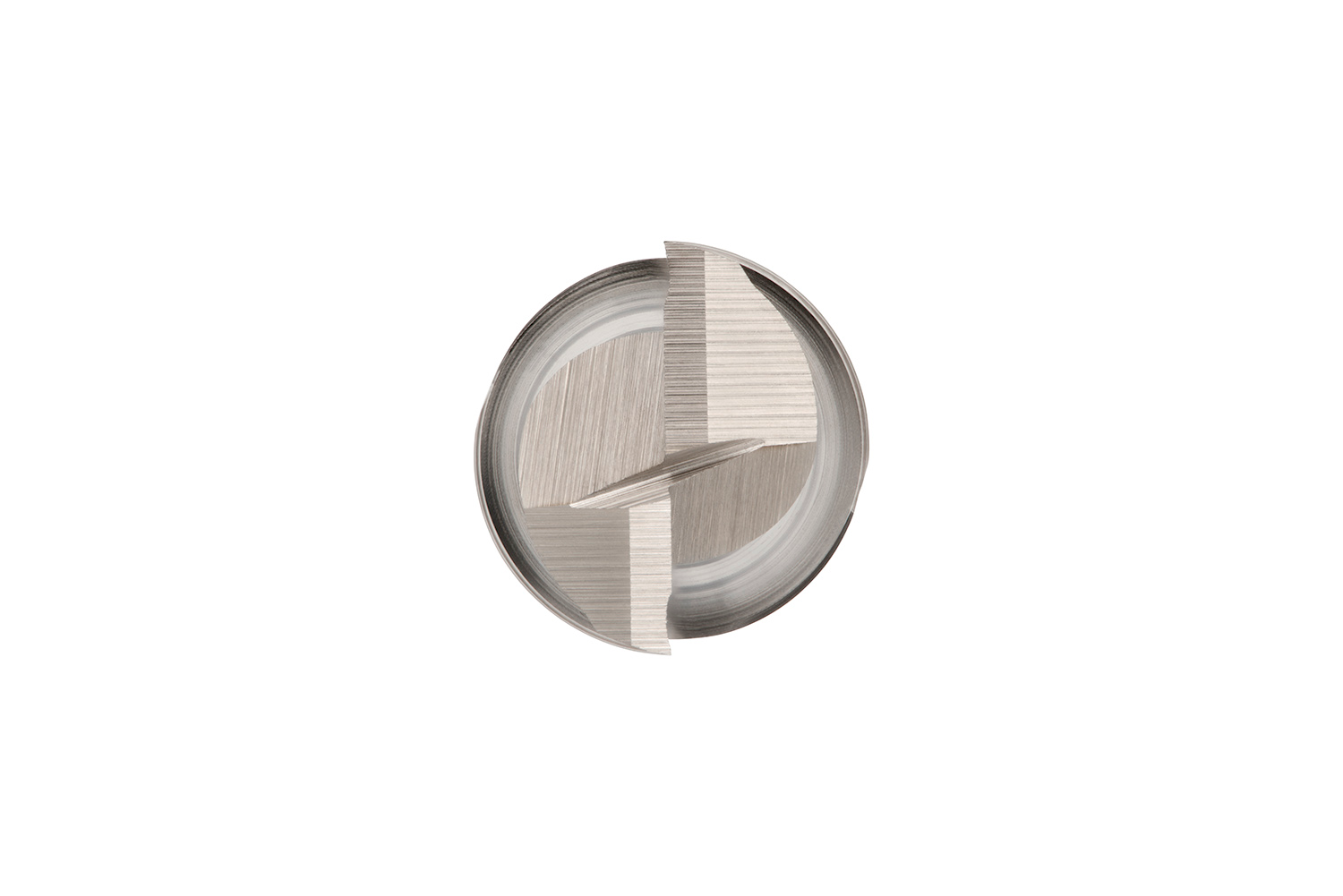

DORMER C1105/16 HSCO Cutters

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

Extra short series slot drill with 2 flutes, diameter 5/16″ with 11mm length of cut and 61mm overall length, according to DIN 327 D standard with a 10mm Weldon shank, powder metallurgical HSS-E with bright finish, 30° helix and 12° rake angle for shoulder milling, slot milling and ramping in free machining steel and copper or copper alloys

Additional information

Weight 0.0660 kg
Dimensions Length 6.1cm x Width cm x Depth cm
barcode
Additional Information

Description: Value
EAN number: 7320760639849
Product number (SAP): 86013374
Ordering code ANSI: C1105/16
Gross weight – grams: 34.6

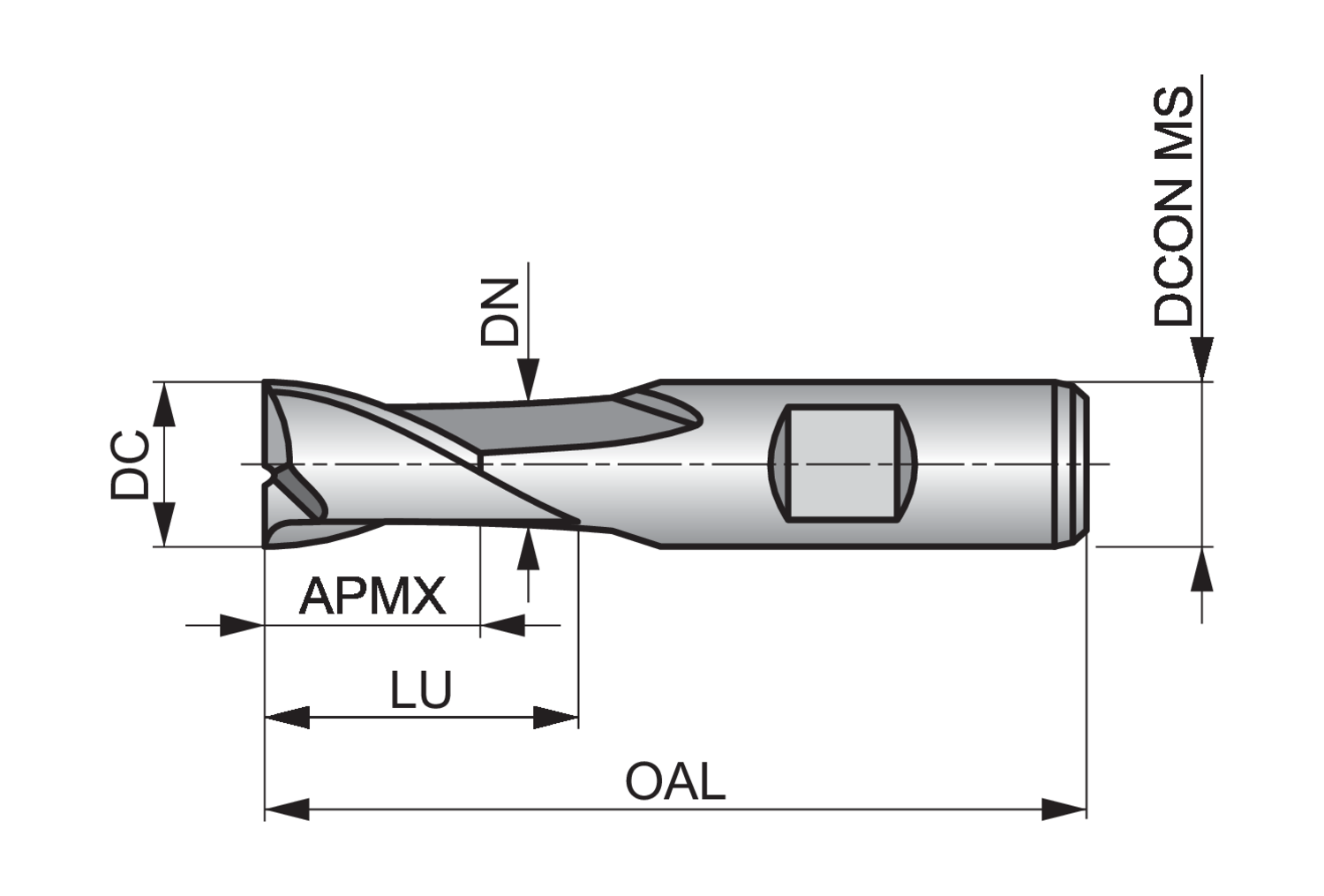

Cutting diameter – fractional inch (DC): 5/16
Cutting diameter – millimeter (DC): 7.94 mm
Connection diameter – millimeter (DCON MS): 10 mm
Depth of cut maximum – millimeter (APMX): 11 mm
Overall length – millimeter (OAL): 61 mm
Flute count (NOF): 2
Neck diameter – millimeter (DN): 7.94 mm
Radial rake angle (GAMF): 12
With Neck: Yes
ISO: C1105/16

Brand

DORMER
